Description
Core Product Summary (Brand / Model / Key Attributes)
The Honeywell DC1020CL is a 1/8 DIN (48 × 96 mm) general-purpose digital controller from the DC1000 series. It is a microprocessor-based unit designed for precise regulation of temperature and other process variables using linear input signals.
The controller accepts linear inputs such as 4–20 mA, 0–20 mA, 0–5 V, 0–10 V, 1–5 V and 2–10 V. It supports PID or ON/OFF control, heat/cool algorithms with two independent PID sets, motor-position control without slidewire feedback, and phase-angle or zero-crossover power control. Dual 4-digit LED displays and a 10-segment bargraph provide clear process-value and setpoint indication. Universal 85–265 V AC power, auto-tuning, multi-segment setpoint programming, and optional communications complete the feature set.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product type | General-purpose digital controller |
| Series | DC1000 |
| Panel size | 1/8 DIN, 48 × 96 mm |
| Input type | Linear (4–20 mA, 0–20 mA, 0–5 V, 0–10 V, 1–5 V, 2–10 V) |
| Control algorithms | PID, ON/OFF, Heat/Cool (2 PID sets), Motor position, Phase Angle, Zero Crossover |
| Indication accuracy | ±0.2 % of full scale |
| Sampling time (PV) | 250 ms |
| Display | Dual 4-digit 7-segment LED + 10 LED bargraph |
| Power supply | 85–265 V AC, 50/60 Hz (optional 24 V DC) |
| Power consumption | 8 VA (110 V), 12 VA (220 V) |
| Ambient temperature | –20 °C to +65 °C |
| Operating temperature | 0 °C to +50 °C |
| Relative humidity | 50–85 % RH (non-condensing) |
| Approvals | UL, CE |
Detailed Product Overview
The Honeywell DC1020CL belongs to the DC1000 family of microprocessor-based digital controllers. Configured for linear process inputs, it is intended for panel mounting in industrial applications that require accurate regulation of temperature, humidity, pressure, flow or similar variables.
Process signals are digitised and processed by a dedicated microprocessor that executes selectable control algorithms. Standard options include conventional PID or ON/OFF control, dual-PID heat/cool strategies, open-loop motor-position control (time-proportional without slidewire feedback), and phase-angle or zero-crossover firing for SCR/thyristor loads. Auto-tuning automatically determines suitable PID parameters for the connected process.
Operator interface consists of two large 4-digit LED displays (process value and setpoint) plus a 10-segment bargraph that shows output percentage. Status LEDs indicate control outputs, alarms, auto/manual mode and programmer activity. Configuration is performed through a two-level menu structure protected by a security code; unused parameters can be hidden to simplify operator access.
Setpoint programming supports multiple profiles (up to 18 programs of 8 segments each, linkable to 144 segments total). Alarm capability extends to three independent outputs with a wide selection of deviation, band, absolute, program-end and timer modes. Optional remote setpoint input and RS-232/RS-485 Modbus communications allow integration into larger supervisory systems.
The unit operates from a universal 85–265 V AC supply (or optional 24 V DC) and is designed for ambient temperatures from –20 °C to +65 °C. Front-panel sealing provides environmental protection when correctly installed. Exact output hardware (relay, current, voltage or motor-drive) is determined by the full order code suffix appended to the base DC1020CL designation.

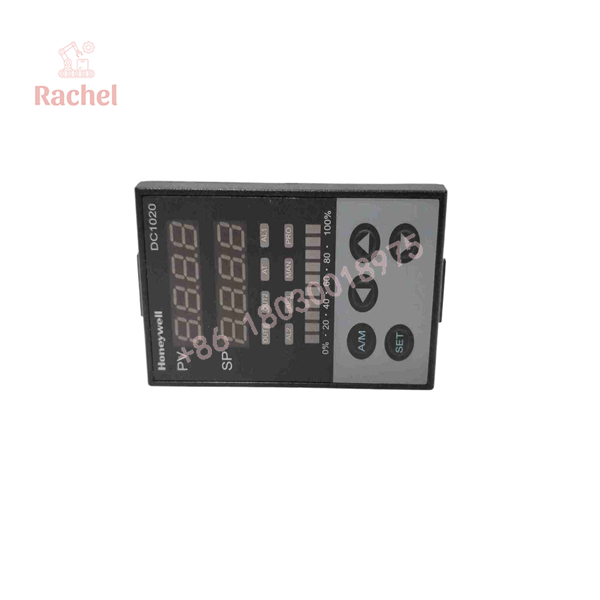

DC1020CL

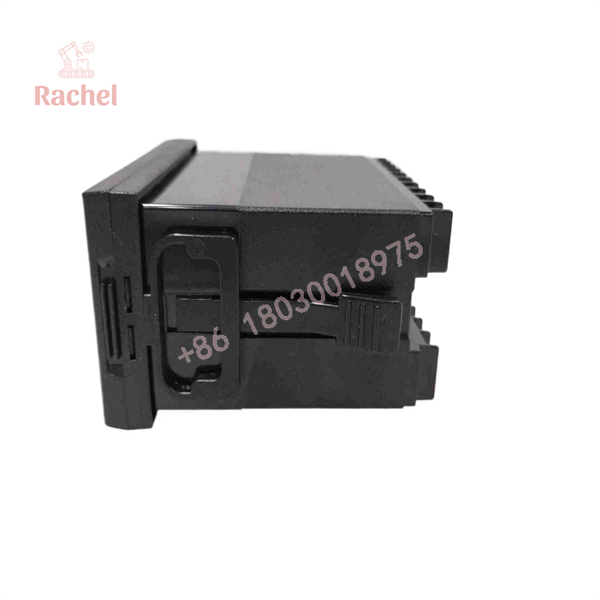

DC1020CL
Engineering Selection Highlights
- 1/8 DIN (48 × 96 mm) form factor fits standard panel cut-outs used for process controllers.
- Linear input configuration accepts common analogue process signals without additional converters.
- Dual independent PID sets enable heat/cool or complex multi-loop strategies within a single instrument.
- Auto-tuning reduces commissioning time by calculating PID parameters from process response.
- Multi-segment setpoint programmer supports recipe-style temperature or process profiles.
- Universal AC power supply simplifies inventory and installation across different voltage regions.
- Optional Modbus communications allow remote monitoring and parameter changes from a host system.
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
|---|---|---|
| Panel mounting | 1/8 DIN cut-out (approx. 45.5 × 91 mm) | Use supplied mounting brackets |
| Power supply | 85–265 V AC 50/60 Hz or optional 24 V DC | Observe polarity and local wiring codes |
| Process input | Linear current or voltage signals | Match sensor range to selected input type |
| Control output | Determined by full order code (relay, mA, voltage, motor) | Confirm suffix before ordering |
| Communications (optional) | RS-232 or RS-485 Modbus RTU/ASCII | Up to 30 devices per host network |
| Remote setpoint (optional) | Second analogue input | 500 ms sampling time |
Dimensions, Mounting & Connection Notes
The DC1020CL measures 48 mm wide by 96 mm high (1/8 DIN). Mounting depth is approximately 74–97 mm depending on connector arrangement. The unit is secured in a panel cut-out with the supplied mounting brackets. Front-face sealing is designed for IP65 protection when the panel gasket is correctly fitted. All field wiring (power, input, outputs and optional communications) terminates on rear screw terminals; exact terminal assignments depend on the selected output and option configuration and are shown on the unit label and in the product manual.
FAQ
What is the Honeywell DC1020CL?
It is a 1/8 DIN general-purpose digital process controller from the Honeywell DC1000 series configured for linear inputs.
What panel size does it use?
48 × 96 mm (1/8 DIN).
What input signals does the DC1020CL accept?
Linear signals including 4–20 mA, 0–20 mA, 0–5 V, 0–10 V, 1–5 V and 2–10 V.
Which control algorithms are available?
PID, ON/OFF, heat/cool with two PID sets, motor-position control, phase-angle control and zero-crossover control.
Does it support auto-tuning?
Yes, the controller includes an auto-tuning function that calculates PID parameters from the process response.
What power supply is required?
Universal 85–265 V AC, 50/60 Hz (optional 24 V DC versions are available).
Are communications available?
Optional RS-232 or RS-485 interfaces supporting Modbus RTU and ASCII protocols can be ordered.
Verification & Troubleshooting Notes
Verify the full order code (including output and option suffixes) matches the required hardware configuration before installation. Confirm correct wiring of power, process input and control outputs according to the terminal diagram on the unit and in the product manual. After power-up, check that the dual displays show plausible process and setpoint values and that status LEDs respond to output and alarm activity. Incorrect input-type selection or open sensor connections will typically produce an error indication on the display. Parameter changes are protected by a security code; ensure the code is known before attempting configuration. For persistent faults, refer to the error-code table in the Honeywell DC1000 series product manual.
