Description
Core Product Summary
The HONEYWELL FC-SAI-1620M is a conformal-coated, high-density analog input module for the Honeywell Safety Manager platform. It provides 16 safety-related analog input channels, each designed to accept a 0–4 V signal, with an external voltage readback input covering the same range. The module’s 16 channels are specified for SIL 3 applications in accordance with IEC 61508, subject to the applicable system design and certification conditions.
The module interfaces with field signals through compatible field termination or signal-conversion hardware. Standard 0–20 mA field signals require conversion to the voltage range accepted by the SAI-1620m. Before selecting a replacement, verify the installed revision, termination assembly, conversion method, and Safety Manager configuration.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model | FC-SAI-1620M |
| Product type | Safe high-density analog input module |
| System family | Honeywell Safety Manager |
| Channel count | 16 analog input channels |
| Analog input range | 0–4 V nominal; 0–4.1 V specified in detailed module data |
| External voltage readback | 0–4.1 V |
| A/D converter | 12-bit |
| A/D converter inaccuracy | ±1 LSB |
| Module inaccuracy | Less than 0.25% |
| Input resistance | Greater than 1 MΩ |
| Absolute maximum input signal | ±36 V DC |
| Crosstalk between channels | Greater than 60 dB, as stated in published module data |
| Safety classification | SIL 3 capability under applicable IEC 61508 conditions |
| Coating | Conformal coated |
| 5 V DC supply current | 35 mA |
| 24 V DC supply current | 35 mA |
| Module space requirement | 4 TE × 3 HE |
| Module connector coding | A5, C25, as listed in module data |
| Chassis connector coding | Large pins A5, C25, as listed in module data |
| Approvals listed in module documentation | CE, TÜV, UL, CSA, FM |
Note: The input range is reported as 0–4 V in Honeywell’s descriptive text and 0–4.1 V in detailed technical listings. Confirm the applicable hardware-reference revision for engineering calculations. The FC prefix identifies the conformal-coated variant.
Engineering Selection Highlights
- 16 safety-related analog channels: Supports high-density signal acquisition within a Safety Manager I/O architecture.
- Defined voltage input range: Accepts low-level analog voltage signals rather than directly accepting an unconditioned 4–20 mA current loop.
- 12-bit conversion: Converts input voltage into digital values for use by the controller’s application logic.
- High input impedance: Published module data specifies input resistance greater than 1 MΩ.
- Conformal coating: The FC version is the conformal-coated variant, distinguished from non-coated FS-family hardware.
- External voltage readback: Includes a dedicated 0–4.1 V readback input for compatible system applications.
- Built-in diagnostics: The Safety Manager controller performs module self-tests covering absolute accuracy, conversion behavior, channel crosstalk, input filters, and internal supply voltages.
- Safety-system integration: Designed for use within a compatible Safety Manager configuration; system-level SIL capability depends on the complete safety loop and approved implementation.

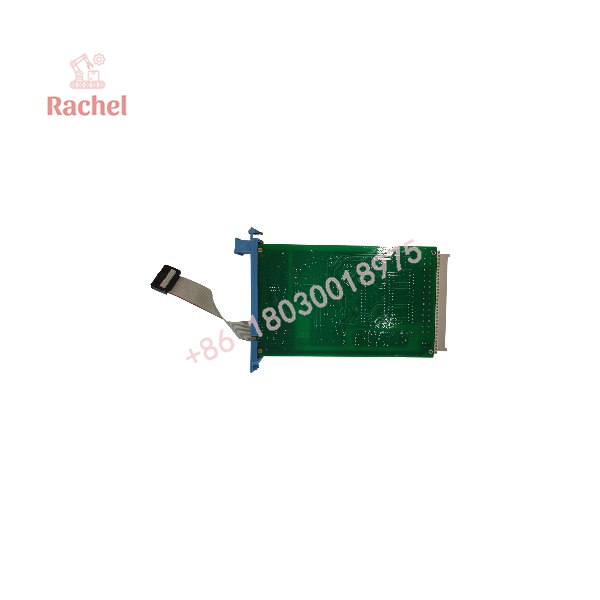

FC-SAI-1620M

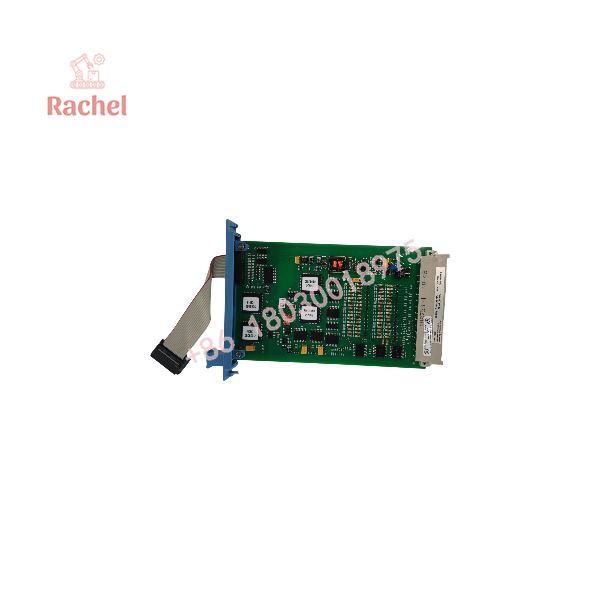

FC-SAI-1620M
System Compatibility & Integration Requirements
The FC-SAI-1620M belongs to the Honeywell Safety Manager I/O family. It requires compatible termination and signal-conversion hardware for connecting field devices to its voltage-input channels.
| Integration item | Requirement |
|---|---|
| Controller platform | Compatible Honeywell Safety Manager system |
| Field termination | Compatible TSAI-1620m, TSHART-1620m, TSGAS-1624, or TSFIRE-1624 assembly, as appropriate to the application |
| Alternative conversion method | BSAI-1620mE analog input conversion module |
| Current-loop signals | Convert 0–20 mA field signals to the module’s accepted voltage range |
| Thermocouple and RTD signals | Use an appropriate dedicated converter to produce a supported 0–20 mA or 4–20 mA signal, together with compatible conversion hardware |
| I/O backplane | Verify module and chassis connector coding |
| Software and configuration | Confirm compatibility with the installed Safety Manager release and project configuration |
Before replacement, check the exact module revision and the associated field termination assembly. A similar channel count or nominal signal type does not guarantee compatibility.
Dimensions, Mounting & Connection Notes
Published third-party listings give differing dimensions for the FC-SAI-1620M. A consistent, independently verified dimensional drawing for the exact revision was not established, so dimensional values should be confirmed against the relevant Honeywell hardware reference.
Important installation considerations:
- Verify the module’s physical fit and designated slot in the Safety Manager I/O chassis.
- Confirm the module connector and chassis connector coding before insertion.
- Match the field termination assembly and system interconnect cable to the installed configuration.
- Ensure that field signals are converted to the required voltage range before reaching the module inputs.
- Use appropriate electrostatic-discharge precautions when handling the circuit board.
- Follow the approved isolation, replacement, and commissioning procedures for the safety system.
- Review diagnostic status and input readings after installation.
Do not connect a 4–20 mA loop directly to the 0–4 V input without the specified conversion arrangement.
Detailed Product Overview
Analog Input Architecture
The FC-SAI-1620M provides 16 analog input channels, each designed for a low-voltage input signal. An external voltage readback input is also provided. Its 12-bit analog-to-digital converter translates the input signal into a digital representation for the Safety Manager controller.
The published detailed specifications include an input resistance greater than 1 MΩ and module inaccuracy below 0.25%. These characteristics should be evaluated alongside the accuracy and calibration requirements of the complete measurement loop.
Field Signal Conversion
The module’s voltage-input architecture means field signals often need conditioning before connection. The Honeywell hardware reference identifies compatible field termination assemblies, including TSAI-1620m and TSHART-1620m, as well as application-specific assemblies such as TSGAS-1624 and TSFIRE-1624. The BSAI-1620mE provides an alternative conversion arrangement on the I/O backplane’s programming connector in the specified chassis configuration.
Thermocouple and PT100 RTD signals require a dedicated converter to generate a supported current signal before being converted for the module. Selection should account for the sensor type, signal range, isolation requirements, and intended application.
Safety and Diagnostic Functions
Honeywell identifies the 16 input channels as safe channels with SIL 3 capability under IEC 61508. This is a property of the module’s documented safety application, not a blanket guarantee that any installation using the module achieves SIL 3. The complete safety function must meet its design, configuration, verification, and certification requirements.
The Safety Manager controller performs module self-tests that cover absolute accuracy, conversion across the range, crosstalk, input filtering, and internal supply voltages. These checks support fault detection and maintenance diagnosis.
Conformal-Coated Construction
The FC designation identifies the conformal-coated version of the SAI-1620m module. This distinguishes it from the corresponding non-conformal-coated FS version. When replacing an installed unit, verify whether the application requires the FC coating variant rather than selecting solely by channel count or function.
Replacement and Maintenance Considerations
Before ordering a replacement, record the complete part number and revision markings. Confirm the chassis connector coding, field termination assembly, conversion hardware, and Safety Manager configuration. After installation, validate channel readings, module diagnostics, and the associated safety function using the approved site procedures.
These checks reduce the risk of signal-range errors, connector mismatches, and configuration problems during maintenance.
Applications & System Role
The FC-SAI-1620M is used for safety-related analog signal acquisition in Honeywell Safety Manager systems.
Typical application contexts include:
- Process-variable monitoring in safety-instrumented systems.
- Acquisition of conditioned analog signals from pressure, level, flow, or temperature measurement equipment.
- Industrial process shutdown and protection systems.
- Safety-related monitoring of field transmitters through compatible signal conditioning.
- High-density I/O installations where multiple analog channels must be integrated into a single module.
- Maintenance and replacement of conformal-coated Safety Manager input modules.
Thermocouples, RTDs, and current-loop transmitters require appropriate signal conversion and termination hardware; the module should not be treated as a universal direct-input interface for all sensor types.
Frequently Asked Questions
Q1: What is the HONEYWELL FC-SAI-1620M?
It is a conformal-coated, 16-channel safe high-density analog input module designed for Honeywell Safety Manager systems.
Q2: How many input channels does it provide?
It provides 16 analog input channels and an external voltage readback input.
Q3: What is the analog input range?
The module is described as accepting 0–4 V inputs, while detailed technical listings specify 0–4.1 V. Check the applicable hardware-reference revision for the exact operating range.
Q4: Can it accept a 4–20 mA signal directly?
No. The field current signal must be converted to a voltage appropriate for the module through compatible termination or conversion hardware.
Q5: Can thermocouples and RTDs be connected directly?
They require dedicated signal conversion to a supported current range and compatible termination/conversion hardware.
Q6: What does the FC designation mean?
It identifies the conformal-coated variant of the SAI-1620m module family.
Q7: Is the module suitable for SIL 3 applications?
The module’s 16 channels are documented for SIL 3 applications under IEC 61508. The achieved safety integrity level depends on the complete safety function and approved system implementation.
Q8: What should be checked before replacing an FC-SAI-1620M?
Verify the complete model and revision, connector coding, chassis compatibility, field termination assembly, signal conversion method, input range, and Safety Manager configuration.
