Core Product Summary (Brand / Model / Key Attributes)
Honeywell FE-USI-0002 is a conformal-coated Universal Safety Interface (USI) module for the Honeywell Safety Manager safety instrumented system. It provides communication interfacing between the Safety Manager controller and external systems, including Experion PKS.
The module provides two 10/100 Mbit/s Ethernet channels and two universal serial communication channels configurable as RS-232 or RS-485. It supports the EUCN protocol and includes a hardware firewall function. The FE-USI-0002 is powered from the Safety Manager backplane, mounts in a Safety Manager chassis, and is identified as revision 10, Universal Safety Interface MMEM CC, EUCN.
Key Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Honeywell |
| Model | FE-USI-0002 |
| Product type | Universal Safety Interface (USI) communication module |
| System family | Honeywell Safety Manager |
| Communication protocol | EUCN |
| Ethernet channels | 2 × 10/100 Mbit/s |
| Serial channels | 2 universal serial channels |
| Serial interface options | RS-232 or RS-485 |
| Security function | Hardware firewall |
| System connection | Safety Manager backplane |
| Power supply | Supplied through the Safety Manager backplane |
| Revision identification | Revision 10 |
| Product description | Universal Safety Interface MMEM CC, EUCN |
| Coating | Conformal coated |
| External-system interfacing | Supports interconnection with systems including Experion PKS |
Detailed Product Overview
The Honeywell FE-USI-0002 is the Universal Safety Interface module used in Safety Manager installations to provide controlled communication between the safety controller and external systems. Rather than processing field I/O, it functions as a communication interface, linking the Safety Manager controller architecture to networks and systems such as Experion PKS.
The module provides two 10/100 Mbit/s Ethernet channels and two universal serial channels. The serial channels can be configured as RS-232 or RS-485, allowing the module to support both modern Ethernet-based integration and serial communication requirements. Its EUCN protocol support and hardware firewall function define its role as a controlled boundary between the Safety Manager system and external communication networks.
The FE-USI-0002 is a conformal-coated module, identified in Honeywell documentation as Universal Safety Interface MMEM CC, EUCN at revision 10. It receives power through the Safety Manager backplane and mounts in a Safety Manager chassis, so its integration depends on the chassis, backplane, and Safety Manager software configuration rather than on a separate field-power connection.
Because the module is part of the safety-system communication architecture, its configuration and network connections should be treated as safety-system interfaces. Honeywell documentation identifies the USI-0002 as providing Ethernet and universal serial communication with a hardware firewall function, supporting interconnection with systems including Experion PKS.
-

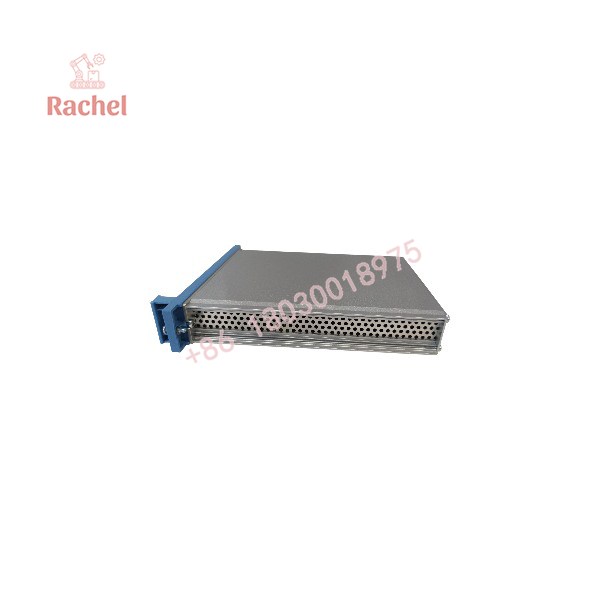

FE-USI-0002

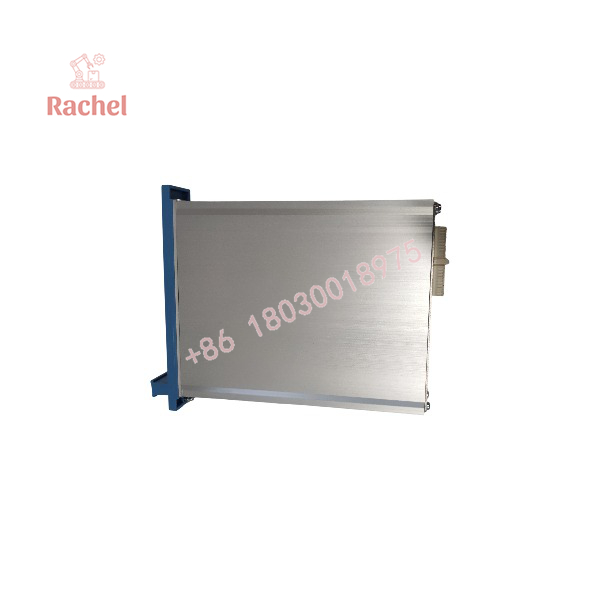

FE-USI-0002
Engineering Selection Highlights
- The FE-USI-0002 is a Safety Manager communication interface, so it is selected when the application requires EUCN-based integration rather than additional field I/O capacity.
- Its two 10/100 Mbit/s Ethernet ports support Ethernet communication paths to external systems, including Experion PKS.
- Its two universal serial ports can be configured as RS-232 or RS-485, providing flexibility for serial-device or legacy-system integration.
- The hardware firewall function is relevant when the Safety Manager network boundary must be controlled between the safety system and external networks.
- The module is conformal coated, distinguishing it from non-coated USI variants and making coating requirements a procurement check.
- It is powered and mounted through the Safety Manager backplane and chassis, so chassis slot planning and software configuration are required.
- The FE-USI-0002 revision and Safety Manager software release should be checked together before installation or replacement.
Dimensions, Mounting & Connection Notes
| Item | Verified requirement |
|---|---|
| Mounting location | Safety Manager chassis |
| Power connection | Safety Manager backplane |
| Ethernet connections | Two 10/100 Mbit/s channels |
| Serial connections | Two universal serial channels, configurable as RS-232 or RS-485 |
| Protocol | EUCN |
| Security function | Hardware firewall |
| Coating | Conformal coated |
| Revision identification | Revision 10 |
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
|---|---|---|
| Safety system | Honeywell Safety Manager | The FE-USI-0002 is a Safety Manager Universal Safety Interface module. |
| External system | Experion PKS | The module supports interconnection with Experion PKS. |
| Communication protocol | EUCN | The module supports the EUCN protocol. |
| Ethernet interface | Two 10/100 Mbit/s channels | Used for Ethernet-based communication paths. |
| Serial interface | Two universal serial channels, RS-232 or RS-485 | Configure the required serial standard for the connected device or system. |
| Network security | Hardware firewall function | Treat the module as part of the Safety Manager network boundary. |
| Power and mounting | Safety Manager backplane and chassis | The module is powered through the backplane and installed in a Safety Manager chassis. |
| Software configuration | Safety Manager engineering environment | Communication and interface configuration must match the Safety Manager system configuration. |
FAQ
What is the Honeywell FE-USI-0002?
It is a Honeywell conformal-coated Universal Safety Interface module for the Safety Manager safety instrumented system.
What communication interfaces does the FE-USI-0002 provide?
It provides two 10/100 Mbit/s Ethernet channels and two universal serial channels that can be configured as RS-232 or RS-485.
Which protocol does it support?
It supports the EUCN protocol.
Can it connect to Experion PKS?
Yes. Honeywell documentation identifies the USI-0002 as supporting interconnection with systems including Experion PKS.
Does it include network-security functionality?
Yes. The module includes a hardware firewall function.
How is the FE-USI-0002 powered and mounted?
It is powered through the Safety Manager backplane and mounts in a Safety Manager chassis.
What does the FC/FE prefix indicate?
The FE-USI-0002 is identified as a conformal-coated Universal Safety Interface module.
Verification & Troubleshooting Notes
- Confirm the complete module designation, FE-USI-0002, and its revision before matching it to a Safety Manager chassis configuration or spare-parts record.
- Verify that the module is correctly seated in its Safety Manager chassis slot and that the backplane connection is secure before diagnosing communication loss.
- Check that the EUCN configuration, Ethernet addressing, and serial-interface settings in the Safety Manager engineering environment match the intended external system.
- For Ethernet communication issues, inspect both 10/100 Mbit/s ports, cable integrity, network path, and firewall configuration; a network fault can affect one path without proving that the module has failed.
- For serial communication issues, confirm whether the channel is configured for RS-232 or RS-485 and verify the connected device’s protocol, wiring, and communication settings.
- Treat the hardware firewall and Safety Manager network boundaries as safety-related configuration; do not bypass firewall rules or alter network segmentation during troubleshooting.
- Use Safety Manager diagnostics and the engineering environment’s communication status information to distinguish module, backplane, cable, and external-system faults.
