Honeywell FX-USI-0002 | Universal Safety Interface Module

Description

Core Product Summary

The Honeywell FX-USI-0002 is a Universal Safety Interface (USI) module designed for Honeywell Safety Manager platforms executing Safety Instrumented System (SIS) logic. Installed within a dedicated Safety Manager rack or chassis slot, the unit functions as a high-integrity communication and system interface between the Safety Manager control logic solvers, Enhanced Universal Control Network (EUCN) architecture, and field devices. It serves as a direct, function- and pin-compatible replacement for earlier legacy modules, including the FE-USI-0002, FC-USI-0001, and FC-USI-0002.

Operating on a 5 VDC system chassis power rail with a maximum current draw of 1.2 A, the FX-USI-0002 provides the necessary isolation and high-speed processing for critical industrial processes, such as Emergency Shutdown (ESD) and Fire and Gas (F&G) monitoring. System compatibility requires Honeywell Safety Manager system release R140.1 or higher. When integrated into fault-tolerant Safety Manager cabinet configurations, the hardware supports redundant system architectures to maintain continuous process supervision during module maintenance or online replacement.

Key Technical Specifications

Detailed Product Overview

The Honeywell FX-USI-0002 Universal Safety Interface module fulfills a fundamental role within Honeywell Safety Manager environments by maintaining high-integrity communication routines between control units and higher-level networks. Industrial installations requiring continuous process monitoring—such as chemical processing, refining, offshore production, and power generation—rely on the module to process safety-critical data paths without compromising system fault tolerance.

At the architecture level, the FX-USI-0002 handles bidirectional communication signals, system diagnostics, and interface logic. Built with dual-core processing components, on-board hardware domain isolation, and non-volatile flash memory, the module separates non-safety signal paths from safety-critical execution lines. Diagnostic testing runs continuously in the background, utilizing 2oo2D internal checking mechanisms to identify hardware deviations or channel errors, preventing unannounced system failures.

The hardware form factor is engineered for standard Safety Manager chassis slots. During hardware modernizations or routine maintenance, the FX-USI-0002 serves as the standardized upgrade path for discontinued FE-USI and FC-USI series modules, maintaining identical pin connections and terminal footprints to eliminate the need for cabinet rewiring or backplane modification.

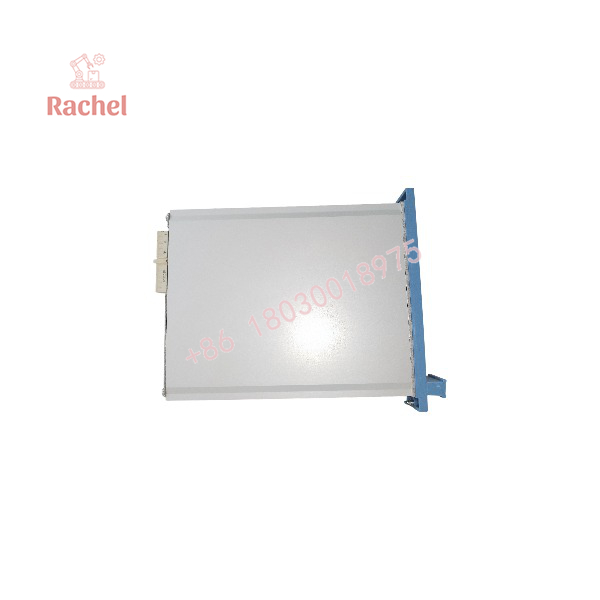

FX-USI-0002

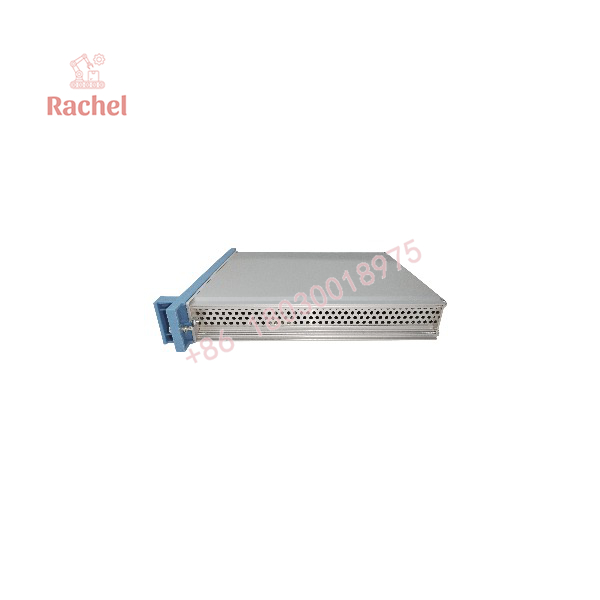

FX-USI-0002

System Compatibility & Integration Requirements

Dimensions, Mounting & Connection Notes

• Chassis Slot Insertion: Slide the module firmly into the designated Safety Manager chassis slot along the card guide alignment rails until the backplane connector fully seats and side latching mechanisms engage.
• Handling and ESD Protection: Ensure grounded wrist straps are used when inserting or removing the card to protect static-sensitive internal circuitry.
• Chassis Power Requirements: Power is delivered directly via the internal 5 VDC system backplane bus. Confirm cabinet power supply outputs maintain a stable 5 VDC rail within the specified ±5% margin prior to commissioning.
• Environmental Limits: Install within enclosed, climate-controlled industrial control cabinets that maintain ambient temperatures between -5°C and +70°C and non-condensing relative humidity below 95%.

FAQ

What is the primary function of the Honeywell FX-USI-0002?

The FX-USI-0002 is a Universal Safety Interface module designed to manage data communications and system interface tasks within Honeywell Safety Manager platforms.

Which legacy Honeywell modules can the FX-USI-0002 replace?

The FX-USI-0002 is a pin-to-pin and function-compatible replacement for the legacy FE-USI-0002, FC-USI-0001, and FC-USI-0002 interface modules.

What system software version is required for the FX-USI-0002?

The module requires Honeywell Safety Manager software release version R140.1 or higher.

What are the power requirements for the FX-USI-0002 module?

The module draws power directly from the 5 VDC chassis backplane bus, with a maximum current rating of 1.2 A.

Can the FX-USI-0002 be replaced while the system is powered?

In Safety Manager rack configurations configured for active hardware redundancy, the module supports hot-swappable replacement without interrupting ongoing safety monitoring functions.

What safety level standards apply to the FX-USI-0002?

The module is engineered and certified for deployment in Safety Instrumented Systems up to SIL 3 integrity levels in compliance with IEC 61508 / IEC 61511 standards.
