Description
Product Introduction
The HP Keysight Agilent E8491B is a C-size, single-slot VXI PC link module designed to bridge an external host PC directly to a VXIbus mainframe over a high-speed IEEE-1394 (FireWire) serial interconnect. Occupying Slot 0 of a C-size chassis, it performs all essential backplane functions, including system clock generation, bus arbitration, and resource management.
By offloading instrument control logic to the host computer, the E8491B delivers high-throughput block data transfers directly between PC memory and VXI instrument modules. It eliminates the need for expensive embedded VXI single-board computers, providing a cost-effective solution for high-speed automated test setups driven by standard desktop or industrial PCs.
Key Technical Specifications
| Parameter | Specification / Value |
| Form Factor | VXIbus C-Size, Single-Slot |
| System Role | Slot 0 Controller & VMEbus Resource Manager |
| Host Interconnect Interface | IEEE-1394a (FireWire 400) via standard 6-pin connector |
| Data Transfer Rate | Up to 400 Mbps (40 MB/s raw link bandwidth) |
| System Clock Generation | 10 MHz CLK10 backplane clock signal |
| Interrupt Handling | Full VMEbus Interrupt Handler (Levels 1–7) |
| Supported VXI Module Types | Register-based and Message-based instruments |
| Operating Power | +5V @ 2.5A, +12V @ 0.05A |
Application Scenarios & The “Trench” Experience
When an IEEE-1394 PC link card fails, the host PC suddenly loses all communication with the VXI chassis, bringing automated test routines to a grinding halt. In our field experience, field failures on the E8491B usually manifest as sudden FireWire bus reset loops or “Resource Manager Not Found” errors in VISA interactive control sessions during initial boot setup.
- Automotive ECU End-of-Line Testers – High-Speed Data Acquisition – Streams continuous analog and CAN bus telemetry from VXI digitizers directly into PC storage.
- Aerospace Flight Computer Verification – Subsystem Integration Racks – Bridges modern PC test software to legacy VXI functional measurement cards.
- Defense Radar Signal Processing – Multi-Channel RF Testing – Coordinates synchronized triggering and high-speed data capture across complex instrument arrays.
Field Replacement Case: A defense subcontractor hit a total standstill when their flight-hardware simulator lost communication with its primary VXI rack during a critical qualification run. The onboard FireWire transceiver chip on the legacy E8491B had failed due to a cable hot-plugging surge. Installing a bench-tested replacement E8491B module allowed the team to re-establish the host PC link and resume testing in under 30 minutes without modifying their test software.

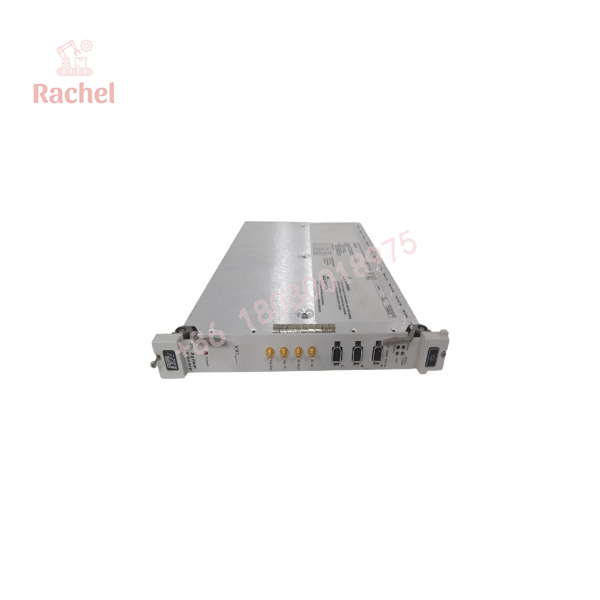

E8491B
Transparency SOP: Quality Assurance & Testing
We don’t just check for LEDs; we stress-test communication interfaces on live VXI hardware:
- Inbound Physical Inspection: Inspect edge connectors, backplane DIN pins, and the 6-pin IEEE-1394 port for physical stress or bent shield tabs.
- Backplane Power-On Self-Test: Mount the module in Slot 0 of a C-size VXI chassis to confirm power rail regulation and status LED diagnostics.
- FireWire Link Synchronization: Connect to a host PC running Keysight VISA and execute full IEEE-1394 handshake and bus enumeration tests.
- Resource Manager Execution: Run complete VXI resource manager (resman) routines to verify backplane CLK10 generation, interrupt mapping, and module discovery.
- High-Throughput Block Transfer Test: Stream large data blocks continuously between VXI memory and the host PC to verify data integrity before ESD packaging.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ FireWire Cable Hot-Plugging Hazards: Never plug or unplug the IEEE-1394 cable while either the PC or the VXI chassis is powered on. Hot-plugging FireWire cables can cause ground-potential spikes that instantly destroy the E8491B interface transceiver chip.
- ❗ Logical Address Switch Conflicts: Ensure the logical address DIP switch on the E8491B side panel is set correctly (typically set to 0 for Slot 0 operation). Setting an incorrect address will prevent the host PC VISA driver from detecting the card as the primary Resource Manager.
- ⚠️ FireWire Adapter Card Compatibility: Host PCs using modern PCI Express-to-FireWire cards must use chipset drivers that fully support legacy 1394a OHCI standards (specifically TI or VIA chipsets). Generic consumer FireWire cards often cause packet drops under high-throughput VISA transfers.
- ❗ Slot 0 Positioning: Always ensure the E8491B is installed in the leftmost slot (Slot 0) of the mainframe. Installing it in any other slot disables its backplane bus arbitration and CLK10 clock drivers, freezing the entire chassis.
Frequently Asked Questions (FAQ for Conversion)
Q: Does the E8491B require an embedded PC inside the VXI mainframe?
A: No. The primary purpose of the E8491B is to allow an external, standard desktop or rackmount PC to control the VXI chassis over an IEEE-1394 cable.
Q: Can I use the E8491B with modern Windows operating systems?
A: Yes, as long as your host PC has an IEEE-1394a interface and you install a compatible version of Keysight IO Libraries Suite (VISA) that supports FireWire VXI interfaces.
Q: What is the main difference between the E8491A and the E8491B?
A: The E8491B is an upgraded revision featuring improved IEEE-1394 PHY hardware, better thermal dissipation, and broader compatibility with high-speed host PC FireWire controllers.
Q: Is the E8491B hot-swappable in the VXI mainframe?
A: No. Removing or inserting this module while the VXI backplane is energized can cause severe electrical damage to the module and adjacent cards. Always power down the chassis first.
Q: Why buy surplus or refurbished E8491B modules instead of upgrading the system?
A: Keysight has discontinued the E8491B series. Sourcing tested surplus units is the fastest and most economical way to keep multi-million dollar ATE systems operational without re-engineering complete software frameworks.
