Description
Product Introduction

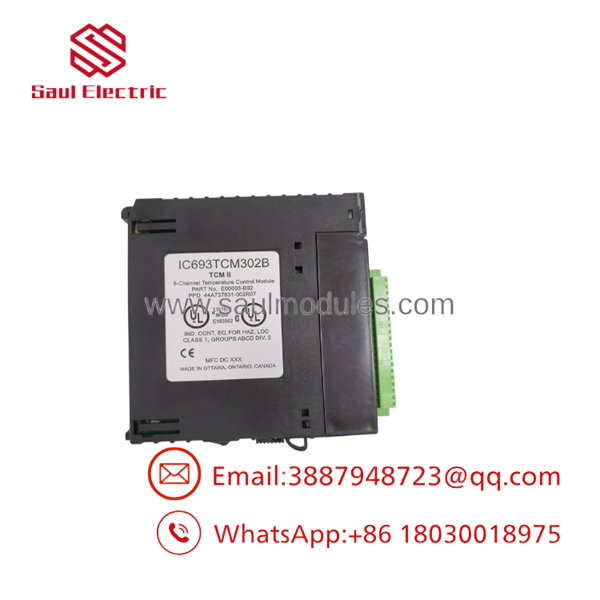

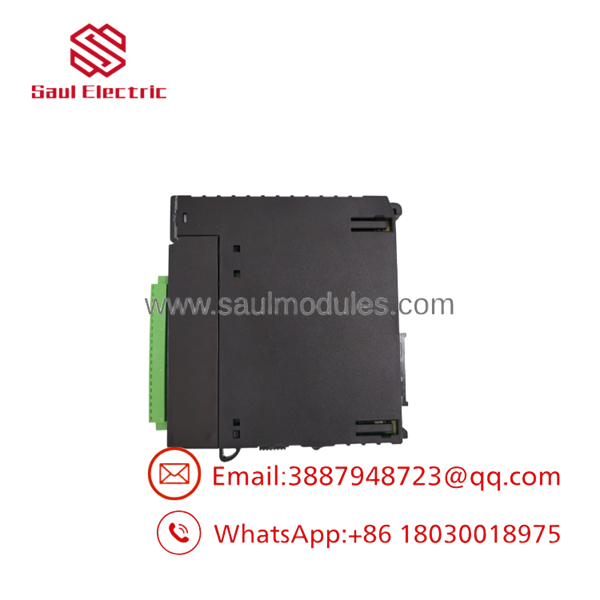

The GE Fanuc IC693TCM302B is a Series 90-30 temperature control module used for industrial heating loops, thermal zones, and process equipment that needs closed-loop temperature regulation. It combines thermocouple input handling with control outputs in a single PLC-mounted module.
Its value is not just measurement. It gives you local zone control, auto-tuning/PID behavior, and direct integration with the existing 90-30 rack, which is a lot cleaner than hanging a separate temperature controller off an old cabinet. In a retrofit, that saves wiring, panel space, and a pile of troubleshooting time.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model | IC693TCM302B |
| Manufacturer | GE Fanuc |
| Series | Series 90-30 |
| Product Type | Temperature Control Module |
| Thermocouple Inputs | 8 channels |
| Control Outputs | 8 DC outputs |
| Control Mode | Open-loop / closed-loop PID |
| Input Types | J, K, L thermocouples; RTD support listed |
| Temperature Range | 0 to 450 °C for J/L, 0 to 600 °C for K |
| Resolution | 12 bits, about 0.2 °C |
| Output Voltage | 18 to 30 VDC |
| Load Current | 100 mA per output channel |
| External Power | 18 to 36 VDC |
| Internal Consumption | 150 mA at 5 VDC |
Application Scenarios & The “Trench” Experience
A temperature module failure is the kind of problem that quietly ruins a shift. The oven is drifting, the heater output is chattering, or one zone is cold while the rest look fine. That is when people discover how expensive one bad thermal channel can be.
- Plastics processing – Barrel and die heating – Used when multiple thermal zones need closed-loop control.
- Packaging equipment – Sealing jaw temperature control – Required for stable heat control and fast response.
- Industrial ovens – Multi-zone thermal regulation – Needed for direct thermocouple feedback and output control.
- Process heating skids – Independent zone control – Chosen when each zone needs its own sensor and output loop.
Field case: a small extrusion line began drifting out of spec on one heater zone. The operator kept raising the setpoint, but the product still came out wrong because the actual module output had gone unstable. Replacing the IC693TCM302B restored the loop, and the plant avoided scrapping another full day of product.
- IC693TCM302B
- IC693TCM302B
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual GE racks.
- Inbound Inspection: Check label integrity, connector condition, terminal blocks, and evidence of tampering.
- Live Rig Testing: Power the module in a known-good Series 90-30 rack and verify status LEDs, thermocouple reading, and output switching.
- Electrical Parameter Checks: Confirm input signal response, output drive behavior, fuse condition, and supply stability.
- Firmware Verification: Record the exact hardware revision and control behavior during test.
- Final QC & Anti-static Packaging: Clean, function-test, and pack in ESD-safe materials before shipment.
The Veteran’s Tech Trap Guide
- ⚠️ Thermocouple type matters. Don’t assume J, K, and L are interchangeable in the field. Bad sensor selection will look like a bad module.
- ❗ Check the output power supply. The module needs its external DC supply in the correct range, or the control loop will fail in strange ways.
- ⚠️ Don’t forget the fuse. A blown user-replaceable fuse can make the whole card look dead when the electronics are fine.
- ❗ Verify wiring polarity and sensor integrity. Open or reversed thermocouples create nuisance faults that can waste hours if you start guessing.
Frequently Asked Questions (FAQ for Conversion)
Q: Is IC693TCM302B hot-swappable?
A: No. Treat it like a powered-down replacement module.
Q: How many zones can it control?
A: Up to 8 thermocouple input zones with 8 output channels.
Q: Does it support PID control?
A: Yes. It supports both open-loop and closed-loop PID operation.
Q: What thermocouples does it support?
A: J, K, and L thermocouples are listed, and RTD support appears in the source data.
Q: What is the output drive?
A: 18 to 30 VDC output with 100 mA per channel.
Q: Is this cheaper than OEM direct supply?
A: Yes, usually. Most available stock comes from surplus channels, not active production.
Q: Is it fake or refurbished?
A: The surplus market is mixed. Good sellers should provide test data, clear photos, and revision details before shipping.
