Description
Product Introduction
The GE IC694ALG222GE is a 16-channel analog voltage input module for the RX3i PACSystems platform. It is used to bring field voltage signals into the controller for temperature, pressure, flow, and other process measurements.
Its value is density and flexibility. In field work, that means you can read more analog points without burning extra rack space, and you can configure the input ranges to match the process instead of forcing the process to match the card. That matters in legacy cabinets where every spare slot counts.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model | IC694ALG222GE |
| Manufacturer | GE Fanuc / Emerson |
| Series | RX3i PACSystems |
| Product Type | Analog Input Module |
| Input Channels | 16 |
| Input Style | Differential or single-ended |
| Voltage Ranges | 0 to 10 V, -10 to +10 V |
| Application | Process signal acquisition |
| Mounting | RX3i backplane slot |
| Typical Use | Temperature, pressure, flow, and voltage feedback |
| Isolation / Power Notes | External isolated 24 VDC may be required depending on backplane location |
Application Scenarios & The “Trench” Experience
An analog input module usually becomes important only after something goes wrong. One drifting transmitter can throw off a control loop, and one dead channel can make an operator think the process itself is unstable. In reality, the bad actor is often the I/O card.
- Process control – Pressure and flow monitoring – Used when the controller needs clean analog feedback from field transmitters.
- Manufacturing – Machine condition monitoring – Required for reading speed, position, or load signals into the PLC.
- Utilities – Tank and utility loop measurement – Needed for distributed analog signal collection.
- Retrofit support – Legacy analog replacement – Chosen when the system must keep the same wiring and scan architecture.
Field case: a plant kept seeing erratic tank level readings on one channel. The transmitter checked out, the wiring checked out, and the problem turned out to be the input module itself. Replacing the card restored stable readings and stopped the operator from chasing a phantom process issue.
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual GE racks.
- Inbound Inspection: Check label integrity, connector pins, housing condition, and revision markings.
- Live Rig Testing: Install in a known-good RX3i rack and verify each channel response.
- Electrical Parameter Checks: Confirm signal scaling, input response, and stability across the selected ranges.
- Firmware Verification: Log the exact hardware revision and configuration state before release.
- Final QC & Anti-static Packaging: Clean, test, and pack in ESD-safe materials before shipment.
The Veteran’s Tech Trap Guide
- ⚠️ Don’t confuse it with an output card. This module reads analog voltage signals. It does not drive them.
- ❗ Check the input range before wiring. A 0 to 10 V process and a ±10 V process are not the same thing in the field.
- ⚠️ Backplane location matters. Depending on where the module sits, external isolated 24 VDC may be required.
- ❗ Don’t trust the transmitter blindly. A good field device can still look bad if the scaling or common wiring is wrong.

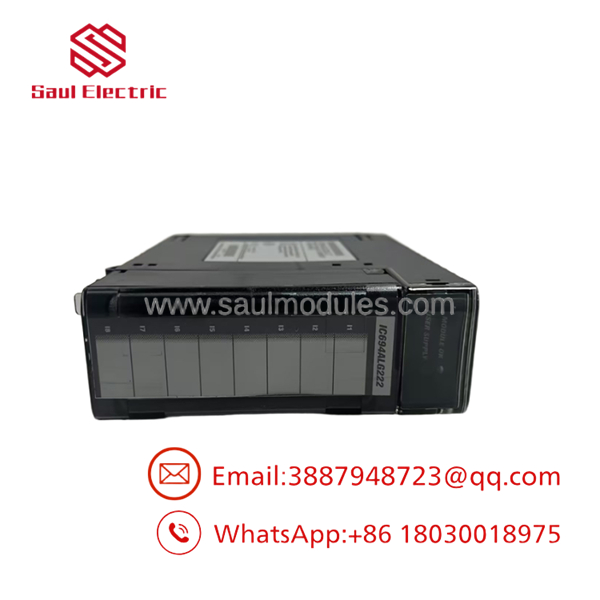

- IC694ALG222GE

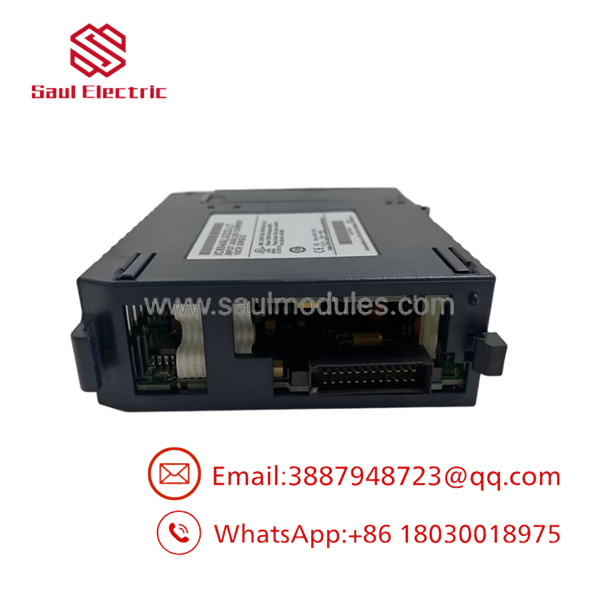

- IC694ALG222GE
Frequently Asked Questions (FAQ for Conversion)
Q: Is IC694ALG222GE hot-swappable?
A: No. Treat it like a powered-down replacement, not a live swap.
Q: How many analog inputs does it have?
A: 16 channels.
Q: What voltage ranges does it support?
A: 0 to 10 V and -10 to +10 V.
Q: Is it single-ended or differential?
A: It supports differential or single-ended input configurations.
Q: Why is it cheaper than OEM direct supply?
A: Because most available stock comes from surplus channels, not active production.
Q: Is it fake or refurbished?
A: The surplus market is mixed. Good sellers should provide test data, clear photos, and revision details before shipment.
Q: Does it come with a warranty?
A: Many surplus vendors offer 12 months, but the exact warranty depends on the seller.
