Description
Product Introduction
The GE Fanuc IC694MDL655 is a 32-point 24 VDC discrete input module for the RX3i PACSystems platform. It accepts positive or negative logic field signals from sensors, switches, and contacts, then presents them to the controller as standard discrete input data.
Its value is density and clean wiring discipline. In a real panel, that means you can bring in a lot of field signals without wasting rack space, and you can keep the same input style across legacy cabinets instead of rebuilding the whole I/O layer.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model | IC694MDL655 |
| Manufacturer | GE Fanuc |
| Series | RX3i PACSystems |
| Product Type | Digital Input Module |
| Input Points | 32 |
| Input Grouping | 4 isolated groups of 8 |
| Nominal Input Voltage | 24 VDC |
| Input Voltage Range | 0 to +30 VDC |
| On-State Voltage | 11.5 to 30 VDC |
| Off-State Voltage | 0 to 5 VDC |
| Input Current | 7.0 mA per point at 24 VDC |
| Response Time | 2 ms on/off |
| Backplane Power | 195 mA from 5 V bus |
Application Scenarios & The “Trench” Experience
A discrete input card is one of those parts people underestimate until it fails. Then every sensor in the machine suddenly looks suspicious, even though the real problem is just one bad module sitting in the rack.
- Manufacturing – Sensor and switch monitoring – Used for pushbuttons, limit switches, proximity sensors, and BCD thumbwheels.
- Process control – Alarm and permissive inputs – Required when the PLC must read hardwired field contacts.
- Material handling – Conveyor feedback – Needed for dense 24 VDC point collection in legacy RX3i panels.
- Retrofit support – Like-for-like replacement – Chosen when the plant wants to keep the same wiring and logic behavior.
Field case: a packaging line started dropping random permissive signals on one input bank. The field devices tested fine, which made the problem annoying and expensive to isolate. Replacing the IC694MDL655 restored stable input reads and saved the plant from a pointless sensor-by-sensor replacement run.

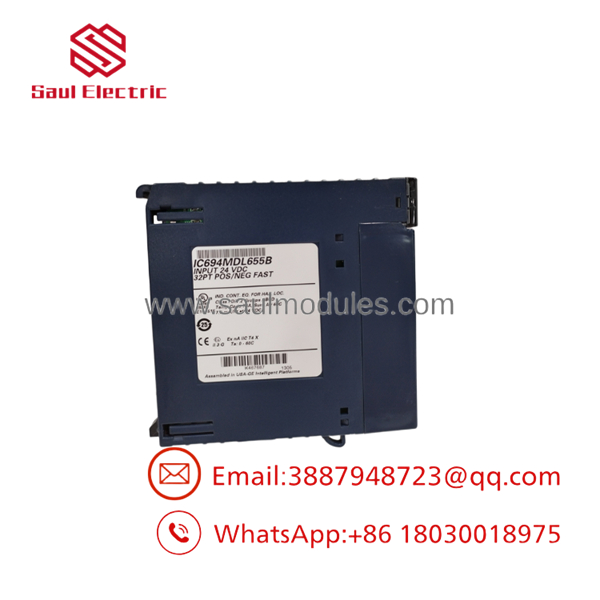

- IC694MDL655

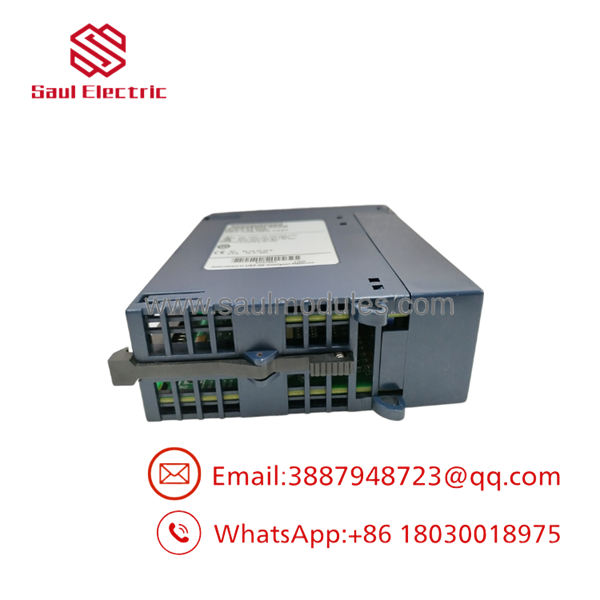

- IC694MDL655
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual GE racks.
- Inbound Inspection: Check part number, connector condition, label integrity, and revision markings.
- Live Rig Testing: Install in a known-good RX3i rack and verify all 32 points.
- Electrical Parameter Checks: Confirm input threshold behavior, current draw, and isolation integrity.
- Firmware Verification: Not firmware-driven, but the exact hardware revision and response timing are logged.
- Final QC & Anti-static Packaging: Clean, function-test, and pack in ESD-safe materials before shipment.
The Veteran’s Tech Trap Guide
- ⚠️ Don’t confuse it with an output module. This card reads 24 VDC inputs. It does not drive loads.
- ❗ Check the common wiring. The module is split into four isolated groups of eight, so the commons matter.
- ⚠️ Positive/negative logic is not magic. The field device still has to match the actual sink/source scheme.
- ❗ Don’t trust a bench test alone. A module can look fine on the bench and still fail under noisy field wiring.
Frequently Asked Questions (FAQ for Conversion)
Q: Is IC694MDL655 hot-swappable?
A: No. Treat it like a powered-down replacement, not a live swap.
Q: How many inputs does it have?
A: 32 discrete input points, arranged in four isolated groups of eight.
Q: What voltage does it use?
A: 24 VDC nominal, with a 0 to +30 VDC input range.
Q: Is it positive logic, negative logic, or both?
A: Both. That is one reason it shows up so often in mixed legacy panels.
Q: Can it be used in an RX3i rack?
A: Yes. That is the intended platform.
Q: Why is it cheaper than OEM direct supply?
A: Because most available stock comes from surplus channels, not active production.
Q: Is it fake or refurbished?
A: The surplus market is mixed. Good sellers should provide test data, clear photos, and revision details before shipment.
