IC752SPL013 GE EX2100 Operator Interface Keypad

Description

Product Introduction

The GE IC752SPL013 is an operator interface keypad assembly used on EX2100 excitation control systems. It gives plant personnel local access to system functions, status, and parameter entry at the panel.

What matters here is not glamour. It is panel-level control that still works when the rest of the site is under pressure. The IC752SPL013 is the kind of part you keep on the shelf because a dead keypad can slow commissioning, maintenance, and troubleshooting on an excitation cabinet.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A trench failure here is ugly but simple: the controller may still be fine, yet nobody can navigate the panel because the keypad is dead or unreadable. That turns a small hardware issue into a maintenance headache fast.

• Power generation – exciter cabinet local control – this part is required because operators need direct access to excitation functions at the panel.
• Utilities – generator field control – it fits when local interface continuity matters during inspection or startup.
• Industrial plants – standby generator support – it is needed when the EX2100 panel is the only practical place to change or verify settings.
• Commissioning and maintenance – front-panel diagnostics – it is required when technicians need keypad-based access for troubleshooting and adjustments.

Field case: a generator package lost keypad response during a startup window, and the team could not confirm settings at the panel. The controller itself was still alive, but the operator interface was not helping anyone. A verified IC752SPL013 replacement restored panel access and avoided a much longer outage.

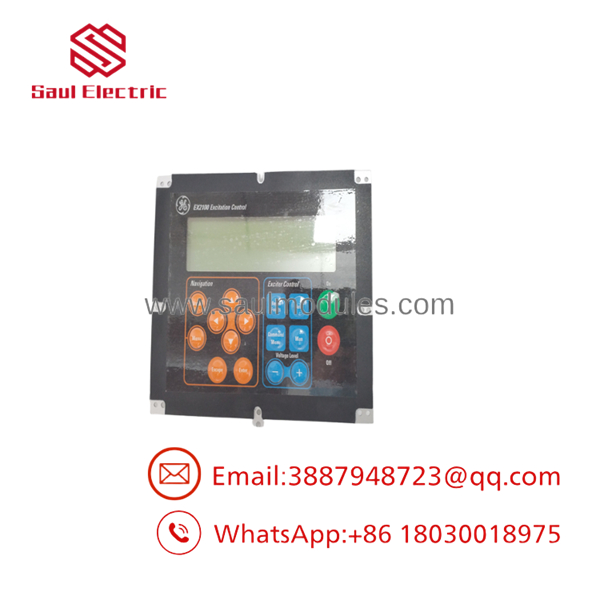

IC752SPL013

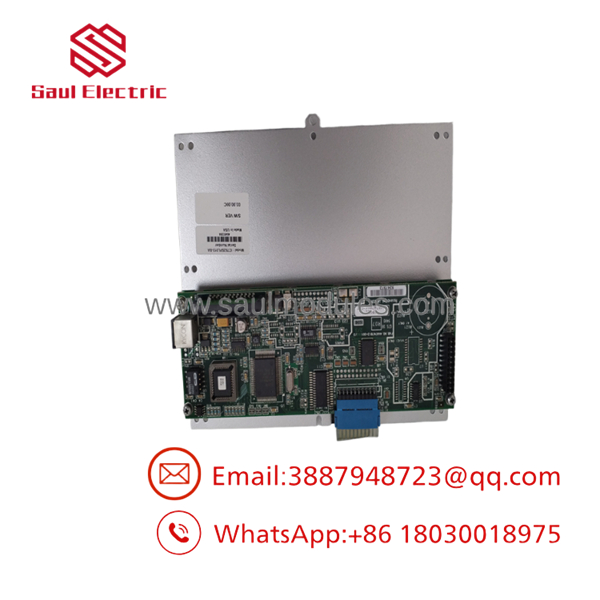

IC752SPL013

Transparency SOP: Quality Assurance & Testing

We do not just ship boxes; we test them on actual GE racks and panel interfaces.

• Inbound Inspection: Confirm part number, suffix, label condition, connector integrity, and keypad wear.
• Live Rig Testing: Verify button response, display communication, and panel interface behavior on a matching setup.
• Electrical Parameter Checks: Check continuity, input behavior, and any relevant signal paths for the assembly.
• Firmware Verification: If the lot includes display/interface electronics, log revision data and confirm compatibility.
• Final QC & Anti-Static Packaging: Clean, protect, and ship in ESD-safe packaging with inspection notes.

The Veteran’s Tech Trap Guide

• ⚠️ Do not assume every suffix is identical. The base part and suffix can matter for fit, labeling, or interface behavior.
• ❗ Take photos before removal. Connector orientation and mounting details save time when the new unit arrives.
• ⚠️ Check whether the fault is the keypad or the cable. A bad harness can look like a dead interface.
• ❗ Protect it from ESD and solvent damage. These front-panel assemblies do not tolerate sloppy handling.

Frequently Asked Questions

Q: Is the hot-swappable?
A: No. Treat it like a maintenance replacement, not a live plug-in.

Q: What system is it used with?
A: It is associated with GE EX2100 excitation control panels and operator interfaces.

Q: Is it a controller or a keypad?
A: It is an operator interface keypad assembly, not the main excitation controller.

Q: Why are some sellers listing rebuilt units?
A: Because this part is often traded through surplus and refurbishment channels, especially for legacy excitation hardware.

Q: Is the unit fake or refurbished?
A: Seller quality varies, so verify the suffix, physical condition, and test status before buying.

Q: Why is this cheaper than OEM direct?
A: Because it is usually available from surplus inventory rather than active factory production.

Q: What should I verify before installation?
A: Confirm the exact suffix, cabling, panel fit, and display compatibility with the installed EX2100 system.
