Description
Product Introduction

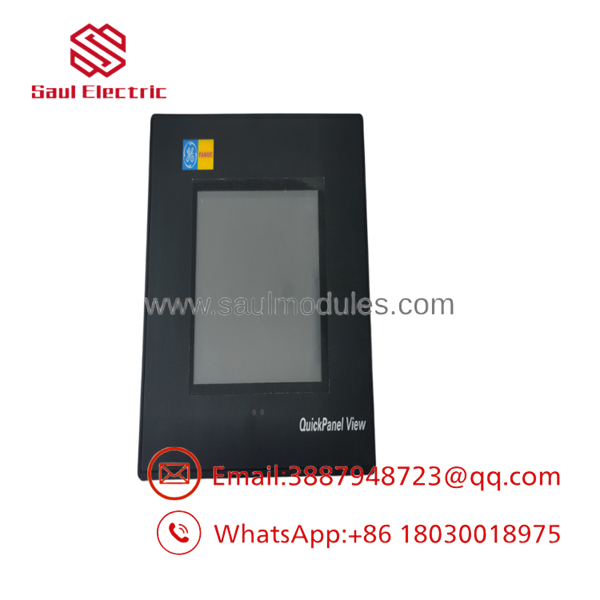

The GE IC754VGL06CTD ES0622 is a QuickPanel View HMI used for industrial machine control and operator interaction. It is a compact color touchscreen panel designed to show process data, alarms, and control screens at the machine or cabinet.
What matters is practicality. This HMI gives operators a local interface without tying up the PLC side of the system, and the 6-inch form factor makes it a good fit for tight panels where a larger display is not realistic.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model | IC754VGL06CTD ES0622 |
| Brand | GE / GE Fanuc |
| Series | QuickPanel View |
| Display Size | 6-inch TFT LCD |
| Display Type | Color touchscreen HMI |
| Resolution | 32 x 240 pixels |
| Processor | 255 MHz class processor |
| Color Depth | 65,536 colors |
| Power Supply | 24 VDC |
| Primary Use | Operator control and monitoring |
| Typical Mounting | Panel-mounted industrial HMI |
Application Scenarios & The “Trench” Experience
A trench failure here is familiar: the PLC is fine, the machine is alive, and the operator screen is dead. That means production can still be blocked by a frozen or unreadable interface.
- Manufacturing – machine status and control – this unit is required because operators need direct visual access to alarms and setpoints.
- Packaging lines – local machine HMI – it fits when the cabinet space is tight and a small panel is easier to replace fast.
- Process skids – equipment monitoring – it is needed when technicians must see runtime values without opening the controller program.
- Utilities – pump and auxiliary control – it is required when a local touchscreen is the fastest way to restore operator visibility.
Field case: a production line lost its front-end display during a shift change, and operators had no clean way to confirm alarms or reset process screens. The controller was still running, but nobody could use it comfortably. A verified IC754VGL06CTD ES0622 replacement got the panel back in service and avoided a longer shutdown window.

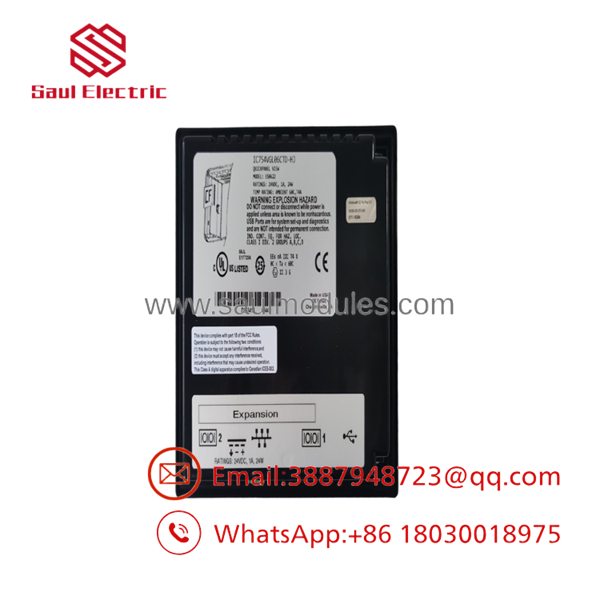

- IC754VGL06CTD ES0622
- IC754VGL06CTD ES0622
Transparency SOP: Quality Assurance & Testing
We do not just ship boxes; we test them on actual GE panels.
- Inbound Inspection: Confirm model suffix, bezel condition, touchscreen wear, and label integrity.
- Live Rig Testing: Power the panel, confirm boot behavior, touchscreen response, and display visibility.
- Electrical Parameter Checks: Verify 24 VDC input behavior and stable operating current.
- Firmware Verification: Record the installed image or revision where available and confirm build identity.
- Final QC & Anti-Static Packaging: Clean, protect, and pack in ESD-safe materials with test notes.
The Veteran’s Tech Trap Guide
- ⚠️ Suffix matters. IC754VGL06CTD variants are not something you want to guess on. Check the exact suffix before ordering.
- ❗ Do not confuse panel size with resolution. A 6-inch screen can still have different graphics expectations than you assume.
- ⚠️ Check the cable and power first. A dead HMI is often a wiring or supply issue, not a bad display.
- ❗ Verify the project compatibility. Even a good panel can be useless if the application file does not match the machine.
Frequently Asked Questions
Q: Is the ES0622 hot-swappable?
A: No. Treat it as a powered-down panel replacement.
Q: What system is it used with?
A: It is associated with GE Fanuc QuickPanel View operator interface applications.
Q: What is the display size?
A: It is a 6-inch color touchscreen panel.
Q: What power does it use?
A: Listings identify 24 VDC input for this model family.
Q: Why is this cheaper than OEM direct?
A: Because it is usually sold through surplus or refurbished channels rather than active factory production.
Q: Is it fake or refurbished?
A: Seller quality varies, so verify the suffix, physical condition, and test status before buying.
Q: What should I verify before installation?
A: Confirm panel cutout fit, power input, project file compatibility, and communication settings.
