IDEC PF3S-PSA2 PLC Power Supply Module

Description

3. Product Introduction

The IDEC PF3S-PSA2 is a system power supply module engineered specifically for the IDEC FA-3S series programmable logic controller family. Designed to mount directly into the far-left position of the FA-3S base rack, the PF3S-PSA2 converts high-voltage AC mains into regulated low-voltage DC power required by the CPU module, local expansion racks, and backplane bus logic.

Featuring a wide 100–240 VAC input range, built-in noise suppression, and overcurrent protection, the PF3S-PSA2 delivers clean, ripple-free power to protect sensitive PLC microprocessors in harsh industrial noise environments.

4. Key Technical Specifications

5. Application Scenarios & The “Trench” Experience

Picture this: It’s 2:00 AM on a critical production line. An entire automated assembly line goes silent—no warning lights, no fault codes, just complete panel blackouts on the primary PLC rack. The culprit is a failed primary switching transformer inside the power supply module following a utility brownout spike. The plant is losing money every 15 minutes the line stays down.

Having a bench-verified IDEC PF3S-PSA2 power supply module on hand allows maintenance techs to restore system power immediately without needing to redesign the entire control cabinet with a newer PLC platform.

• Legacy PLC Rack Maintenance: Supplying primary backplane power to existing FA-3S series control systems in active factory automation environments.
• Packaging & Material Handling: Driving conveyor sorters, pick-and-place arms, and wrapping machinery equipped with legacy IDEC automation hardware.
• Water & Wastewater Treatment: Powering remote telemetry units (RTUs) and pump station monitoring racks where FA-3S PLCs are deployed.

6. Transparency SOP: Quality Assurance & Testing

We test every unit on active PLC base chassis. Every new surplus or refurbished IDEC PF3S-PSA2 unit undergoes a 5-step engineering verification SOP:

1. Inbound Visual & Component Audit: Inspection of terminal block screws, housing plastic latches, internal electrolytic capacitors for swelling, and PCB trace integrity.
2. AC Input Voltage Sweep: Applying line voltages from 90 VAC to 264 VAC on a variable transformer to verify stable AC-to-DC conversion across the full input envelope.
3. 5V Backplane Load Bank Stress Test: Connecting a precision DC electronic load to the 5V output terminals, pulling 100% rated capacity for 2 continuous hours to verify thermal dissipation and output stability.
4. Ripple & Noise Analysis: Measuring output DC voltage ripple with an oscilloscope to ensure clean power output within OEM tolerances.
5. Clean & Anti-Static Packaging: Clearing diagnostic memory flags, fitting protective terminal covers, and sealing the unit inside an ESD shielding bag with custom foam packaging.

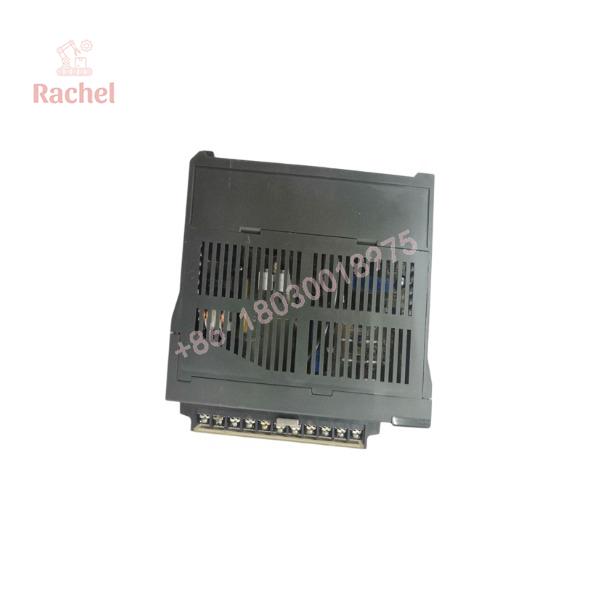

PF3S-PSA2

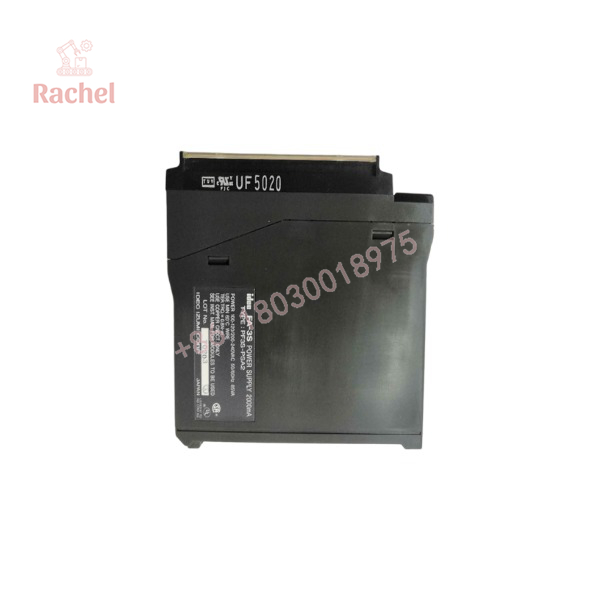

PF3S-PSA2

7. The Veteran’s Tech Trap Guide (Crucial Value-Add)

If you’re replacing an IDEC PF3S-PSA2 module in an active control cabinet, watch out for these technical traps:

• ⚠️ Backplane Pin Alignment: When sliding the PF3S-PSA2 into the FA-3S base chassis, ensure the rear gold-finger backplane connector aligns perfectly with the chassis slot before applying pressure. Forcing a misaligned module will bend the chassis pins and short out the backplane bus.
• ❗ Distinguish Internal Backplane Power vs. Field I/O Power: The PF3S-PSA2 supplies internal 5V logic power to the CPU and I/O module cards via the backplane. It does not supply 24V DC loop power for field sensors (such as limit switches or proximity sensors)—field devices require an external 24V DC power supply wired separately.
• ⚠️ Check Terminal Screws for Voltage Selection: Ensure line wires (L, N, Ground) are connected strictly to the designated AC terminals. Miswiring AC mains to internal ground terminals will immediately trip the main panel breaker and ruin the internal line filter.

8. Frequently Asked Questions (FAQ)

Q: What is the main difference between the PF3S-PSA1 and PF3S-PSA2?

A: The primary difference generally lies in the input voltage capability or maximum output current rating. The PF3S-PSA2 is rated for universal 100–240 VAC inputs, whereas lower-tier models may only accept 100–120 VAC. Always verify the input voltage label on your existing chassis.

Q: Can the PF3S-PSA2 be hot-swapped while the PLC is powered?

A: No. Always disconnect primary AC mains power to the cabinet before removing or inserting the PF3S-PSA2 module to prevent backplane arcing and CPU memory corruption.

Q: Is the IDEC FA-3S series still actively manufactured?

A: The FA-3S series is a legacy IDEC PLC platform. Replacement parts are primarily sourced through verified New Surplus or Factory Refurbished inventory to keep operational lines running without requiring costly PLC migrations.

Q: What warranty coverage comes with this module?

A: Every IDEC PF3S-PSA2 unit—whether New Surplus or OEM Refurbished—comes backed by our full 12-Month Replacement Warranty. If a hardware fault occurs within 365 days under standard operating conditions, we replace it directly from stock.
