IS200ERIOH1ABB GE Mark VIe EX2100 Board

Description

Product Introduction & Engineering Value

Maintaining stable generator field excitation demands rock-solid voltage feedback and instantaneous firing pulse control. The GE IS200ERIOH1ABB serves as a dedicated Exciter Regulator I/O board within EX2100 generator excitation control systems. It bridges raw field feedback—such as stator voltage, field current, and de-excitation status—directly to the primary digital regulator core.

Built on GE’s proven Speedtronic architecture, this card conditions critical analog and discrete signals before passing them to the system DSPs. Its low-latency hardware design ensures precise synchronization between regulator algorithms and thyristor bridge firing, delivering reliable generator voltage regulation and reactive power control under dynamic grid conditions.

Technical Specifications

Field Application & The “Trench” Experience

During a forced outage at a combined-cycle power plant, the main generator’s EX2100 regulator tripped on an “Exciter I/O Feedback Fault” during a routine VAR loading ramp. Troubleshooting pinpointed a degraded analog signal conditioning channel on the active ERIO card, causing false field current spikes. Our field tech dispatched a bench-tested IS200ERIOH1ABB module. The board was slid into the regulator rack, locked down, and verified via ToolboxST. The excitation system was re-energized, synchronized to the grid, and held a steady voltage profile across full load testing without a single frame drop.

Niche Application Scenarios:

• Utility-Scale Generator Voltage Regulation: Processing stator voltage and field current feedback for Automatic Voltage Regulators (AVR).
• Industrial Cogeneration Excitation: Managing de-excitation logic and field-flashing permissive signals during startup.
• Synchronous Motor Control: Routing torque-angle and excitation feedback signals in heavy industrial drive systems.

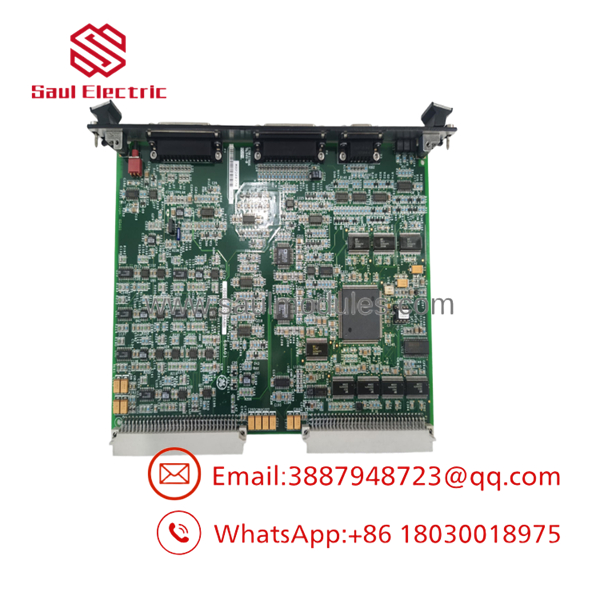

IS200ERIOH1ABB

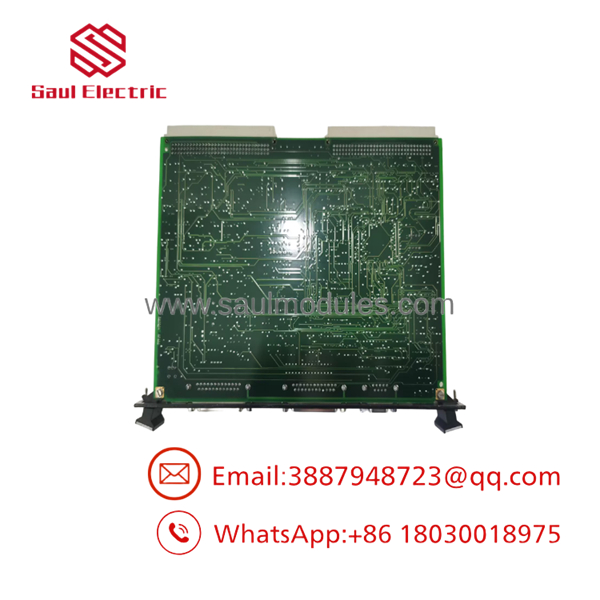

IS200ERIOH1ABB

Transparency SOP: QA & Testing

• Step 1: Visual & Conformal Coat Inspection — Connectors, surface-mount components, and trace pathways undergo microscopic check for solder joint fatigue, pin damage, or conformal coat wear.
• Step 2: Static Circuit Analysis — High-precision meter tests verify power rails, passive filter components, and input protection diodes meet factory tolerances.
• Step 3: Powered Rack Bench Test — The module is installed into an EX2100 test rack to verify A/D converter linearity, signal conditioning channels, and backplane bus handshaking.
• Step 4: Continuous Burn-In — The board undergoes a thermal run-in cycle under simulated field feedback loads to guarantee signal stability and zero thermal drift.

The Veteran’s Tech Trap Guide

• ⚠️ The Revision Code Mismatch (AAA vs. ABB): Pay close attention to the trailing revision letters. Swapping an H1AAA or H1ACB with an H1ABB module can trigger a “Hardware Incompatibility Fault” in ToolboxST if the parameter files or regulator firmware expect a specific component layout. Always verify firmware compatibility prior to hot-swapping or re-energizing.
• PRO TIP (Backplane Pin Alignment): The multi-pin backplane connectors on IS200 series cards require precise alignment. Never force the board into the rack slots—uneven insertion force can bend or push back connector pins, causing intermittent analog channel dropouts that are notoriously difficult to diagnose.
• ⚠️ ESD Protection on Sensitive Regulators: Excitation regulator boards contain high-speed ICs susceptible to static discharge. Always wear a grounded wrist strap when removing or installing the IS200ERIOH1ABB to avoid damaging onboard signal conditioning multiplexers.

Dynamic FAQ

Q: What is the primary function of the IS200ERIOH1ABB in an EX2100 system?

A: It functions as the Exciter Regulator I/O board, responsible for conditioning and routing critical analog feedback (such as voltage and current) and digital control signals to the main excitation processor.

Q: Can I replace an IS200ERIOH1A or H1AAA with an ?

A: In most cases, revision H1ABB is backward-compatible, but you must check your system’s software/firmware revision in ToolboxST to ensure the hardware build is accepted without triggering an ID mismatch alarm.

Q: Does replacing this card require recalibration of the generator excitation feedback?

A: Yes, after replacing an I/O board in an AVR system, standard practice requires verifying analog input scaling and zero/span calibration values using your GE software tooling to ensure precise feedback accuracy.

Q: What warranty and testing guarantee come with this module?

A: Every unit undergoes complete physical inspection, static circuit checks, and powered rack testing, backed by a full 12-month replacement warranty.
