Description
Product Introduction & Engineering Value
Managing legacy serial protocols alongside modern Ethernet control backbones often forces engineers to install bulky third-party protocol converters. The GE IS220PSCAH1A solves this by acting as a native Serial Communication I/O Pack directly within the Mark VIe ecosystem. It mounts directly onto compatible terminal boards (like the TSCA), digitizing serial data right at the cabinet termination point.
Equipped with a dedicated internal processor running an embedded real-time QNX operating system, this module offloads heavy serial frame parsing—including Modbus RTU and custom ASCII protocols—from the main rack controllers. Dual redundant IONet 10/100 Ethernet ports ensure that serial telemetry is delivered across the control network with zero single-point-of-failure risk.
Technical Specifications
- System Compatibility: GE Speedtronic Mark VIe Systems (Interfaces with TSCA terminal board)
- Serial Channels Supported: Up to 6 configurable serial channels (RS-232, RS-422, or RS-485 2-wire/4-wire modes)
- Processor Architecture: 32-bit ARM-based processor executing local QNX RTOS
- Network Connectivity: 2x 10/100 Mbps RJ45 ports for redundant IONet communication
- Input Voltage: 28.0 VDC nominal (powered directly via terminal board base)
- Power Draw: < 5.0 Watts maximum
- Status LEDs: Power, ATTN (Attention), Link/Act P1, Link/Act P2, Channel Activity
- Operating Temperature: -30°C to +65°C (-22°F to +149°F) ambient
- Protection: Factory conformal coating for harsh atmosphere survival
Field Application & The “Trench” Experience
During an overhaul at a combined-cycle generation station, the plant SCADA system lost communications with six third-party gas chromatographs. The serial signals were wired into a TSCA terminal board, but the attached PSCA pack had suffered a processor lockup during a lightning-induced ground bounce. The field instrument engineer pulled a bench-tested IS220PSCAH1A from local spares. After clipping the pack onto the terminal board’s 28-pin connector and plugging in the dual IONet cables, the Mark VIe controller automatically pushed down the serial port configuration via ControlST, restoring Modbus telemetry to the main historian in under 15 minutes.
Niche Application Scenarios:
- Gas Chromatograph Data Logging: Polling continuous fuel-gas composition data over Modbus RS-485 into the main turbine controller.
- Vibration Monitoring Systems (Bently Nevada): Routing serial diagnostic streams from 3500 series racks directly into the Mark VIe network.
- Exciter & AVR Serial Interfacing: Managing serial communication loops between third-party digital automatic voltage regulators and the central DCS.

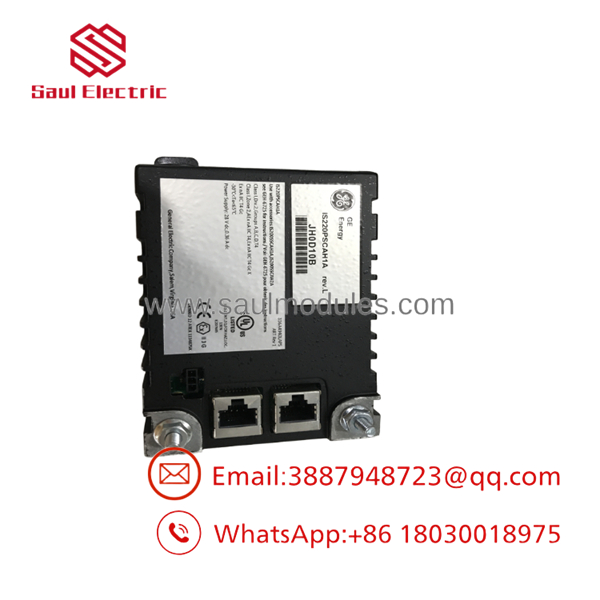

- IS220PSCAH1A

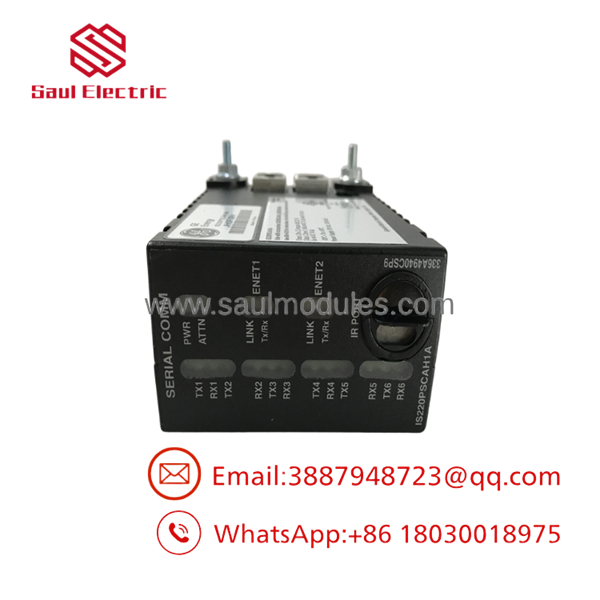

- IS220PSCAH1A

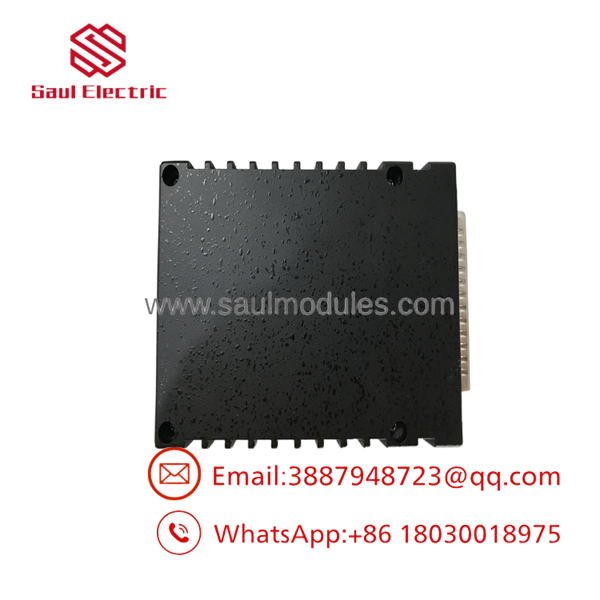

- IS220PSCAH1A
Transparency SOP: QA & Testing
- Mechanical Pin & Housing Inspection: The 28-pin base connector, RJ45 Ethernet ports, and housing latches undergo 100% microscopic inspection for bent pins or housing stress.
- 28VDC Power Ramp & Boot Sequence: The pack is mounted on a test fixture; power is applied while monitoring the bootloader logs to verify smooth QNX kernel startup without memory faults.
- Serial Loopback Traffic Test: Multi-channel serial signals (RS-232 and RS-485) are continuously transmitted across all channels to verify transceiver signal integrity and baud-rate accuracy up to 115.2 kbps.
- Dual IONet Stress Verification: Continuous packet transfers are executed across both RJ45 network ports under full traffic load to ensure zero frame drop or network redundancy failovers.
The Veteran’s Tech Trap Guide
- ⚠️ The 28-Pin Connector Bend Hazard: When seating the IS220PSCAH1A onto its TSCA terminal board, apply firm, straight downward pressure. Rocking the pack side-to-side during installation will bend or snap the recessed 28-pin connector pins, leading to intermittent power drops or lost serial channels.
- PRO TIP (Auto-Reflash in ControlST): If replacing a damaged PSCA pack, ensure the “Auto-Reflash” parameter is enabled in your ControlST hardware configuration. When the new pack boots up on the IONet, the controller will automatically flash matching firmware to the module, eliminating manual software download steps.
- ⚠️ Termination Resistor Misconfiguration: For RS-485 long-distance runs, hardware dip switches or jumper settings on the underlying TSCA terminal board control line termination (120-ohm resistors). Forgetting to enable termination on end-of-line devices will cause severe signal reflections and frame corruption.
Dynamic FAQ
Q: What terminal board is required to operate the ?
A: The mounts directly onto the TSCA (Serial Communication Terminal Board) or compatible Mark VIe serial baseboards.
Q: Does this pack require manual IP address configuration via a serial cable?
A: No. The PSCA pack receives its IP address and configuration dynamically over the IONet network from the primary Mark VIe controller based on its assigned position in ControlST.
Q: Can I use this module for 4-wire RS-422 communications?
A: Yes. The serial channels are software/hardware configurable to support RS-232, 2-wire RS-485, and 4-wire RS-422 differential signals.
Q: What warranty applies to New Surplus or Refurbished PSCA packs?
A: Every pack passes full physical, power-up, serial loopback, and dual Ethernet bench testing, supported by a comprehensive 12-month replacement warranty.
