KEBA DO321B KeControl C2 Digital Output Module

Description

Product Introduction

The KEBA DO321B (DO 321/B) is a high-density digital output expansion module designed for the KeControl C2 automation platform. Engineered for demanding industrial environments—most notably injection molding machines, robotics, and complex plastics machinery—this card adds 32 digital channels to the controller’s localized or distributed I/O rack.

Unlike standard commercial PLC outputs, the DO321B is built to handle the high switching frequency and electrical noise typical of hydraulic valves, contactors, and pneumatic solenoids. Its compact modular housing clips directly onto the internal rack system, maintaining high signal density without taking up critical panel real estate. Replacing a failed DO321B with the exact same revision ensures immediate bus recognition and zero downtime related to hardware mismatch.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A failure on a plastics molding line often shows up unexpectedly midway through a production cycle. An entire bank of hydraulic core-pull valves stops responding because a shorted solenoid coil destroyed an output channel on the main digital output card. The KeControl system halts on a field bus I/O fault, freezing a $200k mold tool mid-stroke. When every minute of downtime costs money in scrapped resin and lost capacity, trying to source a modern controller upgrade isn’t an option. Slapping in a pre-tested, direct-replacement KEBA DO321B module gets the valve manifold firing and the press making parts again in under 10 minutes.

• Injection Molding Machinery – Hydraulic & Pneumatic Valve Actuation – Controls high-speed solenoid valves with thermal protection on every channel.
• Industrial Robotics & Material Handling – End-of-Arm Tooling (EOAT) Control – Drives pneumatic grippers, vacuum valves, and signal towers directly from the robot controller cabinet.
• Packaging & Blow Molding Lines – High-Frequency Ejector Systems – Manages rapid ON/OFF cycles without premature relay or transistor contact degradation.
• Custom Machine Building – Concentrated Panel I/O Expansion – Provides high-density digital output points in space-constrained control enclosures.

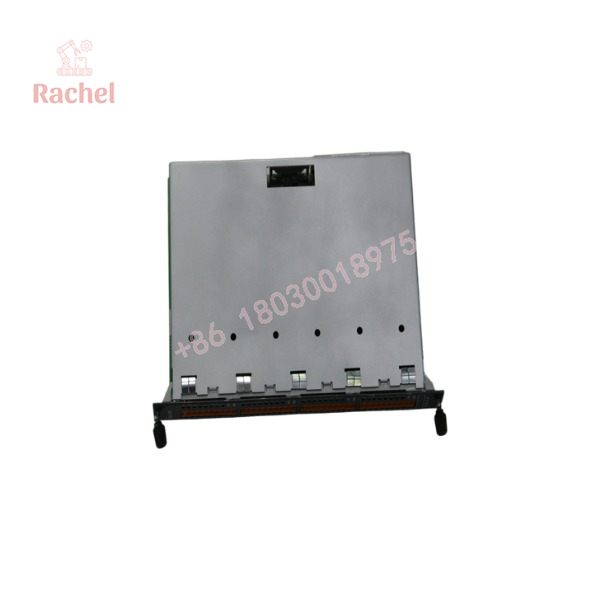

DO321B

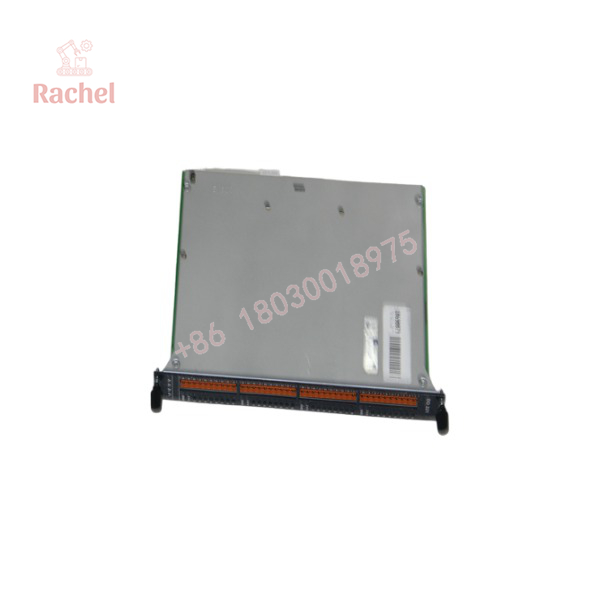

DO321B

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual KEBA test racks. Every DO321B module undergoes a thorough 5-step engineering verification before leaving our warehouse:

1. Inbound Inspection: Physical audit of backplane pin conditions, terminal blocks, housing clips, and component-level inspection for thermal stress or board corrosion.
2. Live Rig Testing: Installed into a live KeControl C2 rack. Verifies backplane address assignment, LED handshake, and bus communication stability under power.
3. Electrical Parameter Checks: Individual channel testing using a 24V DC simulated load matrix to verify switching voltage, current handling, short-circuit protection tripping, and channel isolation.
4. Firmware & Hardware Revision Check: Logging revision tags and verifying complete compatibility with standard KEBA software environments.
5. Final QC & Anti-Static Packaging: Ultrasonic cleaning of plastics, application of ESD protective packaging, and custom-foam box boxing.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ Watch the Total Module Current Limits!

Even though each channel is rated for up to 0.5A, you cannot turn on all 32 channels simultaneously at full 0.5A load without exceeding the total module power plane rating. Calculate your total continuous load across all channels to avoid thermal shutdown of the entire module board.

❗ Check Field Power Voltage Before Plugging In!

The DO321B uses external 24V DC power to drive its output transistors. If the field power supply sags below 18V DC or carries significant AC ripple from an aging power supply, output channels may fail to latch properly or throw transient short-circuit faults.

⚠️ Disconnect Power Blocks Before Pulling the Card

To be honest, while some modern I/O systems advertise hot-swapping, pulling a high-density 32-point terminal block while actively driving inductive loads (like hydraulic solenoids) can cause inductive back-EMF spikes. Always turn off the field 24V DC supply before pulling or inserting the card.

❗ Inductive Flyback Diodes Are Still Necessary!

The module has built-in short circuit protection, but heavy inductive loads (large coils, magnetic brakes) can still wear down output transistors over time if they lack external flyback protection. Always ensure external flyback suppression diodes or RC snubbers are installed at the coil side.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the KEBA DO321B module hot-swappable during machine operation?

A: No. You should always de-energize the controller rack and field power lines before replacing the module to avoid backplane communication corruption or arc damage on terminal contacts.

Q: Can I use this module to directly replace a standard DO 321 module?

A: Yes, the DO321/B is a direct functional and physical drop-in replacement for the standard DO321 variant in the KeControl C2 system. Always double-check your software layout settings if changing hardware revisions.

Q: What indicates a blown output channel on the front panel?

A: The front panel features channel status LEDs. If a specific channel’s LED fails to light up when commanded ON by the CPU, or if the red system error LED lights up, check that output channel for a short circuit or overcurrent condition.

Q: Are these units brand new from KEBA?

A: Because the KeControl C2 platform includes legacy series items, our inventory includes both New Surplus (unused original stock) and professionally refurbished, fully bench-tested units sourced through vetted industrial supply networks.

Q: What warranty comes with this module?

A: All KEBA DO321B modules shipped come standard with a full 12-month functional warranty. If any operational issues occur under standard operating conditions within one year, we provide an immediate replacement or repair.
