Product Introduction
The KLA 5105 forms a critical component of legacy KLA optical wafer defect inspection tools, deployed extensively in semiconductor fabrication facilities for inline yield management. It processes high-resolution visual signal inputs from optical sensor arrays to detect pattern anomalies, particles, and surface micro-defects during critical photolithography and etch stages.
Unlike generic machine vision processing boards, the KLA 5105 uses hardware-level signal filtering to isolate nanometer-scale anomalies from complex background patterns without slowing down high-throughput wafer handlers. Integrating this module preserves sub-micron defect detection capabilities without requiring a multi-million-dollar tool upgrade.
Key Technical Specifications
| Parameter | Specification / Value |
| Manufacturer | KLA Corporation / KLA-Tencor |
| Model Number | 5105 |
| Substrate Size Compatibility | 200 mm / 300 mm wafer processing tools |
| System Interface | Custom VME / High-Speed Backplane |
| Power Input | +5V DC, ±12V DC via rack backplane |
| Signal Processing Type | Real-time optical image array digitization |
| Operating Temperature | 18°C to 24°C (Class 10 / ISO 4 cleanroom conditions) |
| Cooling | Forced air cleanroom rack airflow |
| Form Factor | Multi-layer PCB assembly with front-panel diagnostic LEDs |
Application Scenarios & The “Trench” Experience
It’s 3 AM during a scheduled 28nm production run. The inspection tool suddenly drops off the factory automation system with a unrecoverable backplane handshake timeout. Your cleanroom lead is threatening to halt the whole line because uninspected wafers can’t proceed to CMP. Swap out the entire tool? Not happening. You trace the comm failure to a faulted KLA 5105 card that won’t pass its power-on self-test. A drop-in, fully bench-tested replacement gets the optical rig back online before the morning shift arrives.
- Semiconductor Front-End Lithography – Patterned Wafer Defect Detection – Essential for capture of post-etch residues and bridge faults.
- CMP (Chemical Mechanical Planarization) Process Control – Slurry Residue & Scratch Monitoring – Catches surface gouges before wafers advance to metal deposition.
- Fab Tool Retrofit & Maintenance – Legacy Cleanroom Tool Support – Extends the operating lifespan of 200mm fabrication lines without full system replacement.

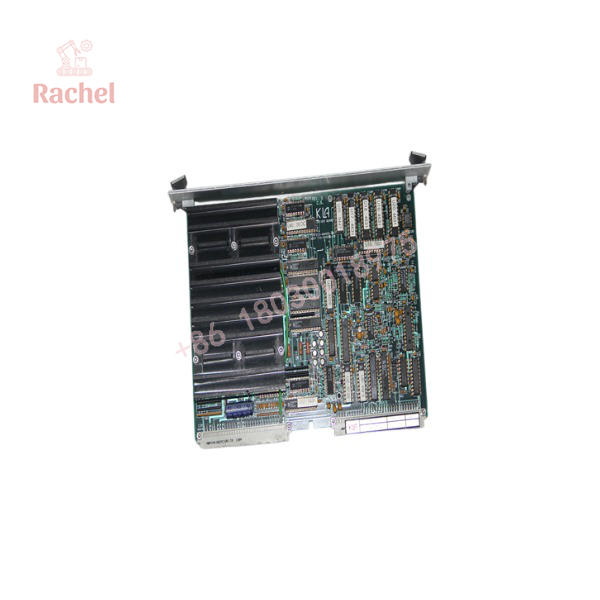

5105

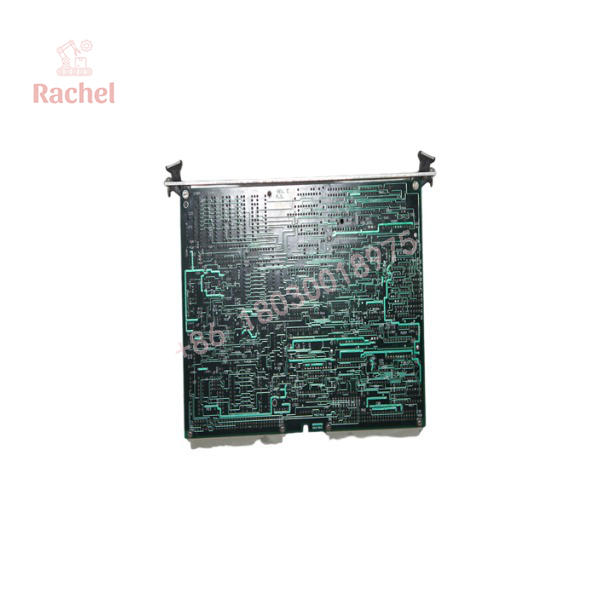

5105
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual KLA backplane test jigs.
- Inbound Inspection: Visual verification of PCB traces, component anti-counterfeit markings, and cleanroom contamination audit.
- Live Rig Testing: Insertion into dedicated VME test chassis with full power-rail stress testing and signal loopback validation.
- High-Speed Bus Handshake Checks: Exercising communication interface lines at rated clock frequencies to eliminate intermittent timing drops.
- Firmware & Rev Auditing: Verifying board revision levels and onboard EEPROM checksums match target system specs.
- Final Cleanroom Pack: Nitrogen-purged ESD shielding and anti-static bubble packaging suitable for ISO-class entry.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Check Board Revision Jumpers First: Do not just slam a replacement board into the rack. KLA boards frequently use trace jumpers or micro-DIP switches to define sub-addressing on the bus. Match the old board’s configuration exactingly, or the host controller will toss a bus conflict error.
- ❗ ESD Sensitivity is Extreme: These modules handle low-voltage, high-frequency optical signals. A subtle static discharge during installation won’t just kill the board—it can degrade the sensor pre-amps. Wrist straps and grounded mats aren’t optional.
- ⚠️ Backplane Pin Damage: Check the backplane connector pins on the tool rack before inserting the new card. Bent or oxidized pins on legacy chassis will mangle the male connectors on your fresh 5105 card immediately.
Frequently Asked Questions (FAQ for Conversion)
Q: Can I hot-swap the KLA 5105 module while the tool is powered?
A: No. Pulling this card under power will arc the bus connectors and likely blow the host VME controller card. Always perform a clean shutdown of the tool power distribution unit (PDU) first.
Q: Are firmware revisions critical when replacing the 5105?
A: Absolutely. System software versions on the host controller expect specific firmware checksums on the card’s EEPROM. Provide us your host tool software rev when ordering so we can confirm matchability.
Q: Is this a genuine OEM part or a third-party clone?
A: We stock original KLA manufactured equipment. These units are sourced through decommissioned semiconductor fabs and excess inventory releases globally.
Q: What warranty comes with the KLA 5105?
A: All our refurbished and surplus KLA modules carry a full 12-month replacement warranty from the date of shipment.
Q: Why is your pricing lower than buying through OEM service contracts?
A: Legacy tool manufacturers heavily mark up mature parts to encourage migration to newer tool generations. We source tested surplus directly from global fab liquidations, passing those savings on without the corporate markup.
