KOKUSAI KOMS-A2 CPU Board

Description

Product Introduction & Engineering Value

The KOMS-A2 is a specialized controller board used in KOKUSAI equipment. Unlike a standard PLC module with a broadly published I/O specification, this is a machine-specific control PCB. That distinction matters when sourcing a replacement.

KOKUSAI KOMS-A2 appears repeatedly in industrial PCB repair records, including recent repair documentation that explicitly categorizes it as a KOKUSAI CPU BOARD (KOMS-A2). Older repair records also list KOMS-A2 alongside other KOKUSAI controller and PCB assemblies.

Some secondary-market sources associate the board with CXP-544A and describe it as part of KOKUSAI semiconductor equipment. However, several detailed electrical specifications published online are not supported by primary KOKUSAI documentation, so they should not be treated as verified engineering specifications.

Technical Specifications

Identification Cross-Reference

Industrial listings provide the following association:

KOKUSAI ↔ CXP-544A

A Korean industrial repair company specifically lists “KOKUSAI CXP-544A” as a repairable electronic board, while another supplier lists CXP-544A as a KOKUSAI product.

Procurement caution: Treat CXP-544A as a related identification only unless the customer’s original board confirms the number.

Field Application & the “Trench” Experience

KOMS-A2 is most relevant to maintenance of legacy KOKUSAI semiconductor-processing equipment, where the controller PCB may no longer be readily available through normal OEM channels.

A CPU-board failure can create symptoms across the entire machine. The equipment may fail during initialization, lose control of a process sequence, or refuse to start even though individual peripheral boards remain operational.

In this situation, replacing the KOMS-A2 without first confirming the board revision can create a second fault. The correct maintenance procedure is to compare the failed board’s complete markings, connectors, firmware/device configuration, and machine model before installing the spare.

KOKUSAI repair records specifically show KOMS-A2 being handled as a CPU/control PCB, rather than as a generic I/O module.

Typical Application Environment

• Semiconductor fabrication equipment
• Thermal-processing equipment
• Legacy KOKUSAI production systems
• Equipment controller refurbishment
• Semiconductor-fab spare-parts inventory

Some aftermarket sources specifically associate the CXP-544A/KOMS-A2 combination with KOKUSAI semiconductor equipment.

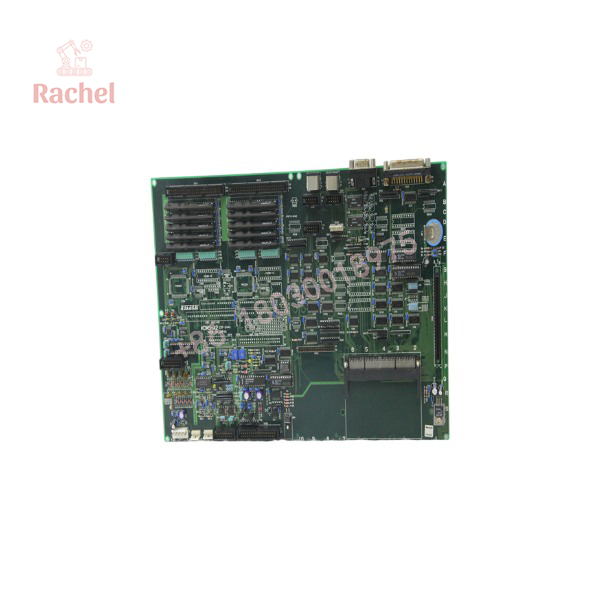

KOMS-A2

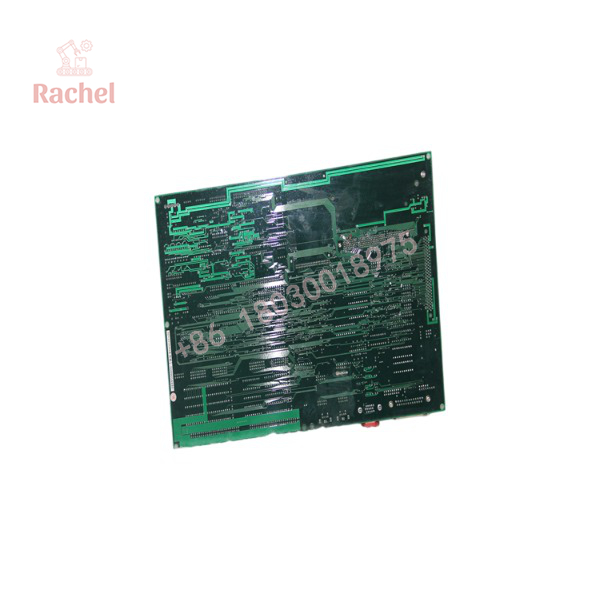

KOMS-A2

Transparency SOP: QA & Testing

For New Surplus or Refurbished KOMS-A2, identification and functional testing are critical.

Step 1 — Board Identification

Record:

• KOKUSAI
• Any marking
• PCB assembly number
• Revision
• Serial number
• Firmware/EPROM markings, if present

Photograph both sides of the PCB before shipment.

Step 2 — Physical Inspection

Check:

• PCB contamination
• Oxidation
• Connector condition
• Damaged components
• Electrolytic capacitors
• Burn marks
• Cracked solder joints
• Previous repair work
• Battery condition, if fitted

Step 3 — Electrical Test

Use a compatible KOKUSAI test fixture or machine whenever possible.

Verify:

1. Power-up sequence
2. CPU initialization
3. Board diagnostics
4. Communication with associated equipment
5. I/O or peripheral communication
6. Stable operation during extended runtime

Step 4 — Machine-Level Test

The most meaningful acceptance test is operation in the intended KOKUSAI equipment. A board that passes a bench power-up test may still have firmware, communication, or machine-configuration problems.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Treating KOMS-A2 as a generic PLC CPU.

It is better classified as a KOKUSAI machine-specific CPU/control PCB. Do not substitute a generic industrial CPU because the electrical interface appears similar.

⚠️ Trap #2 — Assuming every CXP-544A is identical.

CXP-544A and KOMS-A2 are frequently shown together in secondary-market listings, but that does not prove that every hardware revision is interchangeable.

⚠️ Trap #3 — Trusting unsupported specifications.

Some online listings claim detailed communication protocols, operating temperatures, dimensions, and semiconductor-process functions. Those claims are not consistently supported by authoritative KOKUSAI documentation. For a procurement page, it is better to state “verify from installed equipment” than publish an unverified number.

PRO TIP: For an exact replacement request, provide:

KOKUSAI KOMS-A2 CPU Board — include CXP-544A marking, PCB revision, assembly number, and photographs of both sides for compatibility verification.

Dynamic FAQ

What is KOKUSAI KOMS-A2?

is a KOKUSAI CPU/control PCB used in specialized industrial equipment, with industrial repair records specifically identifying it as a KOKUSAI CPU board.

Is KOMS-A2 associated with CXP-544A?

Yes. Multiple industrial sources list KOMS-A2 together with CXP-544A.

Is KOMS-A2 a PLC module?

It should not be described as a conventional PLC I/O module. Available repair documentation identifies it as a CPU/control PCB.

What equipment uses KOMS-A2?

Available evidence associates KOMS-A2 with KOKUSAI semiconductor-processing equipment, although the exact machine model should be confirmed from the original board and equipment documentation.

Can a CXP-544A replace any KOMS-A2?

No. The association between the two is useful for identification, but direct interchangeability must be confirmed by board revision and machine configuration.

Is refurbished KOMS-A2 a viable spare?

Yes. For legacy KOKUSAI equipment, professionally refurbished CPU boards can be valuable maintenance spares. Require evidence of functional testing rather than accepting a visual inspection alone.

What should I provide when ordering?

Provide the KOMS-A2 model marking, complete PCB/assembly number, revision, CXP-544A marking if present, machine model, and clear photographs of the board and connectors. This is the most reliable way to prevent a wrong-board shipment.
