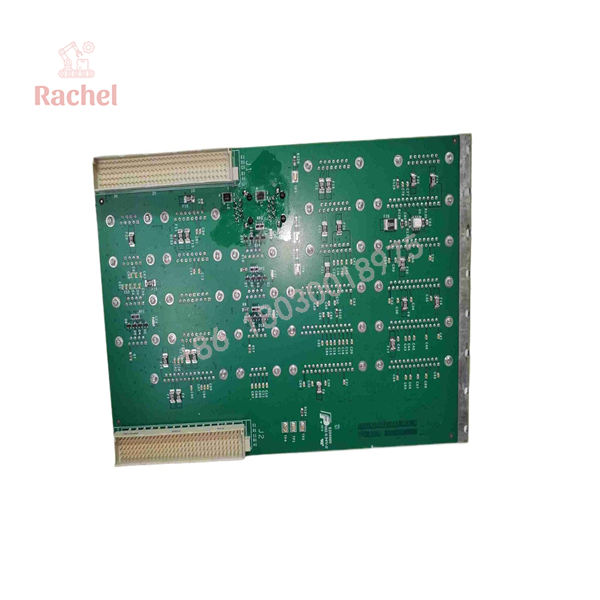

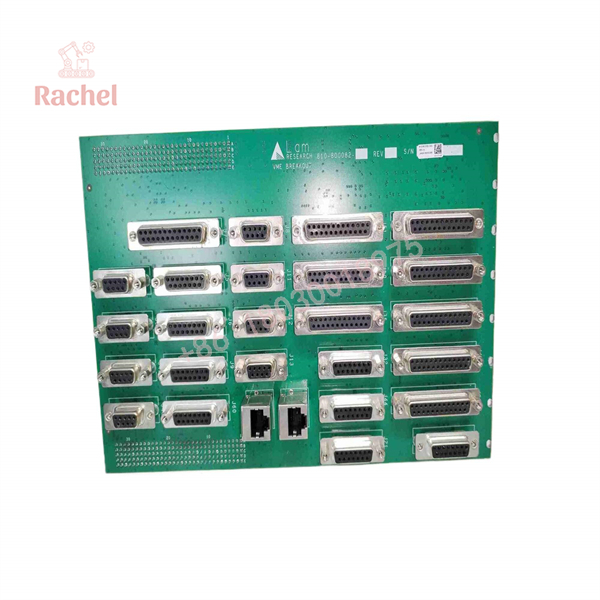

LAM 810-800082-043 VME Breakout PCB Assembly Board

Product Introduction & Engineering Value

When a semiconductor tool develops communication faults across multiple subsystems, the failure point is often not the controller itself but the interface layer connecting field devices and internal electronics. The LAM 810-800082-043 is a VME Breakout PCBA designed for Lam Research semiconductor equipment control architectures.

This board serves as a critical signal distribution point inside legacy Lam systems. Maintenance teams typically keep assemblies like this as strategic spares because a failed interface board can disable an otherwise functional process tool. Exact compatibility depends on the installed equipment platform, wiring configuration, and revision level.

Technical Specifications

Core Technical Parameters

• Manufacturer: Lam Research
• Part Number: 810-800082-043
• Assembly Type: VME Breakout Printed Circuit Board Assembly (PCBA)
• Bus Architecture: VME-based equipment control interface
• Primary Function: Signal breakout, routing, and interface connection between controller electronics and tool subsystems
• Application Category: Semiconductor manufacturing equipment electronics
• Installation Location: Equipment controller cabinet / VME chassis assembly
• Supported Signals: Equipment control, monitoring, and subsystem interface signals
• Replacement Classification: OEM lifecycle spare component
• Handling Requirement: ESD-controlled handling required
• Compatibility: Tool-specific; requires verification before installation

Field Application & The “Trench” Experience

A semiconductor fabrication line operating mature Lam etch equipment began reporting random subsystem communication alarms. The process engineers noticed that the failures were inconsistent: some chambers completed production runs normally while others stopped during initialization.

The maintenance team performed signal tracing through the controller cabinet and identified unstable communication paths associated with the VME breakout interface. Instead of replacing the complete control rack, engineers installed a verified LAM 810-800082-043 VME Breakout PCBA, inspected the connected harnesses, and completed system diagnostics.

The tool returned to production after the interface layer was restored.

Typical application scenarios include:

1. Lam Etch Tool Controller Cabinets
   Supporting signal distribution between VME controllers and process hardware.
2. Legacy Semiconductor Equipment Recovery
   Extending the operational life of installed Lam platforms where original replacements are difficult to source.
3. Process Tool Refurbishment Programs
   Restoring used semiconductor equipment for additional manufacturing capacity.

810-800082-043

810-800082-043

Transparency SOP: QA & Testing

A controlled inspection process for a LAM 810-800082-043 spare includes:

1. Identification Verification

• Confirm Lam Research identification labels.
• Verify complete part number and revision marking.
• Compare against the failed field unit.

2. PCB Condition Inspection

• Examine VME edge contacts.
• Inspect connectors, solder joints, and PCB traces.
• Check for contamination, corrosion, or physical damage.

3. Electrical Screening

• Perform continuity checks where applicable.
• Inspect power and signal paths.
• Verify no visible component failures.

4. Functional Validation

• Confirm VME communication capability when compatible test equipment is available.
• Verify connected subsystem communication after installation.

The Veteran’s Tech Trap Guide

⚠️ Do Not Treat a Breakout Board as a Simple Passive Card

Although the board primarily handles signal routing, incorrect replacement can create difficult-to-diagnose faults if pin assignments, revisions, or harness configurations differ.

⚠️ Harness Labeling Saves Downtime

Many Lam tools contain dense internal wiring. A single misplaced connector can generate multiple unrelated alarms.

PRO TIP: Photograph every connector position before removing the original board. This five-minute step can prevent hours of troubleshooting.

⚠️ Check Revision Before Installation

Legacy Lam boards often have multiple hardware revisions. Confirm the suffix and revision markings before approving installation.

Dynamic FAQ

Q1. What is the LAM 810-800082-043 used for?

The 810-800082-043 is a Lam Research VME Breakout PCBA used for signal interface and connectivity functions inside semiconductor equipment control systems.

Q2. Is this a processor or CPU board?

No. This assembly is an interface/breakout board. It works with controller hardware rather than replacing the main processing unit.

Q3. Can this board be installed directly into any Lam machine?

No. Compatibility depends on the exact Lam equipment model, chassis configuration, wiring layout, and revision level.

Q4. What should buyers verify for New Surplus inventory?

Recommended checks include:

• Original labeling
• Packaging condition
• PCB revision
• Connector condition
• Inspection documentation

Q5. Are refurbished 810-800082-043 boards suitable for production equipment?

Yes, provided the board has passed appropriate inspection and functional verification before installation.

Q6. What warranty applies to this replacement part?

Warranty coverage depends on supplier classification and testing level. Buyers should confirm whether the unit is New Surplus, Refurbished, or Used before purchase.
