Product Introduction & Engineering Value
A wafer process can fail even when every controller and gas system appears normal. The actual problem may be the component physically holding the wafer. The LAM 853-002499-200 is an Electrostatic Chuck (ESC) assembly used in Lam Research semiconductor process equipment, providing wafer retention and thermal management during plasma-based manufacturing steps.
ESC assemblies are production-critical hardware because wafer temperature uniformity and mechanical stability directly affect process repeatability. Replacement requires careful verification of chamber compatibility, surface condition, electrical characteristics, and cooling performance.
Technical Specifications
Core Technical Parameters
| Parameter | Specification |
|---|---|
| Manufacturer | Lam Research |
| Part Number | 853-002499-200 |
| Component Type | Electrostatic Chuck Assembly |
| Primary Function | Wafer electrostatic fixation and temperature control |
| Application | Semiconductor plasma processing equipment |
| Process Role | Wafer support during etch and related vacuum processes |
| Clamping Method | Electrostatic wafer retention |
| Thermal Interface | Backside cooling interface (tool dependent) |
| Operating Environment | Vacuum semiconductor process chamber |
| Material Construction | Semiconductor-grade ceramic / engineered substrate structure |
| Installation Area | Process chamber pedestal assembly |
| Maintenance Category | Critical process consumable / replacement hardware |
Field Application & The “Trench” Experience
A semiconductor fabrication facility operating mature Lam etch equipment began seeing gradual wafer-to-wafer process variation. The tool passed controller diagnostics, RF power checks were normal, and chamber cleaning results were acceptable.
The equipment engineering team investigated thermal behavior and discovered the ESC surface condition had degraded. Wafer backside temperature control became inconsistent, creating process drift during production runs.
During a scheduled chamber maintenance cycle, the team replaced the worn assembly with a verified LAM 853-002499-200 ESC component. After installation, helium backside cooling verification, electrical checks, and chamber qualification were completed. The tool returned to production with restored process stability.
Typical application scenarios include:
- Plasma Etch Chamber Wafer Support
- Maintaining wafer position and temperature during critical etching steps.
- High-Precision Semiconductor Manufacturing
- Supporting applications where thermal uniformity affects etch rate and profile control.
- Legacy Lam Equipment Lifecycle Support
- Keeping installed process platforms operational when original hardware availability becomes limited.
Lam Research equipment covers multiple semiconductor processing applications, including etch and deposition platforms requiring precise wafer processing control.

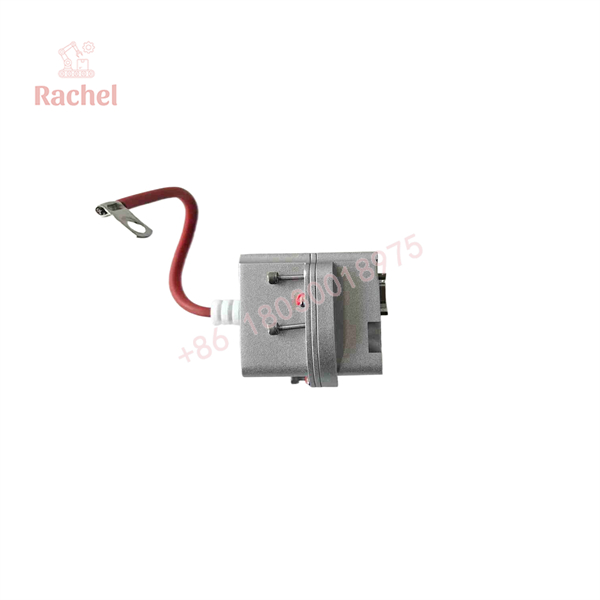

853-002499-200

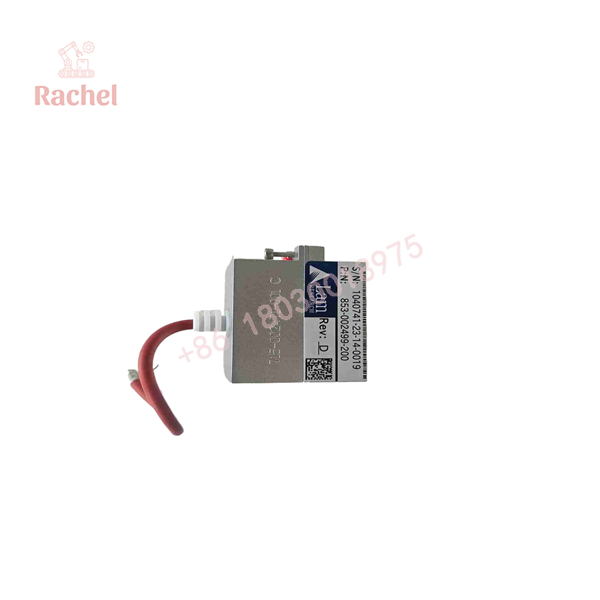

853-002499-200
Transparency SOP: QA & Testing
ESC components require more than a visual inspection. A proper evaluation process includes:
Inspection Checklist
✓ Verify part number and identification markings.
✓ Inspect ceramic surface condition for chips, cracks, scratches, or contamination.
✓ Check mounting interfaces and electrical connections.
✓ Verify insulation characteristics where applicable.
✓ Inspect backside cooling pathways and fittings.
✓ Perform helium leak testing if available.
✓ Validate chuck performance on compatible equipment before production release.
The Veteran’s Tech Trap Guide
⚠️ Surface Appearance Does Not Tell the Full Story
An ESC may look acceptable but still have internal electrical leakage, degraded chuck force, or poor thermal performance.
⚠️ Do Not Skip Backside Cooling Checks
A blocked or damaged helium cooling path can create temperature instability that looks like a recipe or sensor problem.
PRO TIP: Record wafer temperature behavior and process drift trends before replacement. This helps confirm whether the ESC was the actual root cause.
⚠️ Contamination Control Is Critical
ESC surfaces directly interact with wafers. Improper handling can introduce particles that affect yield immediately after installation.
Dynamic FAQ
Q1. What is the LAM 853-002499-200 used for?
The 853-002499-200 is an Electrostatic Chuck (ESC) assembly used in Lam Research semiconductor equipment for wafer holding and thermal control functions.
Q2. Is the ESC a controller or electronic module?
No. The ESC is a process chamber hardware component. It works with the equipment control system but is not a standalone controller.
Q3. What symptoms indicate an ESC replacement may be needed?
Common indicators include:
- Wafer temperature instability
- Poor process uniformity
- Chucking alarms
- Backside cooling problems
- Increased particle defects
Q4. Can the 853-002499-200 replace any Lam ESC assembly?
No. ESC assemblies are chamber-specific. Confirm the Lam tool model, chamber configuration, and installed revision before ordering.
Q5. What should buyers verify for New Surplus ESC inventory?
Recommended checks:
- Original part labeling
- Surface condition
- Storage history
- Electrical inspection records
- Packaging cleanliness
Q6. What warranty applies to this type of semiconductor spare?
Warranty coverage depends on supplier classification. Confirm whether the unit is New Surplus, Refurbished, or Used and request available inspection documentation before purchase.
