Product Introduction & Engineering Value
A failed arm drive interface board can stop wafer handling operations immediately. The LAM 810-091934-00 is a specialized PCB assembly designed for Lam Research semiconductor processing equipment, supporting equipment motion and handling control functions.
Maintenance teams typically source this assembly when keeping mature Lam platforms operational. Correct replacement requires matching the complete part number, board revision, and equipment configuration before installation.
Technical Specifications
Core Technical Details
- Manufacturer: Lam Research
- Part Number: 810-091934-00
- Assembly Type: Printed Circuit Board Assembly (PCBA)
- Known Description: Arm Drive Interface PCB Assembly (related 810-091934 series identification)
- Primary Function: Interface between equipment control electronics and mechanical arm drive systems
- Application Area: Semiconductor wafer processing equipment
- Equipment Class: Automated wafer handling / process tool control hardware
- Installation Location: Tool electronics compartment or controller assembly
- Replacement Category: OEM maintenance spare
- Handling Requirement: ESD-controlled handling required
- Lifecycle Role: Legacy equipment repair and uptime support
Field Application & The “Trench” Experience
A wafer fabrication site operating an older Lam Auto Etch platform began experiencing intermittent wafer transfer faults. The symptoms appeared inconsistent: some cycles completed normally, while others generated arm positioning alarms during cassette-to-process-chamber transfer.
The maintenance team traced the problem to the arm drive interface electronics. Instead of replacing the complete equipment controller, they installed a verified LAM 810-091934-00 replacement assembly during a planned maintenance window. After connector inspection, configuration verification, and motion calibration checks, the handling sequence returned to normal operation. Similar 810-091934-001 assemblies are identified in the aftermarket as Lam Auto Etch board components, indicating this part family is associated with legacy Lam handling systems.
Typical applications include:
- Wafer Transfer Robot Control Systems — maintaining automated substrate movement functions inside process tools.
- Lam Auto Etch Equipment Maintenance — supporting older etch platforms where controller-level replacement is preferred over full tool migration.
- Semiconductor Equipment Refurbishment Projects — restoring used production tools for additional manufacturing capacity.
Transparency SOP: QA & Testing
Every replacement LAM 810-091934-00 assembly should go through a documented inspection process:
- Identity Verification
- Confirm Lam Research labeling and complete part number.
- Compare revision markings against the failed unit.
- PCB Condition Inspection
- Examine connectors, solder joints, components, and board surfaces.
- Check for contamination, corrosion, or mechanical damage.
- Electrical Screening
- Perform continuity and component-level checks where applicable.
- Verify no obvious power-related failures exist.
- Functional Validation
- When compatible equipment is available, test arm interface communication and operational response.

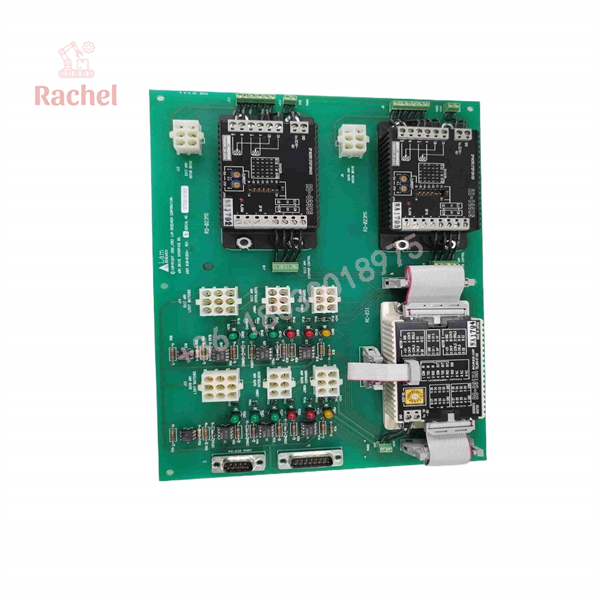

810-091934-00

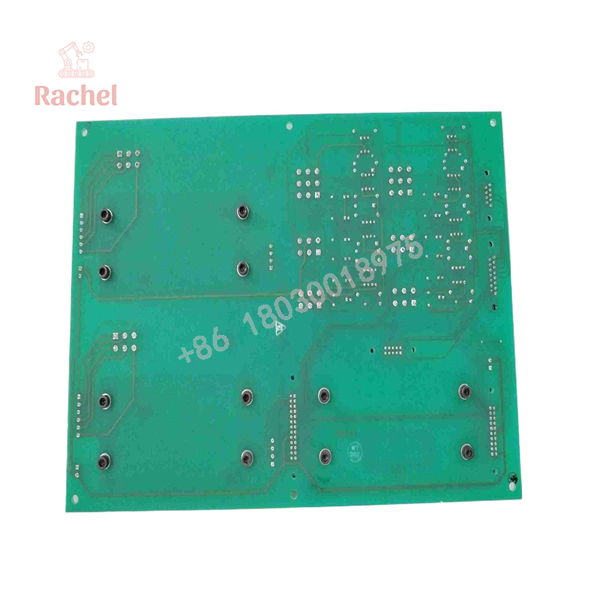

810-091934-00
The Veteran’s Tech Trap Guide
⚠️ Do Not Ignore Revision Differences
Semiconductor equipment boards often have small hardware revisions that affect compatibility. A similar-looking PCB may not operate correctly in the target Lam platform.
⚠️ Connector Damage Is Common During Replacement
Arm interface boards are frequently located in service areas with repeated maintenance access. Inspect mating connectors carefully before installation.
PRO TIP: Save the original board configuration information before removal. Record cable positions, connector labels, and controller alarm history.
⚠️ Motion Calibration May Be Required
After replacing a handling interface assembly, some tools may require verification of arm position parameters or motion calibration routines.
Dynamic FAQ
Q1. What is the LAM 810-091934-00 used for?
The 810-091934-00 is a Lam Research semiconductor equipment PCB assembly associated with arm drive interface functions. Exact usage depends on the installed Lam tool configuration.
Q2. Is this part compatible with all Lam etch systems?
No. Lam platforms use different electronics assemblies. Always verify the equipment model, installed board revision, and replacement documentation.
Q3. Is a New Surplus LAM 810-091934-00 unused?
New Surplus typically refers to unused inventory acquired outside normal current production distribution channels. Buyers should request condition details and inspection records.
Q4. What should be checked before installation?
Confirm:
- Part number
- Board revision
- Connector condition
- Tool compatibility
- Required calibration procedures
Q5. Can refurbished units be used in semiconductor equipment?
Yes, when properly inspected and tested. Refurbishment quality depends on electrical screening, component inspection, and functional verification procedures.
Q6. What warranty is normally offered for this spare?
Warranty coverage depends on the supplier and inventory condition. Confirm warranty period, return policy, and test documentation before purchasing.
