Description
Core Product Summary
The Lenze EPL10200-W is a compact drive PLC controller and automation module designed for integrated motion control, drive coordination, and local signal management within industrial machine architectures. Operating on a standard 24 VDC power supply, this basic unit combines control logic processing with localized input and output handling to streamline machine automation tasks.
Engineered for seamless integration into Lenze automation ecosystems, the controller provides reliable performance in continuous industrial operating environments. It features an onboard arrangement of digital and analog channels, offering the necessary hardware flexibility to interface with sensors, actuators, and drives across packaging, material handling, and general processing machinery.
Key Technical Specifications
| Specification | Verified Value / Parameter |
| Brand / Manufacturer | Lenze |
| Product Family | EPL Series Drive PLC |
| Model / Order Code | EPL10200-W (EPL-10200) |
| Device Type | Compact Drive PLC / Basic Unit |
| Operating Supply Voltage | 24 VDC |
| Digital Inputs / Outputs | 8 Digital Inputs / 4 Digital Outputs |
| Analog Inputs / Outputs | 3 Analog Inputs / 1 Analog Output |
| Application Scope | Industrial automation, motion control, and drive integration |
Detailed Product Overview
The Lenze EPL10200-W serves as a high-functionality control node tailored for decentralized machine automation and motion applications. By combining PLC logic with drive-oriented features, the module allows engineers to manage precise axis coordination and standard machine interlocks from a single compact enclosure footprint.
In automated production lines, the controller processes incoming sensor signals through its multi-channel digital and analog I/O configuration, executing control programs to govern connected drives and auxiliary devices. Its compact form factor facilitates straightforward installation inside standard control cabinets, making it an effective solution for both new panel builds and legacy system maintenance upgrades.
Proper system design requires matching the module’s 24 VDC power requirements and ensuring that field wiring adheres to standard industrial electrical practices to minimize noise interference on analog channels.
Dimensions, Mounting & Connection Notes
- Form Factor: Compact modular layout intended for standard industrial control cabinet or panel installation.
- Power Connection: Connects to a dedicated 24 VDC supply rail.
- Signal Wiring: Employs front-accessible connector blocks for digital and analog signal routing.
- Handling Precautions: Standard electrostatic discharge (ESD) precautions should be observed during handling and installation to protect sensitive internal circuitry.

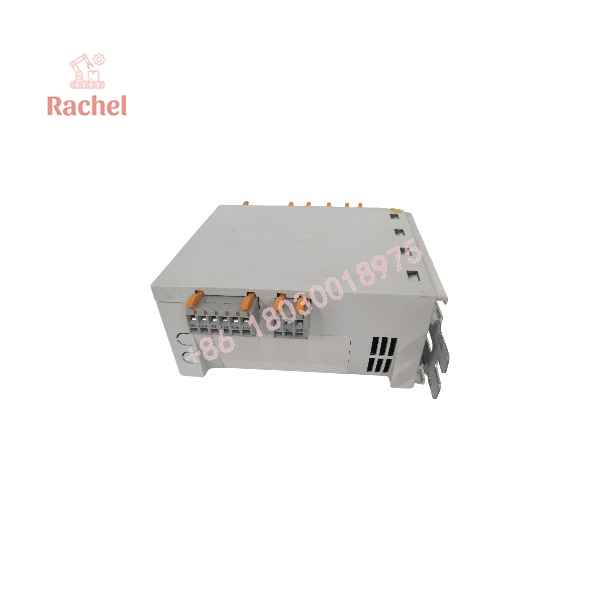

EPL10200-W

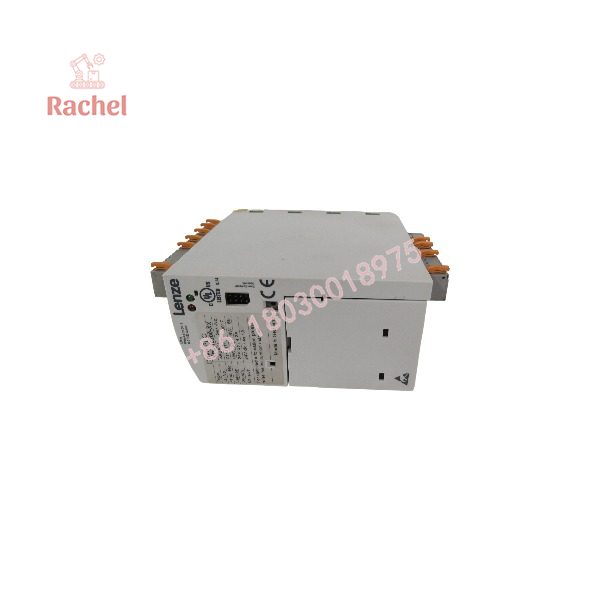

EPL10200-W
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| System Platform | Lenze automation and drive platforms | Designed for native integration within Lenze control ecosystems |
| Power Supply | 24 VDC regulated industrial power source | Must maintain voltage stability within specified margins |
| Enclosure Mounting | Standard industrial control panel or cabinet | Protects internal electronics from dust and moisture exposure |
| I/O Interfacing | Multi-pin connectors / terminal blocks | Verify pin assignment maps prior to connecting field devices |
FAQ
What is the Lenze EPL10200-W?
The Lenze EPL10200-W is a compact drive PLC controller designed for integrated motion control, logic processing, and signal management in industrial automation systems.
What power supply does the unit require?
The controller operates on a nominal 24 VDC industrial power supply.
How many I/O channels are available on the unit?
The basic unit includes 8 digital inputs, 4 digital outputs, 3 analog inputs, and 1 analog output.
What applications are suited for this controller?
It is deployed in packaging machines, material handling systems, and general industrial processing lines utilizing Lenze automation platforms.
Documented Performance Data
| Metric | Value / Range | Operating Condition |
| Digital I/O Configuration | 8 Inputs / 4 Outputs | Standard logic level operation |
| Analog I/O Configuration | 3 Inputs / 1 Output | Process signal measurement and control |
| Nominal Voltage | 24 VDC | Standard control cabinet supply |
