Description
Product Introduction
The MAN B&W 1142354-4 Revision 1 is an updated hardware revision of the established 1142354-4 electronic engine control PCB. Installed inside Local Control Panels (LCP), Engine Control Room (ECR) cabinets, or main safety racks on MAN two-stroke and four-stroke marine diesel engines, Revision 1 incorporates improved trace isolation, upgraded filtering capacitors, and refined analog signal conditioning over Revision 0 baseboards.
Engineered to operate in high-vibration engine room environments, the 1142354-4 REV 1 processes speed pickup sensor pulses, fuel rack position signals, and emergency shutdown interlocks. Replacing a degraded board with this exact Revision 1 card restores governor stability and safety trip logic without needing panel rewiring or enclosure modifications.
Key Technical Specifications
| Parameter | Value |
| Model / Hardware Rev | 1142354-4 (Revision 1 / REV 1) |
| Compatibility | MAN B&W Marine Engines & Generator Control Panels |
| Operating Voltage | 24VDC Nominal (18V to 32VDC Marine Standard) |
| Signal Inputs | Magnetic speed pickups, analog temperature/pressure loops, safety interlocks |
| Control Outputs | Governor actuator drive channels, relay drivers, alarm triggers |
| Revision Changes | Upgraded noise filtering, reinforced power rail traces, enhanced relay isolation |
| Environmental Protection | Heavy marine conformal coating (saline/humidity protection) |
| Operating Temperature | -15°C to +70°C |
| Terminations | Pluggable green screw terminal blocks |
Application Scenarios & The “Trench” Experience
A 60,000 DWT container ship experienced intermittent governor speed hunting while running its auxiliary generator under heavy electrical load. Diagnostics pointed to high-frequency ripple on the signal input stage of an older Revision 0 board (1142354-4). Replacing it with the upgraded 1142354-4 Revision 1 module—which includes additional noise decoupling across the input pins—eliminated signal jitter and stabilized generator frequency instantly.
- MAN B&W Main Propulsion Engines – Managing electronic governor control loops, speed monitoring, and safety interlocks.
- Shipboard Auxiliary Generator Sets – Maintaining accurate speed regulation and load sharing across auxiliary diesel units.
- Offshore Platform Power Modules – Executing high-reliability engine monitoring under continuous high-load operations.
Field Case Study
During a sea trial following drydock maintenance, an engine control console failed its remote safety shutdown test due to pitted relay contacts on an older control card. We delivered a pre-tested 1142354-4 REV 1 module directly to the berth. The ship’s electrician transferred the pluggable terminal strips, matched onboard configuration DIP switches, and passed classification society re-inspection on the first attempt.

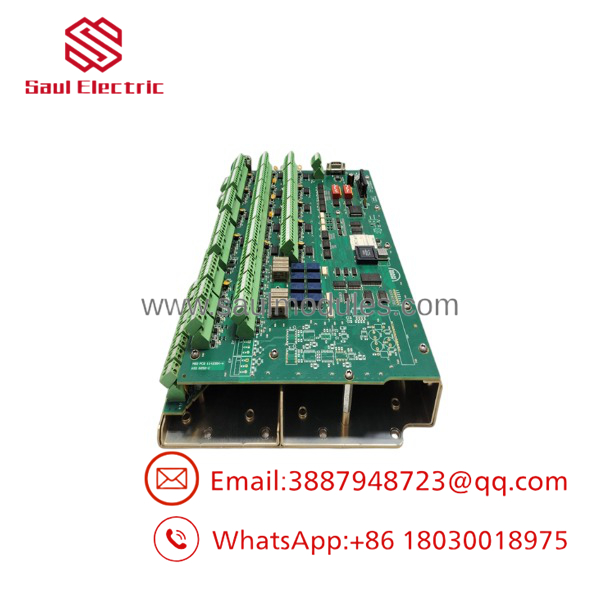

1142354-4 REV 1

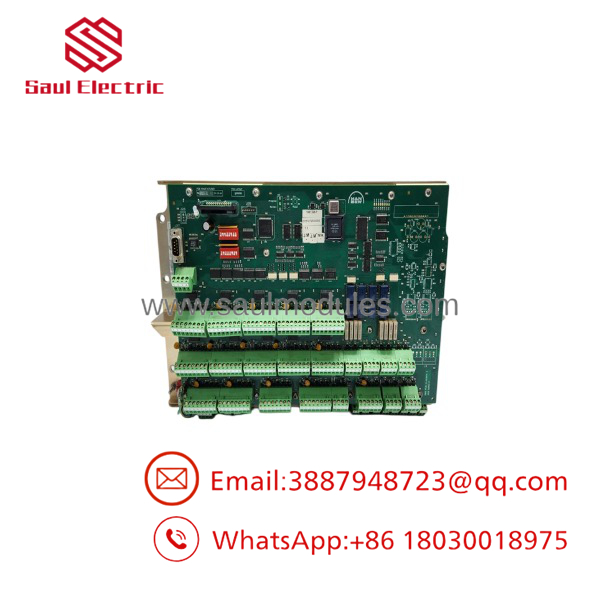

1142354-4 REV 1
Transparency SOP: Quality Assurance & Testing
Every MAN B&W 1142354-4 Revision 1 board undergoes rigorous bench testing before entering ready-to-ship inventory:
- Microscopic & PCB Audit: Inspecting trace integrity, solder pads, and edge connectors for thermal fatigue, component stress, or salt mist oxidation.
- Dual-Power Rail Test: Supplying 24VDC across low (18V) and high (32V) thresholds to verify onboard DC-DC converter stability and voltage regulator performance.
- Speed Pulse & Sensor Simulation: Injecting simulated speed pickup pulses and analog loop signals to verify conversion linearity without drift.
- Relay Driver Load Test: Exercising output drive channels under simulated load to confirm clean relay switching.
- ESD Static Shield Packaging: Cleaning terminal connectors and sealing the board inside heavy anti-static ESD moisture-barrier packaging.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Revision Compatibility Check: Revision 1 is fully backward-compatible with Revision 0 hardware footprints and terminal pinouts. However, always verify that onboard hardware jumper blocks and multi-turn potentiometer settings match your existing board before powering up.
- ❗ Document DIP Switches & Potentiometer Positions: Before removing the old 1142354-4 module, take clear photos of all DIP switch positions and potentiometer dials. Calibration settings vary across engine models and governor drive setups.
- ⚠️ Never Swap Terminal Connectors Under Live Power: Isolate the 24VDC power supply before pulling or re-seating the green terminal blocks. Inductive arcing across input sensing pins can destroy sensitive onboard microprocessors.
- ❗ Verify Panel 24V Supply Quality: If the original board failed due to shorted components, test the output voltage ripple of your cabinet’s 24VDC power supply. Excessive AC ripple from failing battery chargers can damage replacement modules.
Frequently Asked Questions (FAQ for Conversion)
Q: Can I use 1142354-4 Revision 1 to replace a Revision 0 or un-revised board?
A: Yes. Revision 1 uses the same form factor, mounting footprint, and terminal block pinout as earlier revisions, with improved onboard signal filtering and trace durability.
Q: Does this board require software flashing or programming?
A: No. In most MAN engine control configurations, this card functions as a hardware interface and signal conditioning module configured via hardware DIP switches and jumpers.
Q: Are the pluggable terminal blocks included with the board?
A: Yes, our tested surplus and refurbished 1142354-4 REV 1 units come complete with verified pluggable terminal blocks.
Q: How quickly can this board be shipped for an urgent vessel in port?
A: We offer same-day dispatch and express worldwide delivery directly to port agent addresses to meet tight sailing windows.
Q: What warranty coverage is provided on this marine module?
A: Every MAN B&W 1142354-4 REV 1 board—whether factory-sealed new surplus or bench-tested refurbished—includes a complete 12-month replacement warranty.
