Description
Product Introduction
The Matrox VPM-80243X is a dedicated high-performance vision processing module developed by Matrox Imaging for high-throughput industrial and medical image acquisition. Built to offload intensive video stream digitizing, matrix convolutions, and image scaling from host CPUs, the VPM-80243X serves as a real-time signal engine in automated optical inspection (AOI) systems.
Featuring high-bandwidth onboard memory and custom FPGA processing pipelines, the card captures high-resolution video frames with zero latency drops. Its industrial-grade construction ensures immunity to electromagnetic noise, making it a reliable component in semiconductor inspection tools, automated X-ray platforms, and high-speed web inspection machinery.
Key Technical Specifications
| Parameter | Value / Feature |
| Manufacturer | Matrox Imaging |
| Product Line | Vision Processing Modules (VPM) |
| Model Code | VPM-80243X |
| Primary Function | High-speed video acquisition & real-time frame processing |
| Channel Support | Multi-input camera/video source digitizing |
| Onboard Memory | Integrated high-speed RAM buffer for zero-drop frame transfer |
| Processing Engine | Hardware-accelerated FPGA/DSP image filtering pipeline |
| System Interface | PCI Express (PCIe) or legacy system bus architecture |
| Operating Temp | 0°C to 55°C (32°F to 131°F) |
Application Scenarios & The “Trench” Experience
An automated PCB assembly line suffers intermittent camera trigger drops on its high-speed component placement head. The host PC processor saturates while decoding raw video feeds, causing the line to misalign surface-mount chips and trip false fault alarms. Installing a verified Matrox VPM-80243X hardware processor offloads pixel decoding directly onto the module’s onboard FPGA logic, restoring sub-millisecond vision tracking and eliminating line stoppages.
- Semiconductor Wafer Inspection: Processes high-magnification optical feeds to detect microscopic silicon defects in real time.
- Medical Diagnostic Imaging: Handles raw video signals from fluoroscopy, endoscopes, and ultrasound systems.
- High-Speed Web Inspection: Monitors continuous paper, film, or sheet-metal lines for surface defects at high web speeds.
- Automated Package Sorting: Captures and decodes high-speed 2D barcodes on logistics conveyor lines.
Transparency SOP: Quality Assurance & Testing
- Inbound Mechanical Audit: Inspect gold edge-finger contacts, verify retention bracket alignment, check surface SMT capacitors for thermal stress, and confirm clean board traces.
- Benchtop Power & POST Check: Install unit into a hardware diagnostic motherboard; verify PCI/bus enumeration, check power-on self-test (POST) status, and check logic rails.
- Multi-Channel Video Stream Stress Test: Feed high-resolution video patterns into input channels; verify zero frame dropping during extended image acquisition loops.
- Onboard Processing Pipeline Test: Execute Matrox Imaging Library (MIL) algorithms to stress FPGA filter routines and confirm memory buffer stability.
- ESD Protection & Dispatch: Seal inside static-shielding bags, protect with high-density anti-static foam, and ship in reinforced corrugated cartons.

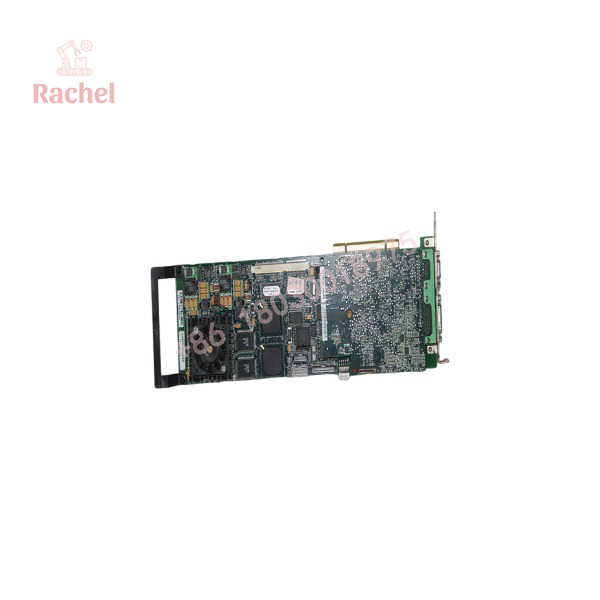

VPM-80243X

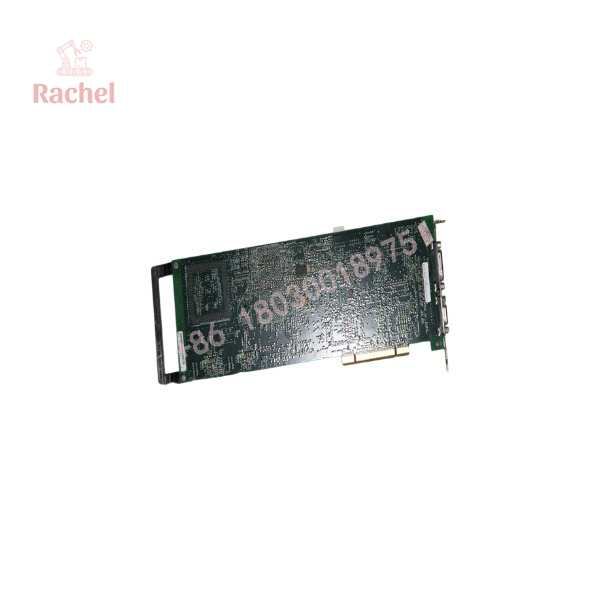

VPM-80243X
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Match Matrox Imaging Library (MIL) Drivers: Matrox frame grabbers are sensitive to software driver versions. Ensure the MIL build loaded on your vision PC matches the hardware revision of the VPM-80243X card to avoid initialization timeouts.
- ❗ Observe Camera Pixel Clock Limits: Verify that your connected camera’s pixel clock rate does not exceed the maximum input sampling rate of the VPM-80243X to prevent image tear or skewed frame buffers.
- ⚠️ Provide Adequate Enclosure Airflow: Video processing cards run hot when executing continuous FPGA matrix operations. Ensure your industrial chassis fan filters are clean to prevent thermal throttling.
- ❗ Check Shielded Camera Cabling: High-frequency camera signals pick up EMI from nearby VFDs or servo drives. Always use double-shielded Camera Link or coaxial cables grounded at the chassis faceplate.
Frequently Asked Questions (FAQ)
Q: What software framework is used to program the Matrox VPM-80243X?
A: The board is configured using the Matrox Imaging Library (MIL) software development kit, which provides C++ and .NET APIs for camera setup and image processing routines.
Q: Can the VPM-80243X process video streams autonomously without host CPU overhead?
A: Yes. The onboard processing engine performs operations like LUT conversions, thresholding, and frame filtering directly on the card before transferring finished image buffers to host RAM.
Q: What is the primary indicator of a video acquisition failure on this card?
A: Common symptoms include missing trigger alarms in MIL software, corrupted horizontal sync lines, or system error codes indicating frame buffer underflow.
Q: Is this card hot-swappable?
A: No. PCIe and subrack expansion cards are not hot-swappable. Always isolate power to the host system before removing or inserting the module.
Q: What warranty applies to this surplus module?
A: All clean surplus and bench-tested Matrox VPM-80243X vision processing cards carry a full 12-month replacement warranty from the delivery date.
