Description
Product Introduction & Engineering Value
Vacuum stability is a production-critical factor in semiconductor processing. The MKS HPS 839-13521-1 isolation valve is used in Lam Research vacuum systems to control chamber and pumping-line isolation during process sequences. It is identified in aftermarket semiconductor equipment inventories as an MKS Lam 4420 isolation valve assembly.
A failing isolation valve can create slow pump-down, pressure instability, contamination concerns, or process interruptions. Replacement requires careful matching of valve configuration, flange type, pneumatic supply requirements, and the specific Lam tool installation.
Technical Specifications
Core Technical Parameters
| Parameter | Specification |
|---|---|
| Manufacturer | MKS Instruments HPS |
| Part Number | 839-13521-1 |
| Application | Lam Research semiconductor process equipment |
| Valve Type | Pneumatic angle isolation valve |
| Primary Function | Vacuum isolation and chamber/pump line control |
| Actuation Method | Pneumatic actuator |
| Vacuum Application | High-vacuum semiconductor process systems |
| Seal Technology | Metal-seal vacuum isolation design |
| Typical Material | Stainless steel vacuum wetted components |
| Feedback Function | Position indication available depending on configuration |
| Installation Area | Process chamber vacuum manifold / pumping system |
| Maintenance Category | Critical process vacuum spare |
Field Application & The “Trench” Experience
A semiconductor fab running a mature Lam etch platform began experiencing inconsistent chamber pump-down times. Operators noticed that some lots required extended conditioning before reaching stable pressure, while others completed normally.
The maintenance team first checked the turbo pump, throttle valve response, and pressure measurement devices. The investigation eventually identified leakage through the chamber isolation path caused by an aging isolation valve assembly.
During a scheduled preventive maintenance window, engineers replaced the failed valve with an MKS 839-13521-1 unit, verified pneumatic operation, performed leak testing, and confirmed pressure recovery performance.
The tool returned to production without replacing the larger vacuum subsystem.
Typical application scenarios include:
- Lam Etch Chamber Vacuum Isolation
- Controlling chamber separation from roughing and high-vacuum pumping paths.
- Deposition Process Vacuum Manifolds
- Maintaining pressure control integrity during film deposition sequences. Lam Research uses vacuum-controlled platforms across deposition product families including CVD and PECVD systems.
- Semiconductor Equipment Refurbishment
- Replacing aging vacuum hardware during restoration of legacy production tools.

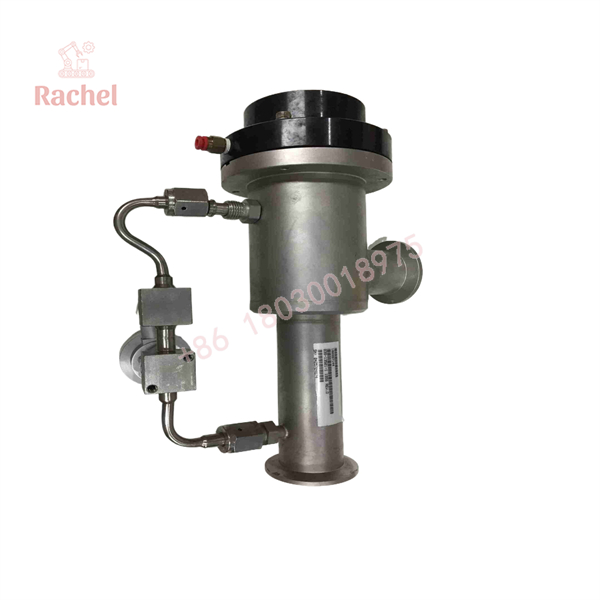

839-13521-1
Transparency SOP: QA & Testing
A replacement MKS 839-13521-1 valve should be evaluated through a structured process:
Inspection and Validation Checklist
✓ Verify valve identification label and part number.
✓ Inspect body condition, fittings, and actuator housing.
✓ Check for contamination, corrosion, or mechanical damage.
✓ Verify pneumatic actuator movement.
✓ Confirm valve open/close response.
✓ Perform vacuum leak testing where equipment is available.
✓ Record test results before inventory release.
The Veteran’s Tech Trap Guide
⚠️ Do Not Install Without Leak Verification
A valve can mechanically actuate while still failing vacuum requirements. Semiconductor applications require leak performance verification after installation.
⚠️ Pneumatic Supply Problems Can Mimic Valve Failure
Before replacing the valve, confirm clean dry air supply, pressure level, and solenoid operation. A weak actuator signal can produce the same symptoms.
PRO TIP: Record the original valve position feedback behavior before removal. Incorrect feedback wiring can prevent tool startup even when the valve operates mechanically.
⚠️ Contamination Control Matters
Vacuum valves installed in semiconductor tools must be protected from particle contamination. Avoid exposing internal surfaces during maintenance.
Dynamic FAQ
Q1. What is the MKS 839-13521-1 used for?
The MKS 839-13521-1 is a pneumatic vacuum isolation valve used in semiconductor equipment applications, including Lam Research process tools.
Q2. Is the 839-13521-1 a Lam Research manufactured valve?
The valve is associated with Lam Research equipment but is manufactured by MKS HPS as a vacuum component supplier.
Q3. What symptoms indicate this valve may need replacement?
Common indicators include:
- Slow pump-down
- Vacuum instability
- Pressure control alarms
- Valve position feedback errors
- Process interruption during chamber transitions
Q4. What should be verified before ordering this valve?
Confirm:
- Complete part number
- Valve revision
- Flange configuration
- Pneumatic requirements
- Installed Lam equipment model
Q5. Is New Surplus inventory suitable for semiconductor tools?
Yes, provided the valve has been stored correctly, inspected, and verified for mechanical and vacuum performance.
Q6. What warranty is typically provided?
Warranty coverage depends on supplier classification. Buyers should confirm whether the unit is New Surplus, Refurbished, or Used and request available inspection or test documentation before purchase.
