Core Product Summary
The Eaton MTL F271-IS is a 12-way intrinsically safe fieldbus Megablock wiring hub engineered for Foundation Fieldbus networks deployed in hazardous industrial environments. Part of the MTL F2xx-IS product family, this DIN-rail mounted passive distribution component connects up to 12 individual intrinsically safe field instruments to the main network trunk cable while supplying built-in short-circuit protection to safeguard the entire segment.
Engineering integration is anchored by an integrated network terminator and heavy-duty screw terminals for secure cable management. The unit features automatic SpurGuard™ short-circuit protection on each spur, preventing a faulted instrument or damaged cable from pulling down the entire communication loop. It is fully certified for installation in explosive hazardous atmospheres and harsh process automation applications.
Key Technical Specifications
| Parameter | Specification Value |
| Product Type | Intrinsically Safe Fieldbus Megablock Wiring Hub |
| System Series | MTL F2xx-IS Series |
| Capacity / Spur Connections | 12-Way (connects up to 12 field devices) |
| Terminator Configuration | Internal network terminator included |
| Spur Short Circuit Protection | SpurGuard™ current limiting (approx. 40 mA rating) |
| Enclosure Material | Polycarbonate housing |
| Mounting Type | DIN-rail mounting |
| Terminal Type | Standard screw terminals |
| Operating Temperature Range | -50 °C to +70 °C (-58 °F to +158 °F) |
| Dimensions (W x H x D) | Approx. 188.4 x 69.1 x 50.5 mm (7.42 x 2.72 x 1.99 in.) |
| Certifications & Approvals | ATEX, IECEx (Intrinsically Safe / Zone 1 deployment) |
Detailed Product Overview
The MTL F271-IS serves as a localized, passive distribution hub designed to simplify wiring topology in Foundation Fieldbus architectures. By consolidating multiple instrument drops into a single trunk connection, it minimizes junction box clutter and reduces installation labor in complex plant layouts.
Integrators benefit from its intrinsic safety design, which permits live maintenance and device connection within hazardous processing areas without risking ignition sources. Each individual spur output incorporates automatic electronic short-circuit protection; if a field spur experiences a short, the Megablock isolates that specific channel instantly, keeping the remaining 11 instruments and the primary trunk fully operational.

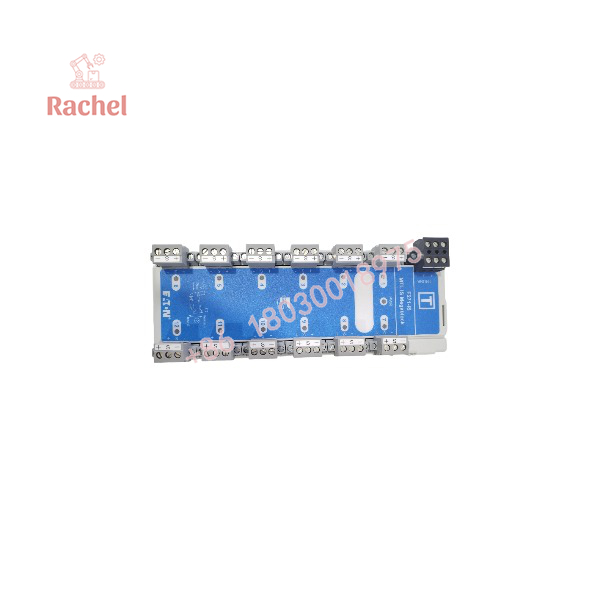

F271-IS

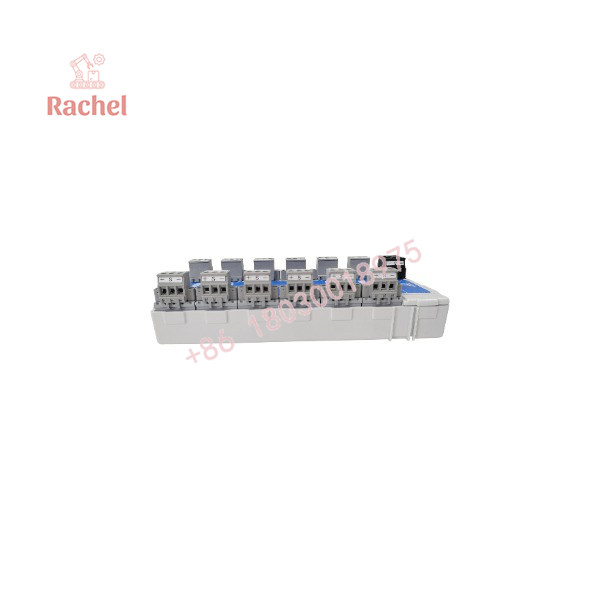

F271-IS
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| Network Protocol | Foundation Fieldbus H1 networks | Designed specifically for digital fieldbus architectures requiring FISCO/Entity IS compliance. |
| Hazardous Area Installation | Zone 1 and Zone 2 hazardous locations | Requires placement inside an approved protective enclosure matching the local hazardous area classification. |
| Trunk & Spur Cabling | Shielded twisted-pair instrument cable | Cable parameters must conform to fieldbus safety standards (IEC 61158-2). |
| Wire Capacity & Torque | 0.14 to 2.5 mm² solid or stranded wire | Recommended terminal screw torque setting is 0.5 to 0.6 Nm to ensure reliable contact under vibration. |
Dimensions, Mounting & Connection Notes
- Physical Dimensions: Measures approximately 188.4 mm wide x 69.1 mm high x 50.5 mm deep.
- Mounting Style: Snaps directly onto standard DIN rails inside field junction boxes or marshalling cabinets.
- Terminal Connections: Front-facing screw terminal blocks accommodate trunk input/output lines and 12 individual device spurs.
- Grounding Considerations: Features dedicated grounding paths to properly terminate cable shields and protect against electromagnetic interference (EMI).
FAQ
What is the Eaton MTL F271-IS?
The F271-IS is a 12-way intrinsically safe fieldbus Megablock hub used to connect multiple field instruments to a Foundation Fieldbus network trunk.
Does the F271-IS include a network terminator?
Yes, this specific model includes an internal network terminator, eliminating the need to install a separate standalone termination component at the end of the segment.
How does the unit protect against short circuits?
It features automatic SpurGuard™ current-limiting protection on every spur, which isolates faulted field loops without disrupting the main communication trunk.
Is the MTL F271-IS approved for hazardous areas?
Yes, it carries ATEX and IECEx certifications for intrinsic safety, making it suitable for use in Zone 1 and Zone 2 hazardous environments.
What wire sizes are compatible with the screw terminals?
The terminal blocks accept wire sizes ranging from 0.14 to 2.5 mm², secured with a recommended torque of 0.5 to 0.6 Nm.
