MYCOM UPS52-113CE Stepper Drive Unit

Description

Product Introduction & Engineering Value

Motion failures are often misdiagnosed as motor problems. In older CNC and precision machinery, the actual fault can originate from the drive electronics, pulse input circuit, or current regulation stage. The MYCOM UPS52-113CE serves as the power interface between the machine controller and the stepping motor.

For legacy equipment still producing critical parts, replacing a failed drive module is often faster and less disruptive than redesigning the motion system. The UPS52-113CE allows maintenance teams to preserve the original motor characteristics, mechanical tuning, and machine parameters.

Technical Specifications

Field Application & The “Trench” Experience”

A precision grinding machine at an automotive component supplier began losing axis positioning accuracy during long production cycles. The machine would complete startup checks normally, but occasional step losses appeared during high-speed movement.

The maintenance team first checked the motor coupling, mechanical alignment, and encoder feedback. The motor itself showed no abnormal mechanical behavior. Further testing revealed unstable drive output from the aging MYCOM UPS52-113CE unit.

After replacing the driver with a verified spare and restoring the original current and pulse settings, the machine returned to stable operation without changing the CNC controller or mechanical assembly.

Typical application scenarios include:

• CNC Grinding Equipment — controlling precision feed axes and positioning mechanisms
• Wire Processing Machines — driving tension rollers and indexing systems
• Semiconductor Manufacturing Equipment — supporting repeatable micro-positioning tasks

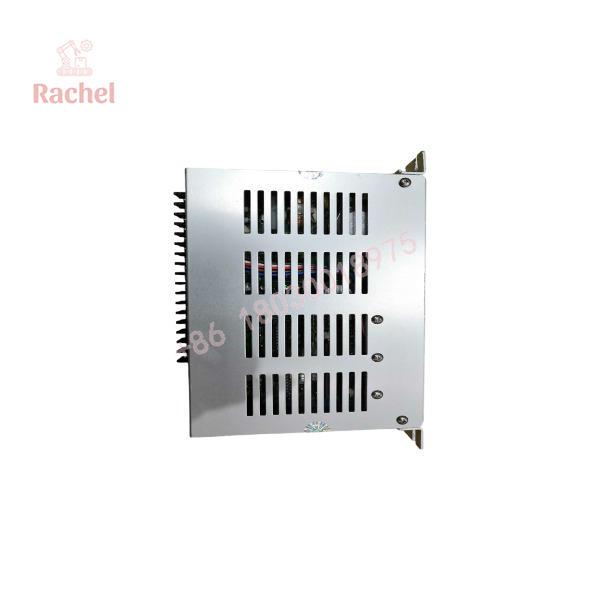

UPS52-113CE

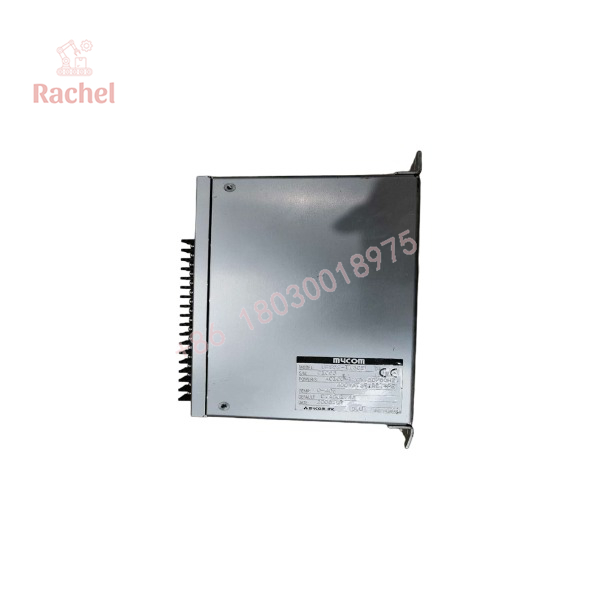

UPS52-113CE

Transparency SOP: QA & Testing

A MYCOM UPS52-113CE new surplus or refurbished unit should go through:

Quality Verification Process

• Confirm MYCOM model label and UPS52-113CE identification.
• Inspect enclosure, connectors, and terminal blocks.
• Check PCB condition for corrosion, overheating marks, or damaged components.
• Verify input power response.
• Test motor output behavior with compatible stepping motor equipment.
• Check pulse command response.
• Verify current output stability.
• Record test results and warranty information.

A stepper drive should not be considered functional based only on power-up. Load testing is important because many drive faults appear only during motor operation.

The Veteran’s Tech Trap Guide

⚠️ Do not replace the driver without recording motor settings.

Stepper systems depend on current settings, acceleration parameters, and pulse timing. Incorrect configuration can create missed steps or excessive motor heating.

⚠️ Verify motor compatibility before installation.

A drive may physically connect to the machine but still be electrically unsuitable for the installed motor.

PRO TIP: Photograph terminal wiring and record every adjustment switch position before removing the original UPS52-113CE.

⚠️ Watch for aging wiring problems.

Older motion systems often develop connector oxidation or cable fatigue. A replacement drive may expose existing wiring issues that were previously masked.

Dynamic FAQ

Q1: What is the MYCOM UPS52-113CE used for?
The UPS52-113CE is a MYCOM stepping motor driver used for industrial precision motion control applications.

Q2: What is the power rating of the UPS52-113CE?
The unit is identified as a 400VA stepper drive with AC100–120V input.

Q3: Is the UPS52-113CE a servo amplifier?
No. It is designed for stepping motor control rather than closed-loop servo motor operation.

Q4: Can the UPS52-113CE directly replace another MYCOM drive?
Not always. Confirm motor specifications, voltage requirements, current settings, wiring, and controller pulse signals before replacement.

Q5: How are refurbished UPS52-113CE units tested?
Testing should include electrical inspection, power verification, pulse response testing, motor load evaluation, and documentation of results.

Q6: Is the MYCOM UPS52-113CE still manufactured?
The UPS52-113CE is considered a legacy motion-control component. Availability typically depends on remaining industrial surplus inventory and repair stock.

Q7: What information should be provided when sourcing a replacement UPS52-113CE?
Provide the machine model, motor model, existing drive settings, wiring photos, input voltage, and application details.
