NABCO MG-800 ADU-120-R Actuator Drive Unit

Description

Product Introduction & Engineering Value

Engine speed control depends on precise coordination between the governor controller, actuator drive, and fuel control mechanism. The NABCO MG-800 ADU-120-R is the actuator drive unit responsible for converting governor control commands into actuator movement within the marine propulsion control system.

The ADU-120-R belongs to the NABCO MG-800 Governor System platform, a system commonly maintained on existing marine vessels. Replacement requires verification of actuator model, control unit compatibility, wiring configuration, and operating voltage before installation.

Technical Specifications

Supplier listings identify the ADU-120-R as a NABCO MG-800 Governor System Actuator Drive Unit with an approximate weight of 55.93 kg.

Field Application & The “Trench” Experience

A bulk carrier operating with an aging NABCO MG-800 governor system began showing unstable engine speed response during maneuvering tests. The engine itself was mechanically healthy, but speed fluctuations appeared when bridge commands changed rapidly.

The engineering team checked the control unit, feedback signals, and actuator linkage. After confirming that the actuator drive section was not responding correctly, the failed ADU assembly was identified as the source of the issue.

A replacement NABCO ADU-120-R was prepared after confirming MG-800 system compatibility. The team completed mechanical installation, verified electrical connections, calibrated the actuator response, and performed load testing.

The vessel returned to normal engine control operation without replacing the entire governor system.

Typical application scenarios:

• Main engine governor system restoration
• Marine propulsion speed control maintenance
• MG-800 actuator drive replacement
• Shipyard overhaul projects involving legacy engine control systems

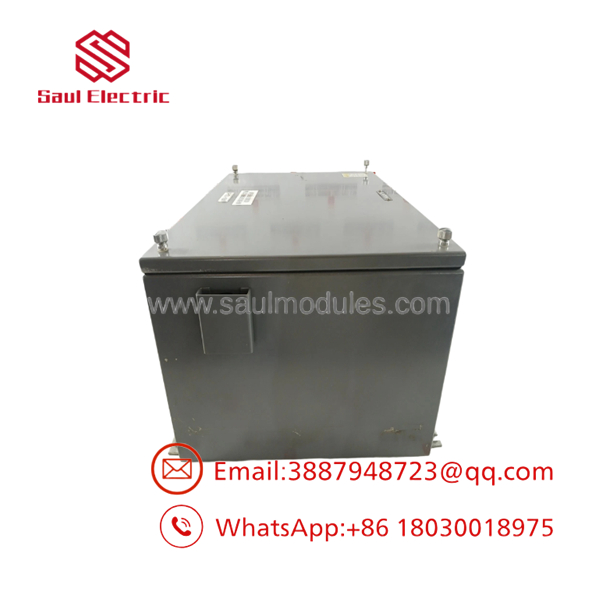

MG-800 ADU-120-R

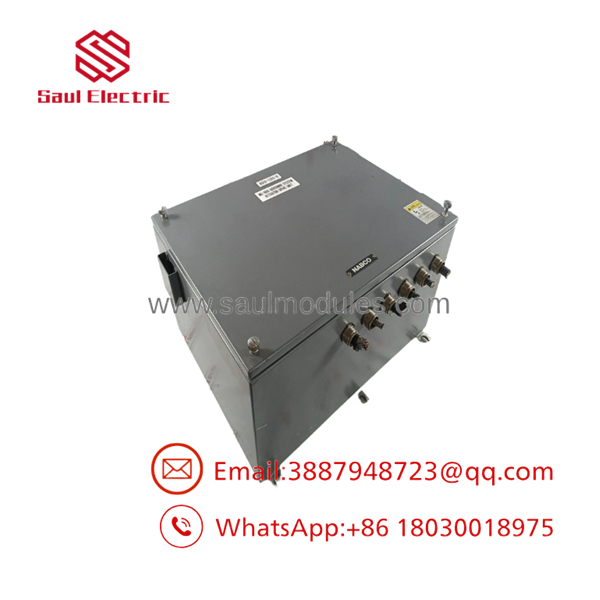

MG-800 ADU-120-R

Transparency SOP: QA & Testing

The ADU-120-R is a precision electromechanical assembly. Inspection focuses on both electronic and mechanical condition.

Testing workflow:

1. Identification Verification

• Confirm NABCO/Nabtesco marking.
• y model.
• Confirm MG-800 system compatibility.

2. Mechanical Inspection

• Check actuator drive housing.
• Inspect shafts, mounting points, and connectors.
• Verify no impact damage or corrosion.

3. Electrical Testing

• Check input power circuits.
• Verify motor drive response.
• Inspect internal electrical components.

4. Functional Evaluation

• Confirm actuator movement.
• Check response to control commands.
• Verify stable operation under test conditions.

5. Packaging & Storage

• Apply protective packaging.
• Record inspection results.
• Store in controlled conditions.

The Veteran’s Tech Trap Guide

⚠️ Do not replace an ADU by physical fit alone.
The MG-800 family includes multiple actuator drive units such as ADU-60, , ADU-120A, ADU-204, and other variants. Similar dimensions do not guarantee correct operation.

⚠️ Confirm voltage and control configuration.
An incorrect actuator drive unit can create unstable governor response or prevent proper calibration.

⚠️ PRO TIP: Record actuator position feedback before removal.
The replacement process often requires accurate mechanical alignment and verification.

⚠️ Do not skip final sea-trial checks.
Governor systems should be tested through actual speed commands, load changes, and emergency operating conditions.

Dynamic FAQ

Q1. What is the NABC0 ?

The NABC0 is an Actuator Drive Unit used in the NABCO MG-800 Governor System for marine main engine speed control applications.

Q2. What e do in the governor system?

e receives control commands from the governor control system and drives the actuator mechanism that regulates engine control position.

s interchangeable with ADU-120A?

Not automatically. Although both belong to the MG-800 actuator drive family, differences may exist in electrical configuration, feedback systems, or mechanical setup. Compatibility must be confirmed before replacement.

Q4. What system uses tO ?

e is associated with the NABCO MG-800 Governor Control System used for marine propulsion engine control.

Q5. Can a refd be used onboard a vessel?

Yes, provided the unit has passed mechanical inspection, electrical testing, actuator response verification, and compatibility checks before installation.

Q6. What information should buyers provide when soun ?

Recommended details:

• NABCO MG-800 system model
• Actuator drive uni:
• Existing governor control unit model
• Engine application information
• Required condition: new surplus, refurbished, or tested used

Q7. How she be stored?

Store the unit in a dry environment with protection from dust, corrosion, and mechanical damage. Maintain inspection records so the spare is ready for emergency deployment.
