The NABCO NE-133 (also designated as NE-133-01) is a specialized marine PLC processor unit manufactured by Nabtesco/NABCO. Designed as the central control module within shipboard propulsion remote control racks, the NE-133 handles high-reliability logic execution for main engine telegraphs, automated governor speed matching, and emergency maneuvering sequences.
Constructed to meet rigorous maritime standards (Class NK Type Tested), the module features robust shielding against thermal fluctuations, mechanical vibration, and electromagnetic interference on shipboard 24V DC control networks. It interfaces directly with surrounding I/O sub-modules, power supplies, and backplanes in engine room control cabinets and bridge maneuvering stands.
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | NABCO / Nabtesco Corporation |
| Model / Type | NE-133 / NE-133-01 (Type NE) |
| Classification Approval | Class NK Type Test No. 84A160 |
| Module Category | Programmable Logic Controller (PLC) / Main Processor Unit |
| Primary System | Main Engine Remote Control System (M-800 / NE Series) |
| System Power Supply | 24V DC (Via rack system power supply unit) |
| Physical Weight | Approx. 3.12 kg – 3.15 kg |
| Enclosure Type | Rack-mounted metal chassis module |
Application Scenarios & Field Experience
The Emergency Scenario
While maneuvering through a tight pilotage area, the bridge propulsion control panel loses communication with the main engine governor. The system triggers a “Processor Error / Speed Control Fault” warning, freezing the engine order reference. Inspection of the sub-rack unit reveals an internal CPU fault on the aged NE-133 processor unit. Swapping in a pre-tested, bench-verified NE-133 module restores real-time signal processing and clears the fault on the backplane bus, re-establishing immediate bridge throttle control.
Application Scenarios
- Bridge Engine Order Telegraphs (EOT): Executes speed reference calculations and synchronization between bridge levers and engine room receivers.
- Main Propulsion Control Racks: Processes trip signals, start/stop sequences, and fuel limit curves sent to the main engine governor.
- Sub-Telegraph & Maneuvering Stands: Coordinates switching logic between Local, Engine Control Room (ECR), and Bridge control modes.
Transparency SOP: Quality Assurance & Testing
- Physical & Visual Inspection: Housing, circuit traces, internal IC sockets, and rear terminal connectors are inspected for signs of thermal strain, component corrosion, or vibration fatigue.
- Backplane Connector Integrity: Multi-pin plug connectors are cleaned with electrical contact solvent to remove oxidation and checked for bent pins.
- Bench Power & Diagnostic Check: The module is installed on a test rack to verify initial boot sequences, internal power rail regulation, and processor status indicator lights.
- I/O Signal Bus Verification: Input and output channels are exercised via simulator gear to confirm accurate logic execution and communication across the sub-rack bus.
- ESD Protection & Packaging: Cleared units are treated with anti-moisture sealant where applicable and packed in anti-static ESD bags with heavy-duty foam cushioning for safe marine dispatch.

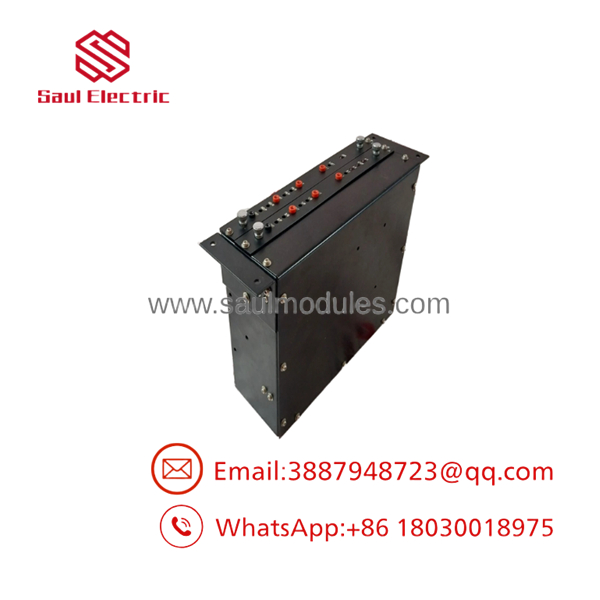

NE-133

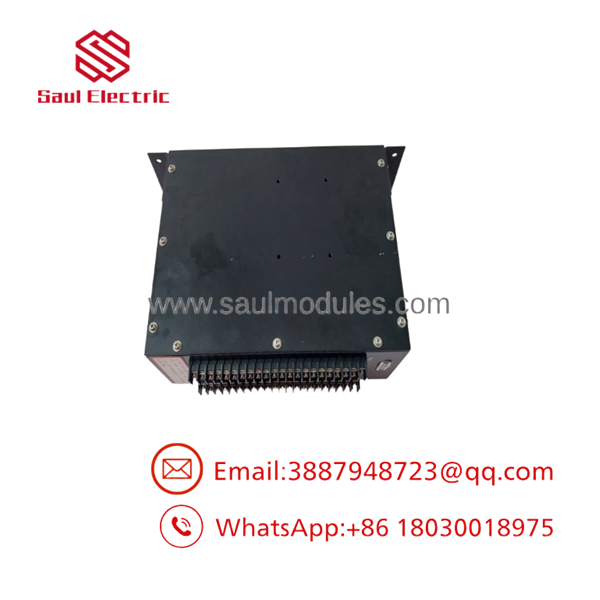

NE-133
Maintenance & Field Guidance
- ⚠️ Confirm Variant Codes: Ensure the
NE-133orNE-133-01designation matches your vessel’s existing rack documentation and part numbers. - ❗ Never Pull Under Load: Always isolate power to the sub-rack cabinet before inserting or removing the processor module to prevent logic corruption or electrical arcing across backplane pins.
- ⚠️ Check Upstream Power Quality: Verify that the system’s primary 24V DC power supply (e.g., PSU-33 series) provides low-ripple, stable power to prevent premature CPU resets.
- ❗ Clean Cabinet Slots: Blow out dust and marine salt residue from the rack slot using clean, dry compressed air before seating the module.
Frequently Asked Questions (FAQ)
Q: What is the main function of the NABCO NE-133 unit?
A: It functions as the primary PLC processor/CPU module for NABCO main engine remote control and telegraph systems, executing core propulsion logic.
Q: Is the NE-133 still produced by the manufacturer?
A: No, original factory production of the NE series has been discontinued. Replacement modules are supplied through certified unused surplus or fully bench-tested refurbished marine stock.
Q: What is the significance of the “84A160” marking on the unit?
A: “84A160” represents the Class NK (Nippon Kaiji Kyokai) type-test certificate approval code, confirming the unit’s compliance with marine class standards.
