NABCO TBU-III-C1 Terminal Base Unit Controller

Description

Product Introduction

The NABCO TBU-III-C1 is a industrial-grade terminal base unit designed for legacy Nabtesco automatic door operator systems. Installed directly within the header track enclosure, this unit functions as the primary hardware interface backbone. It aggregates discrete wiring runs from safety sensors, motion detectors, key switches, and electric lock hardware into a streamlined internal bus feed.

By isolating field wiring connections on pluggable terminal blocks away from the main processor board, the TBU-III-C1 prevents installation errors and field shorts from damaging the central microcomputer. The -C1 revision features reinforced trace pathways and ruggedized terminal mounts designed to handle high vibration environments near heavy sliding and swinging door drives.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

The “Trench” Reality

It’s 11:00 PM at an international airport terminal. An incoming baggage cart hit an external sensor, ripping the cable and shorting 24V power straight to ground inside the header box. The automatic doors locked up solid, stopping passenger flow. Instead of frying the expensive master microprocessor, the electrical fault blew an isolation trace right on the TBU-III-C1 base board. Swapping in a pre-tested replacement base card restored the system instantly without needing to re-program the controller or re-tune the door drive parameters.

Target Applications

• Airport Transit Gates & Security Doors – High-cycle sliding entrance barriers where rapid maintenance and modular swapping are essential for zero-downtime operations.
• Commercial Building Entrances – Centralizing activation sensors, safety beams, and fire alarm emergency override contacts into a single interface chassis.
• Hospital Cleanroom Airlocks – Supporting interlocked door configurations where precise contact closure signaling is routed between inner and outer sliders.

Field Replacement Case

A regional hospital experienced phantom opening faults across three primary entrance doors following a facility lighting upgrade. Technicians discovered degraded terminal screw clamps and hairline trace cracks on an aging TBU-III-C1 board caused by years of header vibration. Replacing the damaged unit with a bench-tested surplus module stabilized the signal lines, eliminating false sensor triggers immediately.

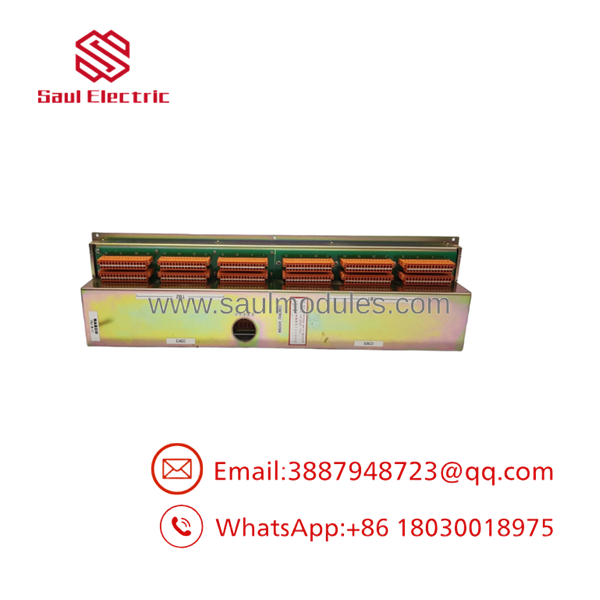

TBU-III-C1

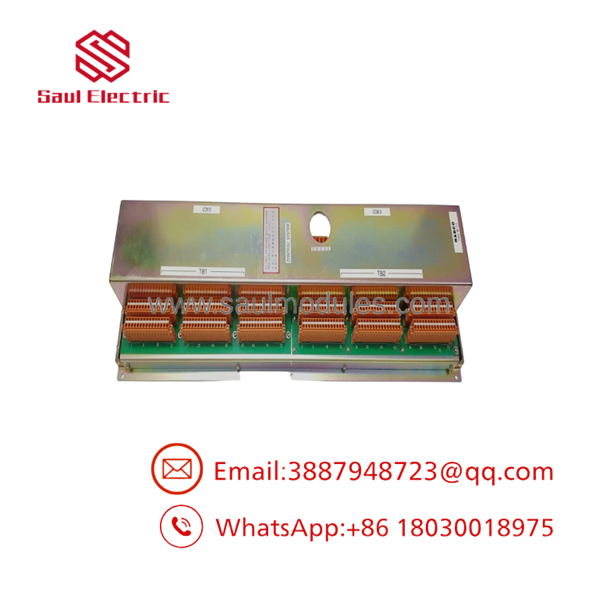

TBU-III-C1

Transparency SOP: Quality Assurance & Testing

We do not just ship pulled hardware. Every NABCO TBU-III-C1 module undergoes rigorous bench diagnostics before leaving our warehouse:

1. Inbound Visual Inspection: Microscopic trace inspection to check for thermal stress, lifted pads, solder joint fractures, and cracked terminal headers.
2. Insulation & Continuity Diagnostics: Testing point-to-point resistance across all terminal contacts to verify zero internal shorting or high-impedance paths.
3. Live Bus Power Test: Mounting the unit onto our Nabtesco test rig to supply 24V DC power and verify stable voltage distribution across all I/O channels.
4. Signal Loop Verification: Triggering simulated inputs (sensors, locks, emergency overrides) to confirm clean signal pass-through to the CPU harness.
5. Anti-Static Packaging: Chemical cleaning with zero-residue cleaner followed by vacuum-sealing in ESD static-shielding bags.

The Veteran’s Tech Trap Guide

⚠️ Trap 1: “Do Not Perform Megger Test” Warning

Pay close attention to the warning label on the metal casing: DO NOT perform insulation resistance (Megger) or high-voltage dielectric tests on this board. Applying 500V or 1000V insulation testers across these terminals will instantly destroy onboard surface-mount diodes and optocouplers.

❗ Trap 2: Terminal Block Pin Alignment

The pluggable orange terminal connectors must be seated completely straight into their mating headers. Off-angle insertion or bent pins will cause intermittent loss of safety beam signals, resulting in doors reversing unexpectedly or failing to close.

⚠️ Trap 3: Wire Strain and Conduit Relief

Ensure all field wiring entering the header box has adequate strain relief. Heavy sensor cables resting directly on the screw terminals will flex during door vibration, eventually snapping terminal solder pins right off the circuit board.

Frequently Asked Questions

Q: Is the interchangeable with standard TBU-I or TBU-II boards?

No. While they serve similar functions, pinouts, physical footprint dimensions, and terminal pin assignments vary across generations. Always verify the exact suffix code on your original board label before ordering a replacement.

Q: Does replacing this terminal base unit require reprogramming the door controller?

No. The is a hardware signal interface card. It contains no flash memory or programmable logic. Once you wire the terminals back to their original positions and power up, operation resumes automatically.

Q: Can I hot-swap this board while the operator is powered on?

To be honest, doing that is playing with fire. Unplugging live terminal connectors can arc pins and blow input protection diodes on the main CPU card. Always turn off main AC power to the header unit before touching terminal blocks.

Q: What usually breaks on these base units?

Because there are no high-speed microprocessors on board, failure modes are usually mechanical or electrical abuse: stripped terminal screws, cracked trace joints from heavy vibration, or burnt protection components caused by external wiring short circuits.

Q: What warranty is included with your replacement modules?

We cover every tested new-surplus and refurbished NABCO unit with a full 12-month direct replacement warranty from our stocked inventory.
