Nabtesco BTC-304-51A Thruster Controller Module

Description

Product Introduction & Engineering Value

Hook option A (Direct & Technical): The BTC-304-51A sits at the junction between a vessel or platform’s control system and its thruster hardware. Command signals in, calibrated drive commands out, with 0.1% full-scale resolution on the output. That’s not a spec you quote casually — at thruster power levels, a one-tenth-percent step is the difference between holding station and drifting off it.

Nabtesco built this module for the marine and heavy-motion world: salt-fog resistant construction, an IP65 enclosure, and real-time processing that keeps pace with dynamic positioning loops. It’s the piece that lets a joystick input become a proportional thrust vector without lag or overshoot. When DP operators talk about “the thruster answering the stick,” this is the module doing the answering.

Technical Specifications

Field Application & The “Trench” Experience

The Trench Story: A harbor-tug operator on the Gulf Coast found out the hard way what a thruster controller failure looks like: the aft azimuth stopped answering proportional commands mid-docking, snapping between zero and full thrust like a light switch. The culprit was the original BTC-304 module — thirteen years of salt air had finally done in its output stage. The wild part was the replacement hunt: OEM lead time was quoted in months, and a tug that can’t dock precisely is a tug that isn’t earning. We shipped a bench-tested BTC-304-51A in 48 hours. The install tech’s report read like a checklist: power off, swap the module, restore configuration from the vessel’s parameter file, then a bollard-lite test at the pier. The tug answered the stick smooth as glass on the first try. The captain’s feedback was one line — “She steers like she’s new.”

Niche application scenarios:

1. Dynamic positioning on offshore construction support vessels — proportional thruster command management during crane-lift station-keeping operations.
2. Azimuth thruster control on harbor tugs and escort vessels — precise low-speed thrust modulation for ship-assist maneuvers.
3. ROV launch-and-recovery system positioning winches — converting control-input commands into calibrated drive output for heave-compensated handling gear.
4. Fixed offshore platform crane slewing drives — IP65 construction and ATEX-variant availability for Zone 2 hazardous-area service.

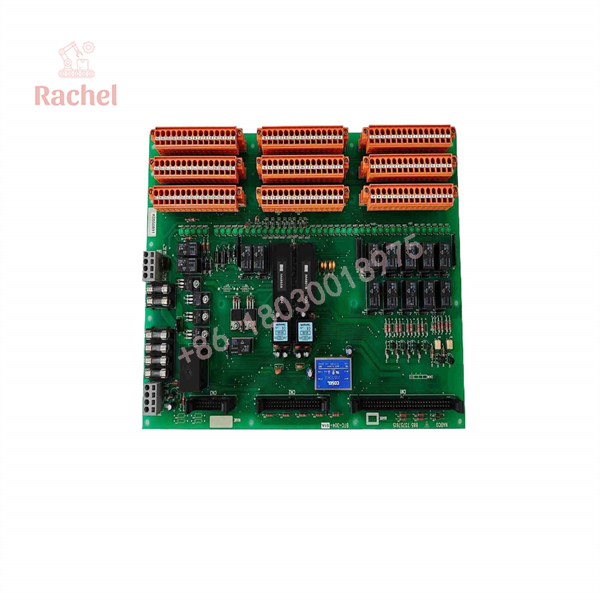

BTC-304-51A

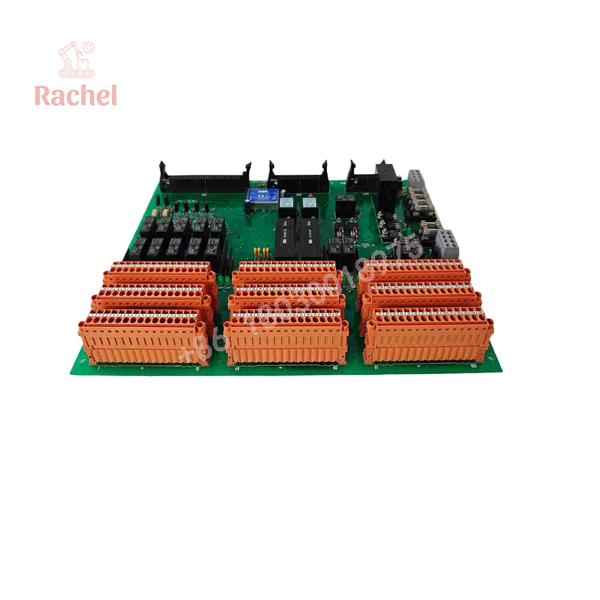

BTC-304-51A

Transparency SOP: QA & Testing

Narrative this round. A thruster controller can’t be checked with a multimeter and a prayer, so ours goes on the bench before it goes on the shelf. The unit first gets a full cosmetic and enclosure inspection — housing integrity, connector condition, label and serial verification against Nabtesco records. Then it’s powered on a current-limited supply while we watch inrush behavior; anything that draws ugly current stops right there. From there, the module is wired into a simulated command-and-throttle test loop: we sweep the command input across the full range and confirm the output tracks proportionally — linearity, hysteresis, and response time all captured. Resolution is verified at the low end, where a 0.1% step either shows up or doesn’t. New Surplus units get the same functional pass; Refurbished units additionally get connector reconditioning before the identical test sequence. Only a clean run across the full sweep earns the serialized QA certificate that ships in the box.

The Veteran’s Tech Trap Guide

⚠️ Back up the configuration BEFORE you pull the old module. The BTC-304 carries application-specific setup — thruster mapping, deadband, response curves. Pull the unit without saving its parameter set and you’re commissioning from scratch on a vessel that used to run perfectly. Export the config file first. Every time. No exceptions.

PRO TIP: Don’t trust a “working” pull from a salt-air environment on appearance alone. Corrosion on these modules starts at the connector shells and creep-corrodes the board edge. Inspect the pins — green or white crust in the connector housing means the board got atmosphere in it, and the unit is on borrowed time even if it powers up.

⚠️ Watch the variant suffix. The -51A and -01A are not interchangeable stock. Variants in this family differ in command-signal handling and application mapping, and a mismatched module may power up, pass a self-test, and still steer your thruster wrong. Match the full part number, not the family.

PRO TIP: Grounding and EMC layout matter more than on ordinary controllers. The IEC 61000-4 EMC compliance assumes proper shield termination and cable separation. If your replacement installs into a cabinet where someone zip-tied the thruster power cables to the signal loom years ago, your new module will inherit noise problems the old one was masking.

Dynamic FAQ

Q1: What’s the difference between BTC-304-51A and BTC-304-01A?
They’re variants within the same BTC-304 controller family, differing in command-signal configuration and application mapping. They are not drop-in interchangeable — always match the full suffix of the unit you’re replacing. Send us your vessel’s documentation if you’re unsure and we’ll verify before you order.

Q2: Can this module be used in hazardous-area (offshore) installations?
Offshore-targeted variants of the BTC-304 family support ATEX Zone 2 / Class I Div 2. Whether your specific unit carries that rating depends on its build — we confirm the certification status of the exact serial number before it ships.

Q3: Does the replacement need commissioning after installation?
Yes. Expect to restore the thruster’s parameter set (mapping, deadband, response curve) and run a pier-side functional test before the vessel returns to service. That’s why we stress backing up the original configuration — it turns a recommissioning job into a restore job.

Q4: What does “New Surplus” mean for a controller like this?
Original Nabtesco manufacturing that never entered vessel service — excess OEM, yard, or integrator stock. Every unit is power-on tested and full-range function-swept on our bench regardless of category, with the QA certificate packed in the shipment to prove it.

Q5: What warranty do you offer on the BTC-304-51A?
Both New Surplus and Refurbished units carry our full functional warranty covering output stage, signal processing, and enclosure integrity, including DOA replacement. Current warranty term for this SKU is quoted at order time.

Q6: How fast can you ship, and to where?
Stocked units typically ship within 1–3 business days of payment confirmation, worldwide export available. Given how often this module failure disables a vessel’s earning capability, we expedite AOG-style requests where possible — flag urgency to the sales desk at quote.
