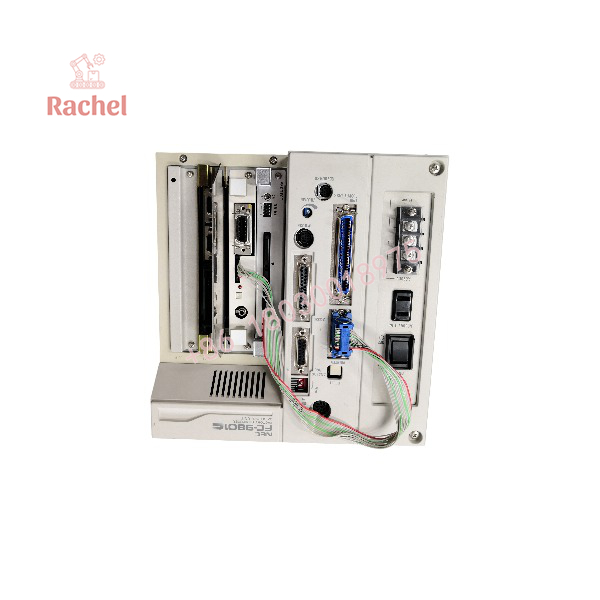

NEC FC-9801F Industrial Computer

Description

Product Summary

The NEC FC-9801F is a legacy factory computer developed for industrial computing and factory automation applications. Part of NEC’s FC-9800-era industrial computer family, it provides a computing platform for equipment control, production support, data processing, and interfaces to external industrial devices.

The platform uses an Intel 386SX-class processor operating at approximately 20 MHz, with memory expansion, graphics support, serial and parallel interfaces, and optional storage and interface boards. The archived NEC catalog lists Model 1 and Model 2 configurations with different expansion-slot arrangements and power requirements.

The FC-9801F is primarily relevant to facilities maintaining older machines and software environments built around NEC’s historical PC-9800 architecture. Replacement selection requires confirmation of the original model configuration, installed option boards, storage devices, operating environment, and external interface requirements.

Product identification

• Manufacturer: NEC
• Model: FC-9801F
• Product category: Industrial computer / factory computer
• Product family: NEC FC-9800 series
• Processor architecture: Intel 386SX
• Processor clock: Approximately 20 MHz
• Intended environment: Factory automation and legacy equipment computing
• Product status: Legacy platform; verify current availability with the supplier



Technical Specifications

Parameter	Specification
Manufacturer	NEC
Model	FC-9801F
Available configurations	Model 1 and Model 2
CPU	Intel 386SX
CPU clock	Approximately 20 MHz
CPU memory access	No-wait memory access, as described in the archived catalog
Standard user memory	1.6 MB
Maximum user memory	Up to 14.6 MB, depending on the installed memory configuration
Video memory	12 KB text VRAM; 256 KB graphics VRAM
Text display	40 or 80 characters per line; 20 or 25 lines
Graphics modes	Up to 640 × 400 resolution, with color and monochrome modes
Serial interface	One built-in RS-232C channel
Serial expansion	Additional channels supported through an optional interface board
Printer interface	8-bit parallel interface
Display interfaces	Analog RGB and digital RGB
Floppy disk interface	Built-in 1 MB-class floppy disk interface
Optional storage	Floppy disk, fixed disk, and RAM-file options, depending on configuration
Expansion capability	Expansion slots; count and allocation vary by model
Clock/calendar	Battery-backed calendar clock
Optional monitoring functions	RAS expansion board supports selected monitoring and alarm functions
Mounting	Rack-mounting hardware, according to the archived catalog
Power consumption	Model-dependent; see configuration details below

Model-specific power and mechanical details

NEC’s archived catalog lists the following configuration-dependent values:

Parameter	Model 1	Model 2
Dimensions, including rack mounting hardware	245 × 225 × 250 mm	430 × 229 × 250 mm
Weight	Approximately 7.3 kg	Approximately 10.0 kg
Typical power consumption	25 W	30 W
Maximum power consumption	55 W	110 W

These values are transcribed from the archived catalog’s model-specific specification table. Confirm the exact chassis and installed options before using them for cabinet layout or power-budget calculations.



Key Features and Engineering Advantages

Industrial Computing Platform

The FC-9801F provides a dedicated computer platform for factory automation environments. Its historical role includes supporting machine-specific software, equipment interfaces, and production-related computing tasks.

Memory Expansion

The computer supports memory expansion through dedicated memory hardware and compatible expansion boards. The installed memory configuration should be checked when maintaining software that depends on the original memory map or system resources.

Multiple Display Modes

The system supports text and graphics display functions, including analog RGB and digital RGB monitor interfaces. This capability is relevant when preserving older operator interfaces or machine-monitoring applications.

Serial and Parallel Interfaces

The built-in RS-232C serial interface and parallel printer interface support communication with compatible peripherals and legacy equipment. Additional serial channels require the appropriate optional hardware.

Expandable Storage

The FC-9801F supports optional floppy disk, fixed disk, and RAM-file configurations. The exact storage hardware must be verified because drive type, capacity, controller requirements, and installation location can differ.

Optional RAS Monitoring

An optional RAS board provides functions such as power-failure detection, memory parity checking, temperature-rise detection, external alarm input, digital I/O, watchdog timing, fan-stop detection, remote reset, and alarm LED indication. Availability depends on the installed board and configuration.

System Compatibility and Integration Requirements

The FC-9801F should be treated as a legacy computing platform whose compatibility depends on the original hardware and software environment.

Before replacing or integrating a unit, verify:

• Whether the installed computer is Model 1 or Model 2.
• The processor and memory configuration.
• The installed expansion boards and their slot assignments.
• The storage device type and controller board.
• The monitor interface and display requirements.
• The serial communication settings and connector pin assignments.
• The operating system and machine-control software.
• The availability of compatible replacement media and peripherals.

Do not assume that a modern PC can directly replace an FC-9801F without engineering changes. Legacy software may depend on the original processor behavior, memory layout, display modes, expansion hardware, or direct access to floppy disk drives and peripheral devices.



Installation and Maintenance Considerations

Chassis and Rack Installation

Check the physical dimensions and mounting arrangement of the existing unit before installing a replacement. Model 1 and Model 2 have different chassis dimensions, weights, and power requirements.

Power Supply

Confirm the installed model’s input-power requirements and the ratings of any added expansion hardware. The archived catalog lists different typical and maximum power consumption figures for the two configurations.

Storage and Data Preservation

Where the original computer remains operational, preserve the machine software, configuration data, and original storage media before undertaking a replacement. Verify the availability and readability of required floppy disks or fixed-disk images.

Peripheral and Interface Checks

Inspect serial and parallel connections, display cabling, expansion-board seating, and any external device interfaces. Record communication settings and connector pin assignments before disconnecting existing wiring.

Environmental and Service Checks

Review cabinet ventilation, cooling-fan operation, grounding, and available RAS monitoring functions. If the system includes optional monitoring hardware, verify its presence rather than assuming every FC-9801F installation has the same functions.



Product Overview

The NEC FC-9801F belongs to an earlier generation of industrial computers built to support factory automation and equipment-specific computing. Unlike a dedicated PLC I/O module, it provides a general computing environment with a processor, memory, graphics capabilities, expansion slots, storage interfaces, and peripheral connections.

This architecture made the platform adaptable to different equipment requirements. Optional boards could add memory, storage, RAS monitoring, or other interfaces, while the built-in serial and parallel interfaces supported compatible external devices. The exact capability of an individual machine therefore depends on its installed configuration, not only the FC-9801F model designation.

For maintenance teams, the principal challenge is preserving compatibility with the original control software and attached hardware. Processor architecture, memory configuration, display mode, storage media, expansion cards, and connector pin assignments can all affect whether a replacement operates correctly.

When sourcing an FC-9801F, request photographs of the nameplate, rear panel, internal option boards, and storage configuration where available. Confirm the model variant and compare the unit against the original installation records. These checks are particularly important when the computer is part of a machine whose operating software is no longer actively maintained.

Because this is a legacy product, a suitable replacement may depend on the condition of the offered unit, its included option boards, and the availability of the original software and peripherals.



Applications

The NEC FC-9801F is relevant to legacy computing applications where the original hardware and software remain part of an operating production system.

Typical application areas include:

• Factory automation equipment
• Legacy machine-control systems
• Production-line monitoring
• Industrial data acquisition
• Equipment communication and interface management
• Older manufacturing test systems
• Computer-based control applications using NEC PC-9800-compatible software
• Maintenance and restoration of historical industrial equipment

Actual suitability depends on the installed software, interface boards, and external equipment. The FC-9801F should not be assumed to support modern industrial Ethernet protocols or contemporary operating systems without additional hardware and software verification.



Frequently Asked Questions

What is the NEC FC-9801F?

The FC-9801F is a legacy NEC industrial computer designed for factory computing and automation-related applications.

Which processor does the FC-9801F use?

NEC’s archived catalog specifies an Intel 386SX processor operating at approximately 20 MHz.

How much memory does the FC-9801F support?

The archived specification lists 1.6 MB of standard user memory and up to 14.6 MB of user memory, depending on the installed memory configuration.

Does the FC-9801F have serial communication?

Yes. The catalog lists one built-in RS-232C serial channel. Additional channels can be supported with an optional interface board.

What storage devices are supported?

Depending on the configuration, the FC-9801F supports floppy disk drives, fixed-disk options, and RAM-file options. Confirm the actual installed controller and storage hardware before ordering accessories or planning a replacement.

What is the difference between Model 1 and Model 2?

The configurations differ in physical dimensions, weight, expansion arrangements, and power consumption. Identify the model from the equipment label and verify the relevant specification before purchasing a replacement.

Is the FC-9801F a PLC?

No. It is an industrial computer. It may participate in machine-control or automation applications, but it is not itself a conventional standalone PLC I/O module.

Can the FC-9801F be replaced by a modern industrial PC?

Potentially, but replacement is not necessarily a direct swap. Legacy software, display modes, storage devices, expansion boards, and direct hardware access may require migration work or interface emulation.

Is the NEC FC-9801F still manufactured?

The referenced NEC documentation is an archived product catalog. Treat the model as a legacy product and verify availability, condition, and support status with the supplier.

What information should be supplied when requesting a replacement?

Provide the complete model label, Model 1 or Model 2 designation, installed expansion-board part numbers, storage configuration, connector photographs, and the operating software requirements. This information helps identify a compatible replacement rather than a unit with only a similar model name.
