NI cFP-AI-111 16-Channel Analog Current Input Module

Description

Product Introduction

The National Instruments cFP-AI-111 is a 16-channel analog current input module developed for the Compact FieldPoint distributed I/O platform. It accepts industry-standard 4–20 mA, 0–20 mA, and ±20 mA current signals from transmitters, analyzers, and process instrumentation while performing onboard signal conditioning and linearization.

Unlike simple analog input cards that rely on the controller for scaling, the cFP-AI-111 processes measurements locally before transmitting engineering values to the Compact FieldPoint controller. One thing to watch out for is lifecycle planning. NI has discontinued this module, so plants maintaining existing Compact FieldPoint systems should keep validated spare inventory available.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It’s a scheduled shutdown.

Every pressure transmitter checks out.

Every flow transmitter calibrates correctly.

Yet the PLC keeps reporting impossible values.

I’ve seen maintenance teams replace transmitters one after another before discovering the real problem—a failed analog input module.

The cFP-AI-111 sits between the field instruments and the controller. When it begins drifting or loses a channel, the transmitters often get blamed first.

Typical Applications

Water & Wastewater – Process Instrumentation –
Collects 4–20 mA signals from level, flow, and pressure transmitters for distributed monitoring.

Oil & Gas – Remote Process Skids –
Interfaces multiple field transmitters with Compact FieldPoint controllers in hazardous process areas.

Chemical Processing – Distributed I/O Cabinets –
Acquires analog current signals from temperature, pressure, and analytical instrumentation.

Manufacturing – Machine Condition Monitoring –
Receives analog outputs from vibration transmitters and condition monitoring devices.

Research & Test Systems – Data Acquisition –
Provides high-resolution current measurements for laboratory automation and industrial testing.

Field Replacement Example

A pharmaceutical production line experienced intermittent pressure alarms during batch processing. Calibration confirmed every transmitter was operating within specification.

After replacing the cFP-AI-111, all sixteen channels returned to stable readings without recalibrating a single field device.

The failed component wasn’t in the field.

It was inside the I/O rack.

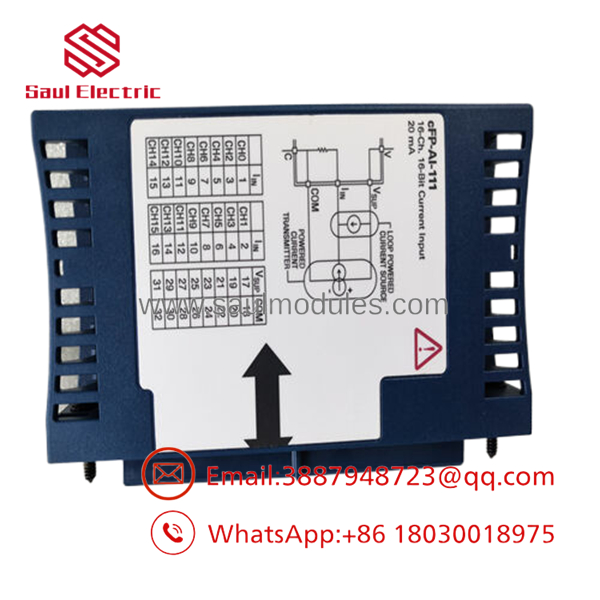

cFP-AI-111

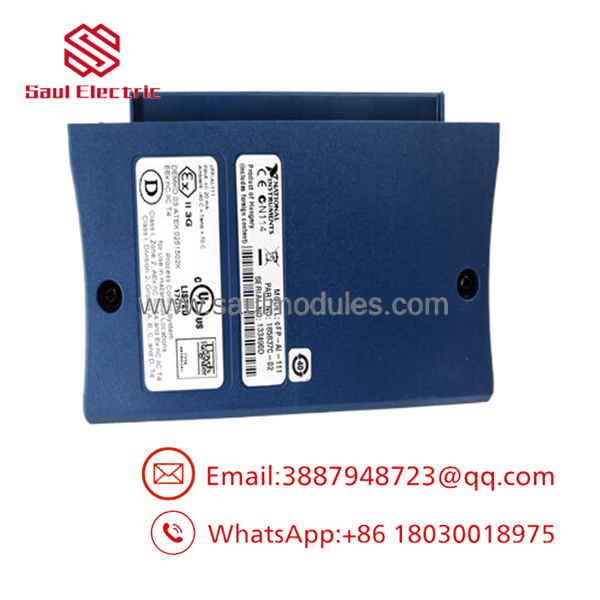

cFP-AI-111

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Compact FieldPoint hardware.

1. Inbound Inspection

• Verify NI labels and serial numbers.
• Inspect edge connectors and terminal interfaces.
• Check enclosure for cracks or physical damage.
• Screen for unauthorized repairs.

2. Live Rig Testing

• Install on a powered Compact FieldPoint terminal base.
• Verify module detection by the network controller.
• Confirm all sixteen channels operate correctly.
• Test hot-swap functionality.

3. Electrical Parameter Checks

• Simulate calibrated 4–20 mA signals.
• Verify linearity across each measurement range.
• Test filter operation at 50 Hz, 60 Hz, and 500 Hz.
• Confirm overrange detection.

4. Firmware Verification

• Verify module recognition with supported Compact FieldPoint firmware.
• Record hardware revision.
• Document successful communication before shipment.

5. Final QC & Anti-Static Packaging

• Complete final inspection.
• Package using ESD-safe materials.
• Protect connectors during transport.
• Include functional test documentation upon request.

The Veteran’s Tech Trap Guide

⚠️ Don’t replace transmitters until you’ve checked the input card.
A single failed analog channel can look exactly like a defective pressure or flow transmitter.

❗ Match the configured input range. Trust me.
If the software expects 4–20 mA and the module is configured for ±20 mA, you’ll spend hours chasing nonexistent calibration problems.

⚠️ Use the correct filter setting.
Running a 60 Hz filter in a 50 Hz power environment can introduce unnecessary measurement noise.

❗ Hot-swappable doesn’t mean careless.
The module supports replacement while the Compact FieldPoint bank remains powered, but always follow plant lockout/tagout procedures and verify controller diagnostics after installation.

⚠️ Plan for obsolescence.
NI has discontinued the cFP-AI-111. If your plant still depends on Compact FieldPoint, keeping tested spare modules on the shelf is much less expensive than an emergency migration.

Frequently Asked Questions (FAQ)

Q1: What signals can the cFP-AI-111 measure?

A: It measures ±20 mA, 0–20 mA, and 4–20 mA analog current signals from industrial transmitters and sensors.

Q2: Is the module hot-swappable?

A: Yes. The cFP-AI-111 can be installed or replaced on a powered Compact FieldPoint terminal base without interrupting operation of the remaining bank. Even so, always follow your site’s approved maintenance procedures.

Q3: What replaced the cFP-AI-111?

A: National Instruments has discontinued the cFP-AI-111 and recommends the NI-9208 C Series Current Input Module for new applications and migration projects.

Q4: Does the module support onboard signal conditioning?

A: Yes. The cFP-AI-111 performs onboard measurement, linearization, and scaling before returning engineering values to the control software.

Q5: Why is surplus inventory less expensive than buying directly from the OEM?

A: Most surplus modules originate from plant upgrades, unused maintenance inventory, or decommissioned systems. Price reflects sourcing, not necessarily quality. Inspection records, live testing, and traceability are far more important than cost alone.

Q6: Can this module be mixed with other Compact FieldPoint I/O modules?

A: Yes. The cFP-AI-111 is designed to operate alongside other Compact FieldPoint digital, analog, and specialty I/O modules within the same bank, provided the controller and terminal base support the configuration.

Q7: What warranty is typically available?

A: Most industrial automation suppliers offer a 12-month warranty for professionally tested surplus or refurbished cFP-AI-111 modules. Request a functional test report, hardware revision details, and serial-number verification before purchasing.
