Description
Product Introduction
The NI cRIO-9073 is an integrated CompactRIO controller that combines a 266 MHz industrial real-time processor with a user-programmable Xilinx Spartan-3 2M gate FPGA inside a single 8-slot chassis. It was built for machine builders and automation engineers who need deterministic control, high-speed I/O, and LabVIEW Real-Time/FPGA programming in a rugged, fanless package.
Unlike later dual-Ethernet models, the 9073 keeps the architecture simple and cost-effective: one 10/100 Ethernet port, one RS-232 port, and direct access to C Series modules. In practice this board still handles closed-loop control, data logging, and custom timing where a full modular chassis is overkill. The fixed 8-slot design and mature LabVIEW scan-mode support make it a reliable drop-in for existing systems that cannot justify a full platform migration.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Processor | 266 MHz industrial real-time CPU |
| DRAM | 64 MB |
| Nonvolatile Storage | 128 MB minimum |
| FPGA | Xilinx Spartan-3 2M gate |
| FPGA Resources | 40,960 flip-flops, 40,960 4-input LUTs, 40 multipliers, 720 kbits block RAM, 3 DMA channels |
| Module Slots | 8 (C Series I/O) |
| Network Interface | 1 × 10Base-T / 100Base-TX Ethernet (IEEE 802.3) |
| Serial Port | 1 × RS-232 (max 115,200 bps) |
| Power Input | 19 V to 30 V DC |
| Power Consumption | 20 W maximum |
| Recommended Power Supply | 48 W, 24 V DC |
| Operating Temperature | –20 °C to 55 °C |
| Storage Temperature | –40 °C to 85 °C |
| Dimensions (unloaded) | 286.4 mm × 87.3 mm × 58.9 mm |
| Weight | 929 g (32.7 oz) |
Application Scenarios & The “Trench” Experience
It’s 03:40 and the packaging line is down. The old CompactRIO that runs the high-speed vision-triggered reject station has stopped responding. Every minute of lost production is money walking out the door. You need a known-good cRIO-9073 that boots, talks to the same C Series modules, and loads the existing LabVIEW Real-Time application without a redesign.
- Machine Automation / OEM Equipment – High-speed packaging or assembly machines – Fixed 8-slot chassis and 2M gate FPGA handle custom timing and digital filtering without external motion controllers.
- Process Monitoring & Data Logging – Continuous condition monitoring of pumps, compressors, or test stands – Built-in nonvolatile storage and real-time OS keep trend data even through power cycles.
- Test Systems – Production test fixtures requiring simultaneous analog and digital I/O – Scan-mode programming lets engineers access modules directly in LabVIEW Real-Time without writing FPGA code for every channel.
- Embedded Control R&D – Prototype control systems that later move to higher-end cRIO platforms – Same C Series module ecosystem and LabVIEW code base reduce migration effort.
Field Case Study
A Midwest automotive tier-1 supplier lost the primary controller on a robotic weld cell. OEM lead time was quoted at 16–17 weeks. We shipped a tested new-surplus cRIO-9073 overnight. The plant restored the cell the same day using the existing LabVIEW application and C Series modules. Cost of one additional hour of downtime would have exceeded the price of the spare unit.

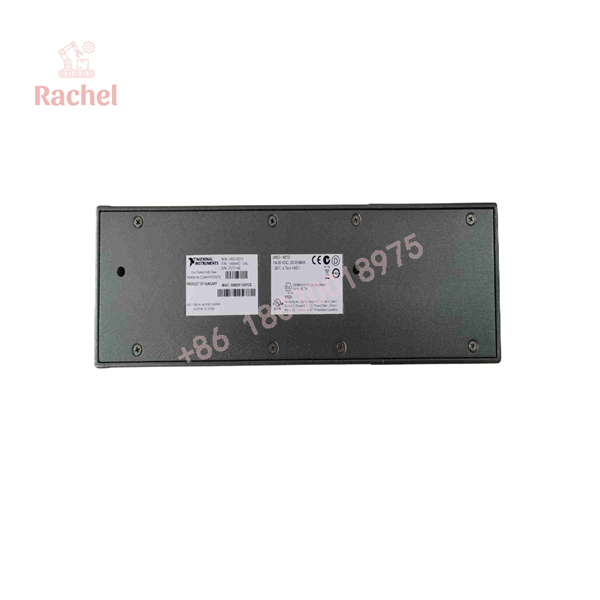

CRI0-9073

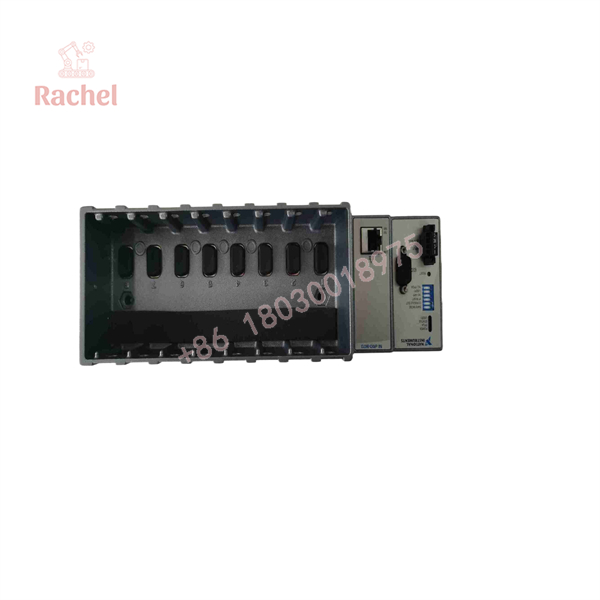

CRI0-9073
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual CompactRIO hardware and LabVIEW systems.
- Inbound Inspection – OEM part-number verification (780471-01), visual inspection of connectors, power terminals, and chassis integrity; anti-counterfeit checks against known NI markings.
- Live Rig Testing – Powered with a regulated 24 V supply; full power-on self-test, Ethernet link negotiation, RS-232 loopback, and FPGA detection verified.
- Electrical Parameter Checks – Input voltage range confirmed, current draw measured under load, isolation and reverse-voltage protection checked.
- Firmware / Software Verification – Controller recognized in NI Measurement & Automation Explorer (MAX); real-time OS version and FPGA status logged.
- Final QC & Anti-static Packaging – Functional burn-in, serial-number documentation, and sealed ESD-safe packaging ready for industrial environments.
The Veteran’s Tech Trap Guide
⚠️ Power polarity will kill it. The cRIO-9073 has only one layer of reverse-voltage protection. Reverse the 24 V leads and you can permanently damage the regulator. Double-check the V and C terminals before you energize.
❗ DIP switch settings matter. Safe Mode, IP Reset, No App, and No FPGA switches are still active on this generation. Photograph or document the switch positions on the failed unit before you pull it. Wrong settings leave the new controller unreachable on the network.
⚠️ C Series module compatibility is not automatic. Some newer C Series modules require later firmware or FPGA support that the 9073 does not have. Confirm the exact module part numbers against the official compatibility list before you assume a drop-in replacement.
❗ Never hot-plug modules while the controller is powered. Pulling or inserting C Series modules under power can corrupt the FPGA configuration or damage the backplane connectors. Power down, swap, then power up.
Frequently Asked Questions (FAQ for Conversion)
Q: Can I hot-swap C Series modules in the cRIO-9073?
A: No. Power the system down before inserting or removing any module. Live insertion risks backplane and FPGA damage.
Q: Is the firmware or LabVIEW version critical?
A: Yes. Match the real-time OS and LabVIEW Real-Time version used on the original system. Newer LabVIEW versions may still support the 9073, but verify against NI’s compatibility matrix before upgrading.
Q: How does the cRIO-9073 compare to the cRIO-9074?
A: The 9074 runs a 400 MHz processor, has 128 MB DRAM / 256 MB storage, and dual Ethernet ports. The 9073 is the lower-cost single-Ethernet sibling with a 266 MHz CPU and 64 MB DRAM. They share the same 2M gate FPGA and 8-slot form factor, but are not identical.
Q: What warranty do you provide?
A: 12 months from ship date on all tested new-surplus units.
Q: Why is this cheaper than buying from NI?
A: The cRIO-9073 is a legacy product no longer stocked by NI at list price. Genuine units recovered from surplus inventory and fully tested cost less while remaining original OEM hardware.
Q: Does it still receive software support?
A: NI lists it under Limited Support. LabVIEW Real-Time and FPGA modules continue to recognize the hardware for existing applications, but new feature development is focused on current CompactRIO platforms. Keeping a tested spare is the practical approach for plants still running 9073 systems.
Q: Will my existing C Series modules work?
A: Most legacy C Series modules that worked on the original 9073 will work on a replacement unit. Confirm any modules released after approximately 2015 against NI’s official compatibility tables, because later modules may require higher FPGA resources or newer firmware.
