Description
Product Introduction & Engineering Value
Machine builders often discover the real challenge of motion control years after commissioning: replacing a controller without changing validated machine behavior. The PXI-7344 remains valuable in legacy automation because it provides dedicated motion processing rather than relying entirely on host PC timing.
The module supports coordinated motion profiles, including linear, circular, point-to-point, gearing, and vector-space operations. For maintenance teams supporting older NI PXI systems, keeping a verified spare can reduce downtime during controller failures or PXI rack refurbishment projects.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | National Instruments |
| Model Number | PXI-7344 |
| Part Number | 777935-01 |
| Platform | PXI chassis |
| Motion Axes | 4 axes |
| Motor Compatibility | Stepper, brushed servo, brushless servo |
| Processor Architecture | Dual processor architecture with onboard real-time processing |
| Encoder Feedback | Quadrature incremental encoder support |
| Digital I/O Channels | 32 channels |
| Analog Input Resolution | 12-bit |
| Servo Command Output | ±10 V analog output |
| Operating Temperature | 0 °C to 55 °C |
| Power Consumption | Approximately 5.7 W |
The PXI-7344 supports four-axis motion control with onboard processing, digital I/O, encoder feedback, and PXI integration.
Field Application & The “Trench” Experience
A semiconductor equipment manufacturer operating a PXI-based wafer inspection platform experienced intermittent axis synchronization errors after more than a decade of service. The original PXI-7344 showed inconsistent motion response during high-cycle positioning operations. Maintenance engineers replaced the controller module, restored the NI-Motion configuration, verified encoder feedback scaling, and returned the system to production without redesigning the machine control architecture.
The key point from the field: motion controllers are tightly connected to software configuration, drive tuning parameters, and machine mechanics. A hardware swap alone is not a complete replacement procedure.
Typical applications include:
- Semiconductor inspection stage positioning with synchronized X-Y-Z motion
- Precision dispensing equipment requiring coordinated trajectory control
- Automated optical measurement systems with encoder feedback loops

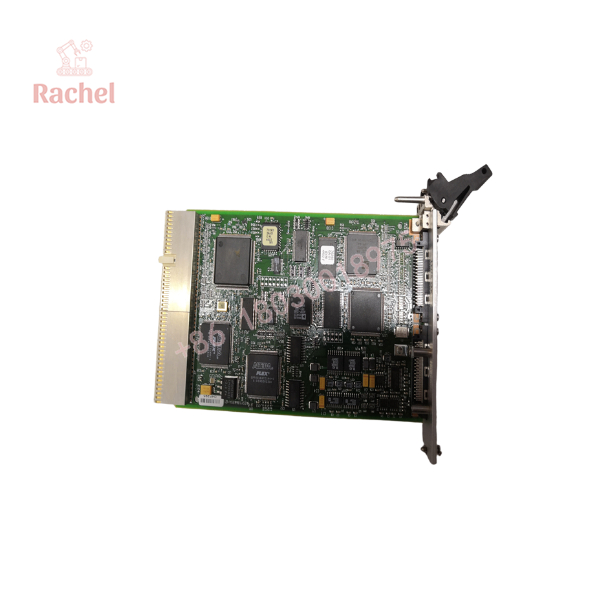

PXI-7344

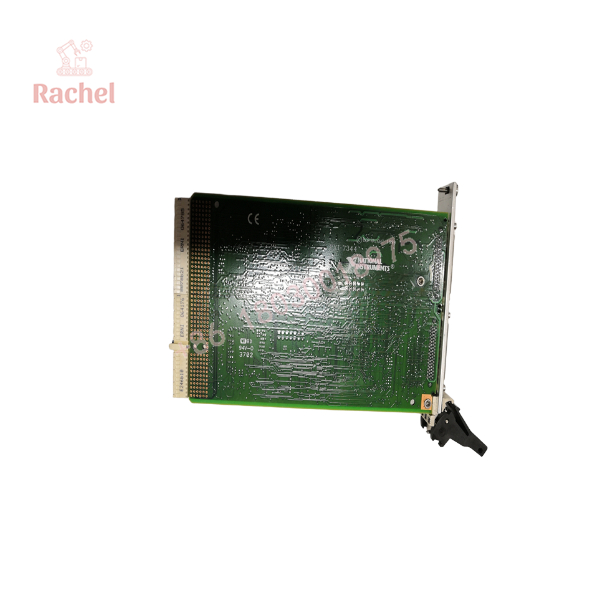

PXI-7344
Transparency SOP: QA & Testing
For a surplus or refurbished PXI-7344, functional verification should include:
- Physical inspection
- Confirm NI identification labels
- Inspect PXI edge connector condition
- Check housing and mounting hardware
- Power-up verification
- Confirm PXI chassis recognition
- Verify module initialization
- Check onboard diagnostics
- Motion function testing
- Validate axis configuration
- Test encoder feedback response
- Confirm digital I/O operation
- Verify communication with NI motion software
A motion controller should not be treated as a simple plug-in board. The test process must confirm that the module can execute real control functions before it enters spare inventory.
The Veteran’s Tech Trap Guide
⚠️ Firmware and software compatibility can stop a replacement
The PXI-7344 depends on NI-Motion software support and correct driver versions. A replacement module may power up normally but fail during application loading if the software environment does not match.
⚠️ Do not overlook stored motion parameters
Servo tuning values, acceleration profiles, encoder scaling, and axis limits are part of the machine behavior. Always back up configuration files before removing the original controller.
PRO TIP: Record the original PXI slot location. Some older automation applications reference hardware resources by chassis position.
⚠️ Encoder wiring mistakes look like mechanical problems
Incorrect encoder polarity, feedback scaling, or signal wiring can create following errors that appear to be motor or drive failures.
Dynamic FAQ
Q1. What is the NI PXI-7344 used for?
The PXI-7344 is a four-axis motion controller module used for servo and stepper motor automation applications inside PXI systems.
Q2. Is the PXI-7344 still available from NI?
The PXI-7344 has been discontinued by National Instruments and is no longer available as a current production item. Replacement availability depends on remaining inventory and tested industrial spare sources.
Q3. Can PXI-7344 replace PCI-7344?
No direct physical replacement is possible because the interfaces are different. The application architecture, chassis type, and software configuration must be considered.
Q4. What should be checked before replacing a PXI-7344?
Verify:
- NI-Motion software version
- PXI chassis compatibility
- Existing axis configuration
- Servo tuning parameters
- Encoder feedback wiring
Q5. Does a refurbished PXI-7344 include testing?
A qualified refurbished unit should include PXI recognition testing, I/O verification, and motion function checks before shipment.
Q6. What warranty should I expect for a surplus PXI-7344?
Warranty depends on supplier testing standards and product condition. New surplus and refurbished industrial automation modules are typically supplied with limited functional warranty coverage.
