Oriental Motor PMD03C Stepper Motor Driver

Description

Product Introduction & Engineering Value

The PMD03C belongs to an older generation of Oriental Motor stepper-motor drive hardware. It was used as the control circuit for compatible stepper motors and appears in Oriental Motor documentation alongside the PMC motor series.

This is exactly the type of component where substitution needs to be handled carefully. The driver, motor winding configuration, supply voltage, control signals, and mounting arrangement all have to agree. A visually similar stepper driver is not necessarily electrically compatible.

Technical Specifications

Oriental Motor’s historical installation documentation gives the PMD03C a mounting-plate pattern of approximately 50 × 66 mm, with four 3.2 mm mounting holes. It also specifies the use of insulation-type spacers when securing the driver to equipment.

The manufacturer’s archived material also warns that the driver can generate substantial heat. The documented installation guidance states that the heat sink should not exceed 176°F (80°C) and calls for forced cooling when that temperature is exceeded.

Important procurement limitation: Oriental Motor’s current PMD03C product page does not expose a complete electrical specification table in the accessible page content. Therefore, I would not state an input voltage, output current, step resolution, or motor-current rating without verifying the original PMD03C datasheet or the nameplate on the actual unit.

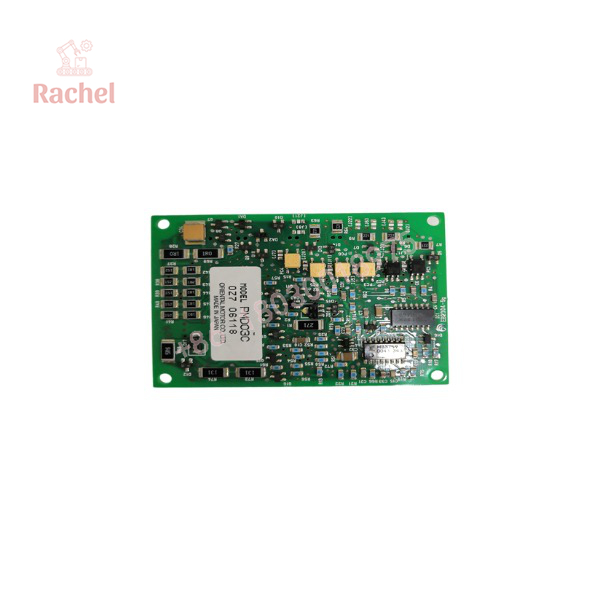

PMD03C

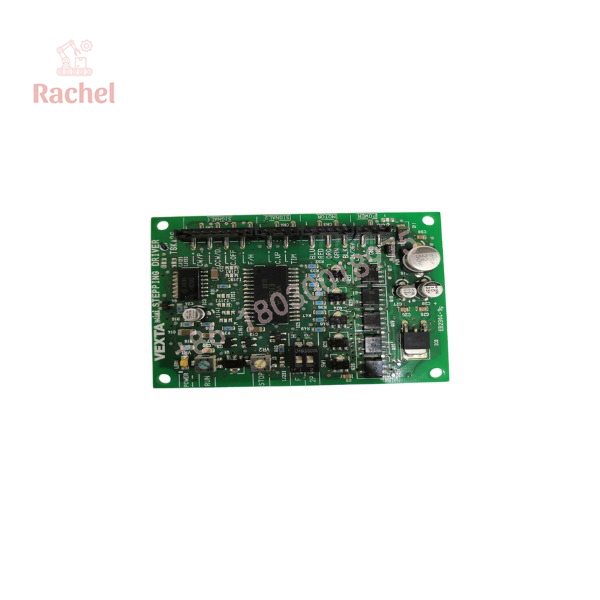

PMD03C

Field Application & the “Trench” Experience

A legacy indexing machine uses an Oriental Motor stepper system to position a workpiece under a cutting station. The machine’s PLC and mechanical system are still serviceable, but the original stepper driver develops an intermittent fault after years of operation.

The replacement decision is not simply “find another stepper driver.” The maintenance engineer first identifies the PMD03C, confirms the connected motor model, checks the existing control wiring, and verifies the mechanical mounting dimensions. A matching PMD03C is then installed and the motor is tested through its complete operating range.

That approach avoids changing acceleration behavior, control interfaces, and motor compatibility merely to replace one failed legacy component.

Specific application scenarios

• Legacy indexing and positioning machinery
• PMC-series stepper-motor assemblies
• Automated inspection mechanisms
• Small material-feed mechanisms
• Older packaging and assembly equipment
• Replacement of failed Oriental Motor control circuits

Oriental Motor’s archived catalogs show PMD03C paired with several PMC-series motor configurations, including PMC33A2, PMC33B2, PMC35A2, and PMC35B2.

Transparency SOP: QA & Testing

For a New Surplus or Refurbished PMD03C, testing should focus on the complete motor-driver combination.

1. Identification

• Confirm the PMD03C model marking.
• Photograph the nameplate and terminal markings.
• Record the connected motor model.
• Compare the replacement’s physical dimensions with the original.

2. Physical inspection

Inspect the PCB, terminals, heat sink, mounting points, and insulation spacers. Pay particular attention to evidence of thermal stress.

3. Functional test

With a known-compatible motor and suitable control source:

• Apply the correct supply voltage.
• Verify motor startup.
• Check commanded direction.
• Test low- and high-speed operation within the original system’s limits.
• Monitor driver temperature.
• Check for abnormal vibration or missed positioning.

The thermal test is particularly important. Oriental Motor’s installation documentation explicitly warns about heat generation from the PMD03C.

For refurbished inventory, request documented motor-load testing rather than accepting a simple “powers on” inspection.

The Veteran’s Tech Trap Guide

⚠️ Trap 1: Treating PMD03C as a generic stepper driver

It is not.

The PMD03C belongs to an older Oriental Motor system and was supplied as a dedicated control circuit. Compatibility needs to be checked against the motor and original control system.

PRO TIP: Get the motor’s complete model number before ordering the replacement driver.

⚠️ Trap 2: Ignoring thermal installation

The PMD03C can generate substantial heat. Oriental Motor specifies a heat-sink temperature limit of 80°C / 176°F and calls for forced cooling if that limit is exceeded.

A replacement that works perfectly on the bench can still fail prematurely inside a poorly ventilated cabinet.

⚠️ Trap 3: Removing the insulation spacer

Oriental Motor’s archived installation instructions specifically call for an insulation-type spacer when mounting the PMD03C.

Do not treat the spacer as optional hardware.

⚠️ Trap 4: Assuming the product is still supported

Oriental Motor officially lists the PMD03C as discontinued, with discontinuation dated April 1, 2014.

For long-term spare planning, consider maintaining tested surplus inventory rather than waiting for a failure.

Dynamic FAQ

Q1. What is the Oriental Motor PMD03C?

The PMD03C is an Oriental Motor stepper-motor driver/control circuit used with older Oriental Motor stepper systems.

Q2. Is the PMD03C still manufactured?

No. Oriental Motor identifies the PMD03C as a discontinued product, with the product discontinued on April 1, 2014.

Q3. What motors are associated with the PMD03C?

Archived Oriental Motor documentation shows the PMD03C used with multiple PMC-series stepper-motor configurations, including PMC33A2, PMC33B2, PMC35A2, and PMC35B2.

Q4. What are the PMD03C mounting dimensions?

The archived Oriental Motor installation material specifies a 50 × 66 mm mounting pattern with four approximately 3.2 mm diameter mounting holes. An insulation-type spacer is specified for mounting.

Q5. What should I verify before purchasing a replacement?

Verify the PMD03C model, connected motor model, terminal configuration, original supply/control wiring, mounting dimensions, and thermal installation conditions. Because the unit is discontinued, also verify the hardware’s actual condition and test history.

Q6. Are New Surplus or refurbished PMD03C units suitable for legacy equipment?

They can be appropriate for maintaining an existing machine, provided the exact PMD03C version is verified and the unit is function-tested with a compatible motor. For New Surplus, request confirmation that the unit is unused and authentic; for Refurbished, request documented motor-load testing and a written warranty.
