Partlow P6702 1/16 DIN Temperature Controller

Description

Product Introduction

The Partlow P6702 is a compact, highly reliable 1/16 DIN digital temperature and process controller engineered for precise thermal management across industrial manufacturing equipment. Built on Partlow’s proven 6700 series hardware platform, this unit delivers flexible closed-loop control utilizing advanced PID auto-tuning or simple ON/OFF control profiles.

Unlike basic panel meters that suffer from drift over time, the P6702 accepts universal sensor inputs—including thermocouples (J, K, T, R, S), RTDs (Pt100), and linear DC millivolt/milliamp signals—making it an adaptable drop-in unit for thermal processing racks. Its dual LED display provides real-time visibility of both the Process Variable (PV) and Setpoint Variable (SV), ensuring clear operator feedback in high-intensity thermal processing environments.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 3:30 PM on a Friday shift. A commercial plastic extrusion line suffers a heater band runaway alarm on Barrel Zone 2. The primary temperature controller—an old Partlow unit—has a dead upper display and the relay output is stuck closed, baking the raw polymer inside the barrel. The extrusion head is clogging fast, and every minute the line sits overheated, material degrades, threatening hours of teardown and manual cleaning.

To be honest, situations like this are where having a pre-configured, bench-verified Partlow P6702 on standby saves the shift. Swapping the controller out, snapping it into the standard 1/16 DIN cut-out, and transferring the terminal wiring harness gets the barrel zone back under tight PID control before the plastic sets up solid.

• Plastics & Extrusion: Managing barrel heater zones, hot runner molds, and blow molding thermal profiles.
• Packaging Machinery: Precise sealing-bar temperature regulation on form-fill-seal and shrink-wrapping machinery.
• Industrial Ovens & Furnaces: Controlling electric heat banks and gas burners in heat-treating, curing, and baking ovens.
• Food Processing Equipment: Regulating fryer oils, steam cookers, and commercial food holding cabinets under NEMA 4X washdown conditions.

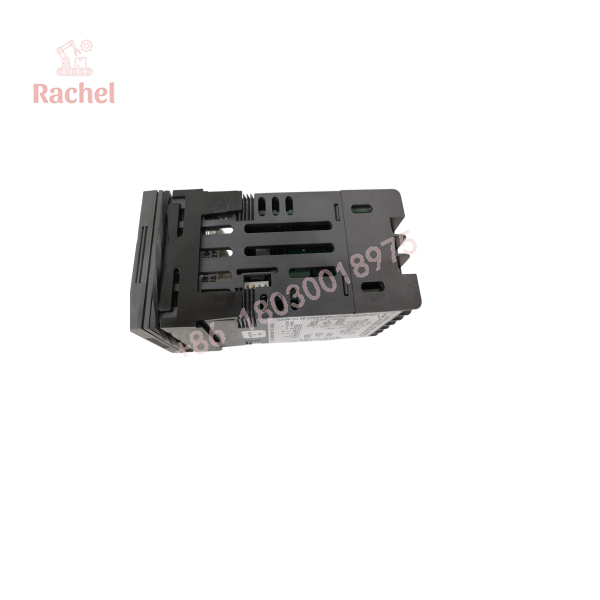

P6702

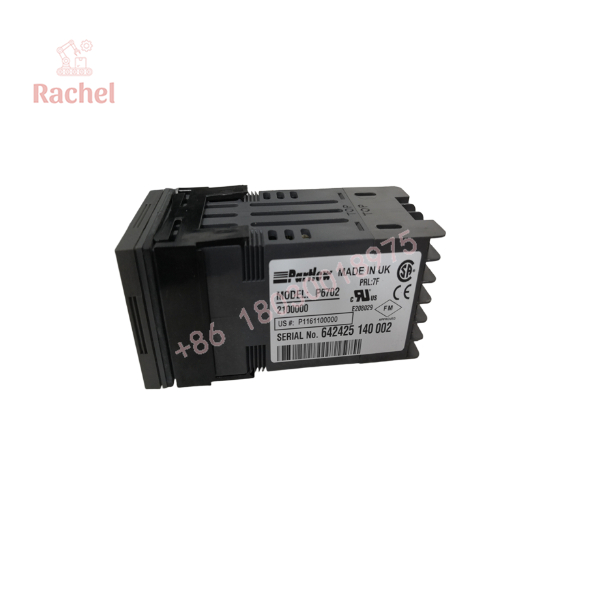

P6702

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual sensor-and-load test benches. Every new surplus or refurbished Partlow P6702 controller undergoes a mandatory 5-step engineering verification SOP:

1. Inbound Visual & Housing Check: Microscopic inspection of terminal screws, bezel gaskets, front-panel membrane buttons, and rear latching clips.
2. Power-On & Display Diagnostics: Applying rated line voltage (115/230 VAC) to verify boot-up sequences, dual display LED segment clarity, and front panel button response.
3. Sensor Input Calibration Test: Simulating Type K thermocouple and 3-wire Pt100 RTD inputs using a calibrated millivolt generator to verify reading accuracy across full temperature ranges.
4. Control Output & Relay Cycle Stress Test: Exercising output relays and SSR driver ports under a continuous load loop for 2 hours to confirm clean switching without contact chatter or thermal drift.
5. Clear Parameters & Anti-Static Packaging: Resetting user configuration profiles back to factory defaults, verifying terminal protection covers, and sealing the unit in heavy-duty ESD wrap with custom foam packaging.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

If you’re replacing a Partlow P6702 controller in an active control panel, watch out for these practical pitfalls:

• ⚠️ Deciphering Option Suffix Codes: Partlow model numbers use a structured option matrix (e.g., P6702-XXXX). The trailing numbers define whether Output 1 is a mechanical Relay, DC SSR Driver, or Linear 4-20mA signal! Plugging a Relay-output model into a panel wired for an SSR driver can burn out the controller or leave your heater locked on. Always check the full part number string on the side label.
• ❗ Cold Junction Compensation (CJC) Errors: If your thermocouple reading is off by 30 to 50 degrees right out of the box, verify that the controller’s input type matches your field wire (Type J vs. Type K). Also, ensure you are using actual thermocouple extension wire all the way to the rear terminals—copper wire patched into a thermocouple run destroys CJC accuracy.
• ⚠️ Panel Mount Retaining Clip Tension: Don’t overtighten the rear plastic mounting sleeve when securing the P6702 into the enclosure cutout! Excessive torque deforms the outer housing, which can cause the front membrane keys to bind or ruin the IP66 water-tight bezel seal.
• ❗ Auto-Tune Over-Shooting: When running Auto-Tune (AT) on a cold system, the controller will cycle the heat on and off to calculate thermal inertia. If your process cannot tolerate ANY temperature overshoot during setup, pre-heat the system manually to near setpoint before initiating the Auto-Tune routine.

Frequently Asked Questions (FAQ)

Q: What is the standard panel cutout size for the Partlow P6702?A: The P6702 conforms to standard 1/16 DIN dimensions, requiring a square panel cutout of 45mm x 45mm (1.77″ x 1.77″) with an outer bezel dimension of 48mm x 48mm.

Q: Can I use the P6702 with a 3-wire RTD sensor?A: Yes. The universal input terminals support 3-wire Pt100 RTD sensors as well as standard thermocouples. Sensor selection is configured in the unit’s setup menu.

Q: What is the difference between Partlow, West, and Gulton controllers?A: Partlow, West, and Gulton all operated under the same corporate parent umbrella (Danaher / Fortive / West Control Solutions). Many 1/16 DIN series controllers (like the Partlow 6700 and West 6100) share identical hardware footprints, internal menu structures, and mounting brackets.

Q: How do I lock the setpoint so operators don’t tamper with the temperature settings?A: The P6702 includes a built-in security lockout level in the configuration menu. You can set access levels to lock out parameter changes completely or allow setpoint changes while locking advanced setup menus.

Q: What warranty coverage comes with this module?A: Every Partlow P6702 unit—whether New Surplus or OEM Refurbished—comes backed by our full 12-Month Replacement Warranty. If a hardware fault occurs within 365 days under standard operating conditions, we replace it directly from stock.
