ProSoft 5204-DFNT-PDPMV1 ProLinx Protocol Interface Module

Description

Product Introduction

The ProSoft 5204-DFNT-PDPMV1 is a rugged ProLinx series communication gateway designed to bridge EtherNet/IP control networks—such as Allen-Bradley ControlLogix, CompactLogix, or MicroLogix systems—directly to PROFIBUS DP and DPV1 field networks. Instrumentation engineers use this gateway when adding European process drives or motor management systems to an existing Rockwell PLC infrastructure.

Instead of installing expensive in-rack PROFIBUS scanner cards or rewriting core PLC ladder logic, the 5204-DFNT-PDPMV1 operates independently on a standard DIN rail. Its internal 4000-word database decouples network speeds, executing high-speed PROFIBUS Master polling while exposing mapped registers cleanly to your EtherNet/IP host via I/O assembly connections or explicit messaging.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A food and beverage processing facility ran into a major roadblock during a line expansion: their new high-speed homogenizer arrived with a complete suite of Siemens ET 200S I/O and PROFIBUS VFDs, but the main plant standard was an Allen-Bradley ControlLogix L71 over EtherNet/IP. The OEM wanted weeks to re-engineer the skid. Slapping a pre-tested ProSoft 5204-DFNT-PDPMV1 onto the panel DIN rail allowed the AB processor to read all PROFIBUS drive status words via EtherNet/IP implicit messaging, bringing the line online in under 4 hours.

• Water & Wastewater – Motor Control Center Integration – Bridges Allen-Bradley PLCs to PROFIBUS-based intelligent motor protectors and soft starters.
• Chemical & Pharmaceutical – Field Instrumentation Networks – Connects EtherNet/IP PACs to PROFIBUS PA/DP flowmeters and valve positioners via coupler blocks.
• Material Handling & Conveyors – Multi-Drive Coordination – Gathers speed, torque, and fault diagnostics from Siemens drive clusters into Rockwell HMI platforms.

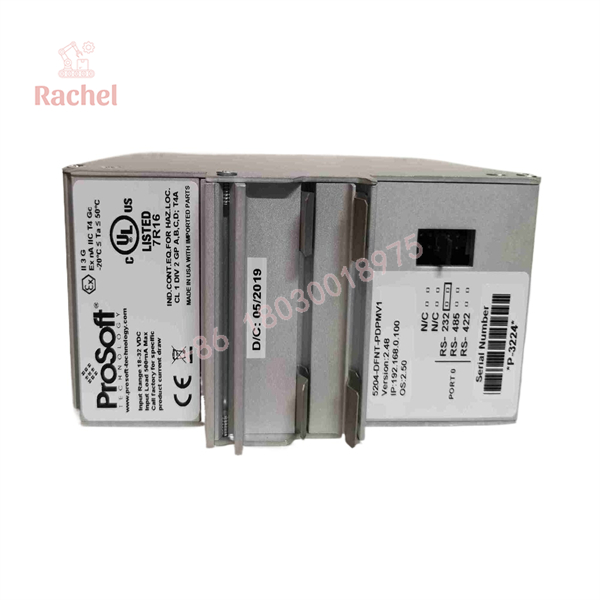

5204-DFNT-PDPMV1

5204-DFNT-PDPMV1

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual PLC networks. Every 5204-DFNT-PDPMV1 module undergoes a strict 5-step bench validation before entering our inventory:

1. Inbound Physical Inspection: Thorough check for housing latch integrity, terminal block screw condition, DB9 connector pins, and serial number tag verification.
2. Power-On Self-Test (POST): 24V DC boot check to confirm status LEDs, onboard CPU initialization, and clean memory allocation.
3. EtherNet/IP Traffic Sweep: Ping and Class 1 I/O connection handshake validation using a CompactLogix L33ER controller over standard Ethernet switches.
4. PROFIBUS Loop Execution: Connected to a live test loop containing Siemens VFD drops at 1.5 Mbps to verify cyclic I/O polling and DPV1 acyclic read/write parameter channels.
5. Anti-Static Packaging: Cleared gateways are wiped down, fitted with port covers, and sealed in heavy ESD shielding bags with fresh desiccant.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ GSD File Import in PCB Software: Before your 5204-DFPMV1 can talk to field devices, you MUST import the exact .GSD files for every slave node into ProSoft Configuration Builder (PCB). To be honest, engineers spend hours wondering why the “PROFIBUS Master LED” is flashing red when they simply forgot to match the module slot configuration defined in the slave device’s native GSD file.
• ❗ EtherNet/IP Assembly Byte Swapping: Big-Endian vs. Little-Endian data handling will bite you if you aren’t paying attention. Rockwell PLCs store integers differently than PROFIBUS data structures. Check the “Swap Bytes” or “Swap Words” options in the ProSoft configuration layout if your floating-point process values come across as gibberish in Studio 5000.
• ⚠️ Termination Resistors on RS-485: Even though the gateway auto-detects baud rates up to 12 Mbps, standard PROFIBUS termination rules still apply strictly. Ensure the DB9 connector on the 5204 has its built-in terminating resistor switched ON if it resides at the physical end of the daisy chain.

Frequently Asked Questions (FAQ)

Q: Does the 5204-DFNT-PDPMV1 support DPV1 acyclic messaging for drive parameters?

A: Yes. The PDPMV1 driver supports both DPV0 cyclic I/O data exchange and DPV1 Class 1/Class 2 acyclic messaging. This allows your ControlLogix PLC to send explicit parameter edits or read deep diagnostic data from smart field instruments.

Q: Can I configure this gateway directly through the Ethernet port?

A: Initial configuration is typically uploaded via the included serial debug cable using ProSoft Configuration Builder (PCB). However, once an IP address is assigned to the Ethernet interface, you can perform configuration uploads and diagnostic monitoring over your local network.

Q: What is the primary difference between the 5204-DFNT-PDPMV1 and older 5204-DFNT-PDP modules?

A: The “PDPMV1” designation indicates full PROFIBUS DPV1 Master capabilities (acyclic data messaging and advanced diagnostics), whereas older legacy “PDP” models only supported standard DPV0 cyclic I/O exchanges.

Q: What warranty coverage is included with this pre-owned / surplus gateway?

A: Every ProSoft 5204-DFNT-PDPMV1 unit sold comes standard with a full 12-month operational replacement warranty. If the gateway experiences power rail failures or communication port drops within one year, we replace it or issue a full refund.

Q: Are these genuine ProSoft Technology products?

A: Yes. All stock consists of original OEM hardware reclaimed from plant upgrades, system retrofits, or verified factory surplus inventories.
