Description
Product Introduction & Engineering Value
The practical value of the PROSOFT 4301-MBP-DFCM is protocol conversion. Instead of replacing an existing DF1 device simply because the supervisory or control network uses Modbus Plus, the gateway can provide the required communications bridge. This makes it useful for extending the service life of installed PLC and instrumentation assets.
Available documentation identifies support for DF1 Master/Slave operation and Modbus Plus connectivity, with applications involving Rockwell Automation PLC families such as ControlLogix, SLC, and PLC systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ProSoft Technology |
| Model | 4301-MBP-DFCM |
| Product type | Protocol gateway / communication module |
| Modbus Plus | Supported |
| DF1 | Master/Slave |
| Primary function | Modbus Plus ↔ DF1 communications |
| Compatible PLC environments | Rockwell Automation PLC systems, including CLX/SLC/PLC families |
| Processor | PowerPC 604e, according to secondary-market documentation |
| Processor frequency | 400 MHz, according to secondary-market documentation |
| Memory | 256 MB SDRAM, according to secondary-market documentation |
| Typical application | Legacy PLC and device network integration |
Specification caution: Some online listings conflict substantially on the 4301-MBP-DFCM’s hardware and network specifications. For example, one listing incorrectly describes two PROFIBUS DP ports, while other sources consistently identify the unit as a Modbus Plus-to-DF1 gateway. For procurement purposes, the protocol/function should therefore be verified against the original ProSoft documentation and the physical nameplate rather than copied from an unverified reseller listing.
Field Application & the “Trench” Experience
Consider a plant with an established Modbus Plus network and several older PLC-based packages using DF1 communications. During a control-system migration, the engineering team decides that replacing every legacy controller would create unnecessary commissioning risk. The 4301-MBP-DFCM provides a practical migration point: preserve the field equipment while establishing the required communication path into the existing Modbus Plus architecture.
That approach is particularly useful when the old PLCs still perform their intended control functions and the real problem is network interoperability, not controller performance.
Niche application scenarios
- Legacy SLC 500 Skid Integration — connecting DF1-based packaged equipment to a plant Modbus Plus network.
- Water-Treatment Pump Station Communications — retaining existing PLC-controlled pumping equipment during supervisory-system upgrades.
- Process Instrumentation Gateway Applications — exchanging mapped data between legacy DF1 equipment and a Modbus Plus control architecture.
Transparency SOP: QA & Testing
A sensible inspection process for New Surplus or Refurbished 4301-MBP-DFCM inventory should include:
- Part-number verification — confirm
4301-MBP-DFCMand inspect all hardware/revision markings. - Physical inspection — check enclosure, connectors, communication ports, mounting hardware, and circuit-board condition.
- Power-up evaluation — verify startup behavior and diagnostic indicators.
- Communications test — where suitable test equipment is available, establish Modbus Plus and DF1 communications.
- Protocol verification — confirm expected Master/Slave behavior and data exchange.
- Final inspection — document test status, condition, serial information, and any limitations.
New Surplus should not be confused with factory-current production stock. Secondary-market condition, original packaging, and testing scope should be stated separately.

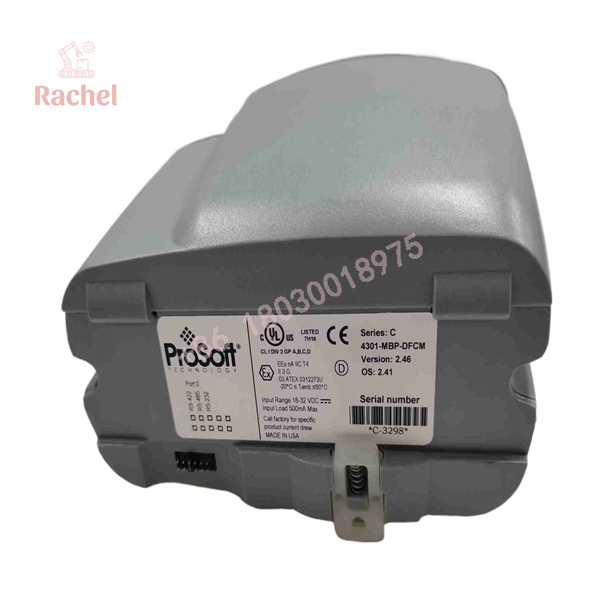

4301-MBP-DFCM

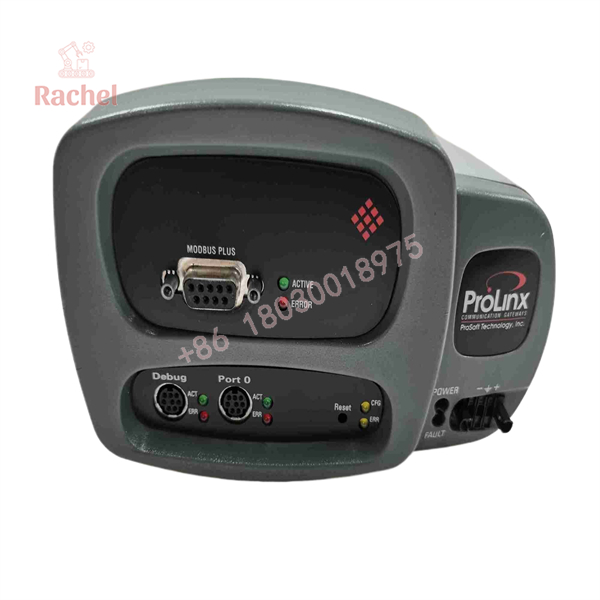

4301-MBP-DFCM
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Confusing Modbus with Modbus Plus.
They are not interchangeable protocols. The 4301-MBP-DFCM specifically concerns Modbus Plus and DF1 communications, so network architecture must be checked before substitution.
⚠️ Trap #2 — Treating protocol conversion as transparent by default.
Data mapping, addressing, polling behavior, and Master/Slave configuration still need to be engineered. Installing the gateway does not automatically make every data point available.
⚠️ Trap #3 — Trusting contradictory reseller specifications.
There are online listings attributing PROFIBUS interfaces and other specifications to this model that conflict with the documented Modbus Plus/DF1 function. Verify against the unit’s label and authoritative documentation before approving a purchase.
PRO TIP: Before ordering, capture the existing module’s complete part number, firmware revision, serial number, and communication-port configuration. For legacy communication equipment, those details can matter more than the marketing description.
Dynamic FAQ
Q: What does the PROSOFT 4301-MBP-DFCM do?
A: It is a communication gateway designed to connect a Modbus Plus network with DF1 devices, allowing legacy equipment to exchange data with the wider control architecture.
Q: Is it a PLC processor?
A: No. Its primary role is communications and protocol conversion rather than serving as the main control processor.
Q: Does it support DF1 Master and Slave operation?
A: Available product documentation identifies the 4301-MBP-DFCM as supporting DF1 Master/Slave functionality.
Q: Is New Surplus 4301-MBP-DFCM available?
A: Secondary-market listings currently identify the model as available in new/used condition, but actual inventory condition should be confirmed at the time of purchase.
Q: How should New Surplus authenticity be verified?
A: Request clear photographs of the original ProSoft label, complete model number, serial/assembly information, packaging if available, and the supplier’s testing or inspection record.
Q: What warranty should I request?
A: Confirm the exact warranty period, DOA policy, functional-test coverage, and return conditions. Some secondary-market listings advertise one-year coverage, but that is a supplier-specific commercial term rather than an inherent specification of the module.
