Description
Product Introduction & Engineering Value
The 5205-DFNT-PDPS solves a specific integration problem: allowing equipment on an EtherNet/IP network to exchange data with a PROFIBUS DP master. Its PROFIBUS driver implements PROFIBUS V0 Slave functionality, while the EtherNet/IP side supports Explicit Messaging and configurable Client/Server operation.
This is a legacy ProLinx product. ProSoft’s current legacy-product documentation identifies PLX51-PBS as the replacement platform for the 5205-DFNT-PDPS, while noting that migration may require configuration changes.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ProSoft Technology |
| Part Number | 5205-DFNT-PDPS |
| Product Family | ProLinx 5000 Series |
| Gateway Type | EtherNet/IP to PROFIBUS DP Slave |
| EtherNet/IP | Supported |
| EtherNet/IP Mode | Explicit Messaging; configurable Client/Server |
| PROFIBUS Function | DP Slave |
| PROFIBUS Version | PROFIBUS V0 |
| PROFIBUS Connector | Configurable DB9F |
| Ethernet Ports | 1 |
| Mounting | Stand-alone DIN rail |
| Supply | 24 VDC |
| Rated Current | 500 mA listed by Rexel |
| PROFIBUS Slave Address | Configurable, 0–125 |
ProSoft’s documentation confirms the EtherNet/IP and PROFIBUS DP Slave architecture. A distributor listing specifies 24 VDC, 500 mA, while the detailed slave documentation identifies configurable node addressing.
Important: Do not confuse the 5205-DFNT-PDPS with the 5205-MNET-PDPS. The former is EtherNet/IP-based; the latter is designed around Modbus TCP/IP. ProSoft lists them as separate legacy products.
Field Application & the “Trench” Experience
A plant modernization project had a Siemens-based PROFIBUS master controlling a group of legacy field devices, while the newer supervisory equipment was built around EtherNet/IP. Replacing the entire PROFIBUS segment would have meant changing validated control hardware and reworking field-device configuration.
The 5205-DFNT-PDPS provides the protocol boundary: the existing PROFIBUS master sees a PROFIBUS slave, while the Ethernet-side control system exchanges mapped data through EtherNet/IP. The engineering work is then concentrated on the data map, addressing, update behavior, and communication diagnostics.
Niche application scenarios
- Legacy PROFIBUS Remote-I/O Integration — expose existing PROFIBUS data to an EtherNet/IP-based supervisory or control architecture.
- Siemens PROFIBUS Master to Rockwell Ethernet Integration — exchange selected process data between otherwise different automation networks.
- Machine Modernization — retain an installed PROFIBUS device network while upgrading the upstream controller or HMI infrastructure.

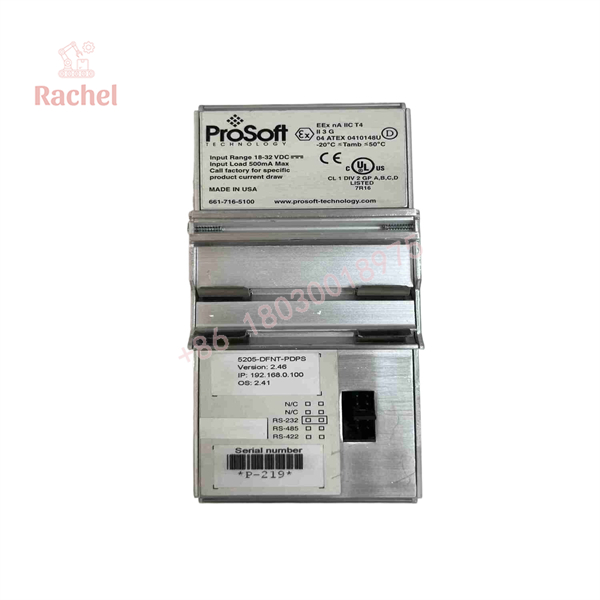

5205-DFNT-PDPS

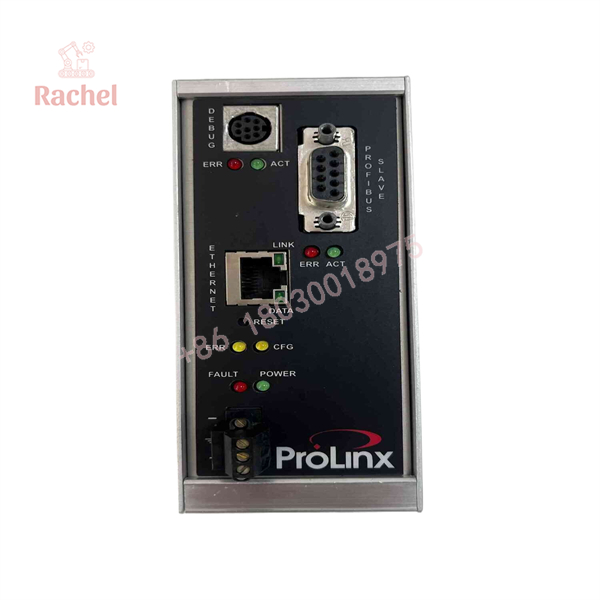

5205-DFNT-PDPS
Transparency SOP: QA & Testing
A proper New Surplus / Refurbished 5205-DFNT-PDPS inspection should include:
1. Identity check
Verify the complete 5205-DFNT-PDPS part number, label, serial information, and revision markings.
2. Physical inspection
Inspect the Ethernet connector, PROFIBUS DB9F connector, power terminals, LEDs, enclosure, DIN-rail mechanism, and accessible PCB areas.
3. Power-up verification
Apply the specified DC supply under controlled conditions and check startup diagnostics.
4. EtherNet/IP test
Connect the gateway to an appropriate test network and verify Ethernet communications and expected messaging behavior.
5. PROFIBUS test
Operate the unit as a DP slave against a suitable PROFIBUS master and verify cyclic data exchange.
6. Data-mapping verification
Confirm representative input/output data transfers correctly between the two protocols.
7. Final inspection
Document test results, physical condition, configuration status, and any firmware information.
ProSoft provides a GSD file specifically associated with the 5205-DFNT-PDPS, which is important when integrating the gateway into the PROFIBUS master’s configuration.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Forgetting the GSD file.
The PROFIBUS master needs the appropriate device definition. The 5205-DFNT-PDPS has a dedicated ProLinx GSD file; don’t substitute a generic PROFIBUS slave definition.
⚠️ Trap #2 — Confusing PROFIBUS Master and Slave roles.
The 5205-DFNT-PDPS is the PROFIBUS DP Slave. The external PROFIBUS controller must operate as the master. ProSoft’s 5204-DFNT-PDPMV1, by contrast, is a DP Master gateway.
⚠️ Trap #3 — Assuming the current replacement is a zero-change substitute.
ProSoft identifies PLX51-PBS as the replacement for the legacy 5205-DFNT-PDPS. The newer platform can provide legacy-module emulation, but Ethernet-side configuration changes may still be required.
PRO TIP: Save the working GSD file, PROFIBUS node address, data-size configuration, EtherNet/IP data map, and gateway configuration file with the spare. That information can substantially shorten recovery time when an obsolete communication gateway fails.
Dynamic FAQ
Q: What is the ProSoft 5205-DFNT-PDPS used for?
A: It is an industrial protocol gateway that connects an EtherNet/IP network to a PROFIBUS DP master by operating as a PROFIBUS DP slave.
Q: Is the 5205-DFNT-PDPS compatible with EtherNet/IP?
A: Yes. ProSoft specifies an EtherNet/IP driver supporting Explicit Messaging, with configurable Client and Server operation.
Q: Is it a PROFIBUS DP master?
A: No. The 5205-DFNT-PDPS is a PROFIBUS DP slave.
Q: What is the current replacement?
A: ProSoft identifies the PLX51-PBS as the replacement platform for the 5205-DFNT-PDPS.
Q: Is New Surplus 5205-DFNT-PDPS still relevant?
A: Yes, particularly for maintaining an existing validated ProLinx installation. Since ProSoft classifies the unit as a legacy product, verified surplus or refurbished inventory can be relevant when the installed configuration needs to remain unchanged.
Q: How should New Surplus authenticity and warranty be verified?
A: Request clear photographs of the original ProSoft label, complete part number, serial/revision information, and packaging if available. Also confirm whether the supplier’s warranty covers DOA, functional communication testing, and returns.
