ProSoft 5301-MBP-DFCM Modbus Plus to DF1 Gateway

Description

Product Introduction

The ProSoft 5301-MBP-DFCM is a standalone ProLinx series communication gateway designed to bridge legacy Schneider Electric/Modicon Modbus Plus networks with Allen-Bradley DF1 serial platforms. Automation technicians and plant engineers rely on this interface when integrating legacy Modicon Quantum or Momentum PLCs with Allen-Bradley SLC 500, MicroLogix, or PLC-5 controllers.

Rather than replacing functioning legacy controllers or attempting complex ladder-logic translation schemes, the 5301-MBP-DFCM functions as an independent hardware bridge. Its internal shared memory database moves process values between Modbus Plus global data nodes and DF1 serial lines seamlessly, protecting existing hardware investments without adding scan-time overhead to your primary processors.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A municipal wastewater plant encountered an operational nightmare when the main SCADA head-end—running on an older Modicon Modbus Plus loop—lost communications with a remote chlorination building controlled by an Allen-Bradley SLC 5/03 over DF1 radio modems. The loss of telemetry threatened an unmonitored chemical discharge violation. With OEM lead times stretched and budget tight, technicians mounted a pre-tested ProSoft 5301-MBP-DFCM gateway onto the panel DIN rail. The unit translated the DF1 serial strings into Modbus Plus global data words, restoring telemetry to the main HMI in less than two hours.

• Water & Wastewater Treatment – Hybrid SCADA Interfacing – Maps legacy Modicon Modbus Plus backbone data to remote Allen-Bradley SLC or MicroLogix RTUs.
• Chemical & Processing Facilities – Distributed Tank Farm Telemetry – Links legacy Modicon Quantum PLCs to serial-based gas detection and weight transmitter skids.
• Power Generation – Auxiliary Turbine Control – Connects Modbus Plus main control loops to legacy PLC-5 serial sub-panels.

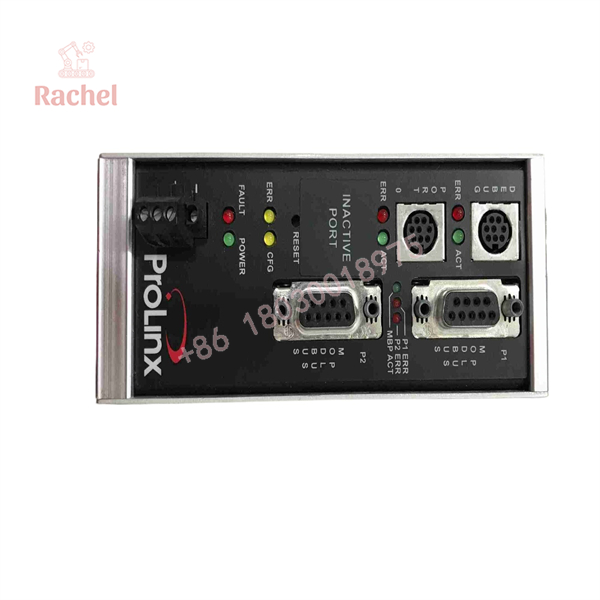

5301-MBP-DFCM

5301-MBP-DFCM

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual PLC racks. Every 5301-MBP-DFCM module undergoes a strict 5-step bench validation before entering our inventory:

1. Inbound Physical Inspection: Complete inspection of DIN rail clip spring mechanics, terminal blocks, housing integrity, and serial number tag verification.
2. Power-On Self-Test (POST): 24V DC boot check to confirm status LEDs, CPU initialization, and memory self-diagnostics.
3. Modbus Plus Loop Validation: Connected to a live Modicon Modbus Plus test node to verify global data node registration and token pass timing.
4. DF1 Serial Sweep: Dual-port RS-232/RS-485 communication testing using an Allen-Bradley SLC 5/03 controller to verify cyclic messaging and packet integrity.
5. Anti-Static Packaging: Cleared modules are wiped down, fitted with protective port covers, and sealed in ESD shielding bags with fresh desiccant.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Modbus Plus Node Address Swapping: Remember to double-check the DIP switches or software settings for your Modbus Plus Node Address before applying power! If the 5301-MBP-DFCM attempts to join the Modbus Plus token ring with an address already occupied by a Modicon PLC or HMI, it will cause token corruption across the entire network loop.
• ❗ Baud Rate & Parity Matching on DF1: DF1 serial communication is strictly non-negotiable when it comes to matching settings. If your SLC 500 serial port is configured for 19200 baud, 8 data bits, 1 stop bit, and No Parity, the ProSoft DFCM port configuration in ProSoft Configuration Builder (PCB) must match identically—otherwise, you’ll stare at a blinking red serial fault LED all day.
• ⚠️ Null Modem vs. Straight-Through Cabling: To be honest, RS-232 serial cabling trips up engineers constantly. Connecting the 5301-MBP-DFCM RS-232 port directly to an Allen-Bradley Channel 0 serial port requires a proper null-modem cable pinout (TX/RX swapped). Using a standard straight-through cable will leave the ports silent.

Frequently Asked Questions (FAQ)

Q: Does the 5301-MBP-DFCM support both DF1 Full-Duplex and Half-Duplex modes?

A: Yes. The serial ports on the DFCM side can be independently configured for DF1 Full-Duplex (point-to-point) or DF1 Half-Duplex (master/slave multipoint) protocols via the ProSoft Configuration Builder software.

Q: Can I configure this gateway without an external serial configuration cable?

A: Initial configuration, internal register mapping, and node addressing are typically uploaded using ProSoft’s PCB software via the Mini-DIN 8-pin serial debug port. Having the proper ProSoft configuration cable on hand during commissioning is essential.

Q: What is the primary difference between the ProSoft 5301-MBP-DFCM and the 5201-MBP-DFCM?

A: The series generation and port capabilities differ. The 5301 belongs to the updated ProLinx 5000 family platform featuring enhanced diagnostic logging, faster internal database processing, and flexible multi-port serial options compared to legacy 5201 models.

Q: What warranty comes with these pre-owned / surplus ProSoft gateways?

A: Every ProSoft 5301-MBP-DFCM unit shipped includes a full 12-month operational replacement warranty. If you experience hardware power faults, token pass errors, or serial channel failures within one year, we replace it or issue a full refund.

Q: Are these genuine ProSoft Technology units?

A: Yes. All stock consists of original OEM hardware reclaimed from plant retrofits, system upgrades, or verified spare parts inventories.
