R. STAHL 944015-01-11 IS1 Remote I/O CPU Power Module

Description

Product Introduction & Engineering Value

The R. STAHL 944015-01-11 sits at the center of a compatible IS1/IS1+ remote I/O station. It combines the station CPU and power-supply functions while providing communication with the control system through PROFIBUS DP. Published technical information also identifies support for HART communication and station configurations containing up to 16 I/O modules.

For a maintenance replacement, the complete part number matters. The 9440/15-01-11 designation should be matched against the installed module and system documentation before installation. Do not substitute another 9440-series device simply because the housing or front labeling looks similar.

Technical Specifications

The available technical listing also describes system redundancy and optical-ring support for the module. These functions should be confirmed against the exact IS1/IS1+ system configuration before engineering a redundant replacement.

Important: hazardous-area certification is configuration-dependent. The host system, installation method, associated modules, wiring, and applicable approval requirements must all be checked against the current R. STAHL documentation before deployment.

Field Application & the “Trench” Experience

Picture an older process skid with remote I/O installed close to field instrumentation in a classified area. The PLC remains operational, but the remote station suddenly disappears from the PROFIBUS network. The technician checks the field modules first and finds no obvious fault. The next step is the station CPU/power module.

The replacement challenge is not simply finding another R. STAHL module with a similar number. The technician records the 944015-01-11 identification, PROFIBUS configuration, station wiring, module sequence, and LED condition before removing the failed unit. Once the replacement is installed, the station configuration is checked before returning the process to automatic operation.

Niche application scenarios

• Chemical reactor skid remote I/O: collecting hazardous-area temperature, pressure, and valve-status signals through an IS1/IS1+ station.
• Tank farm instrumentation: integrating HART-capable field devices with a centralized PROFIBUS DP control system.
• Process compressor auxiliary systems: maintaining a legacy remote-I/O architecture where replacing the entire control system would require a much larger engineering change.

The 9440/15-01-11 is specifically described as the CPU and power module for the IS1/IS1+ remote I/O architecture.

Transparency SOP: QA & Testing

For New Surplus inventory, a sensible incoming inspection should include:

1. Part-number verification
   Confirm the complete marking is 9440/15-01-11 / 944015-01-11. Record additional revision or date codes before shipment.
2. Physical inspection
   Examine the housing, terminal/interface areas, connector pins, mounting points, labels, and sealing surfaces for damage or corrosion.
3. Interface inspection
   Check the PROFIBUS and service-bus interfaces against the reference unit. A damaged connector can produce symptoms that resemble a CPU failure.
4. Configuration comparison
   Before commissioning, record the existing PROFIBUS address and station configuration. Do not assume the replacement will inherit the settings of the removed unit.
5. Functional verification
   Where test equipment and the compatible IS1/IS1+ test environment are available, verify power-up behavior, communication, diagnostic indications, and communication with the connected I/O station.

Condition matters: New Surplus should not be described as refurbished. A supplier should clearly state whether the unit is unused surplus, original packaging, tested surplus, or refurbished.

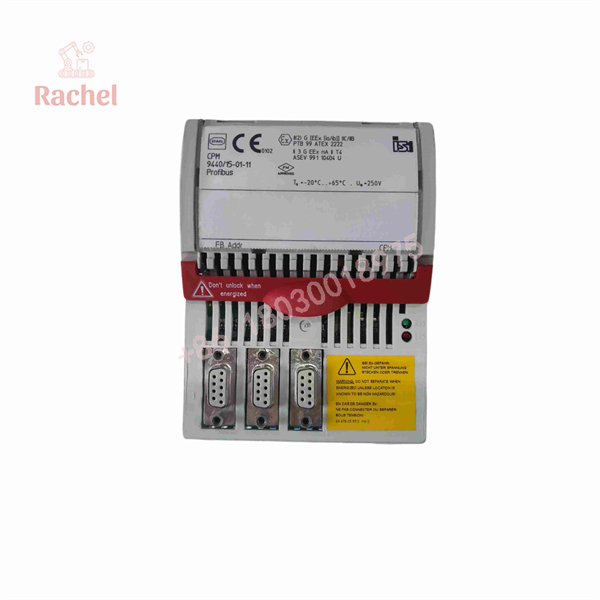

944015-01-11

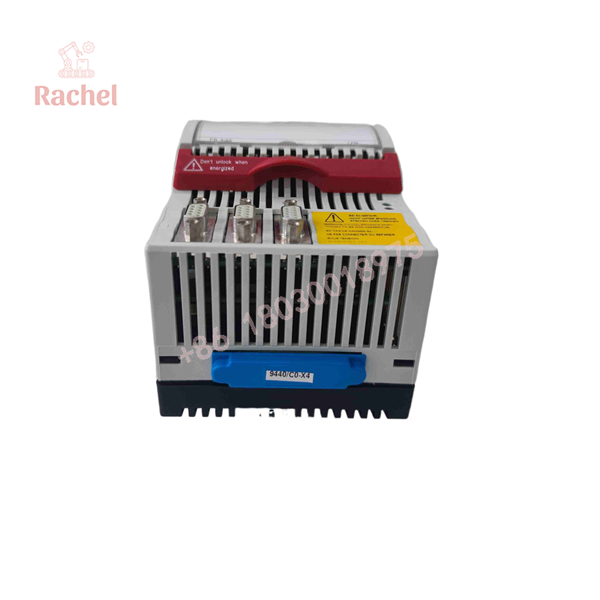

944015-01-11

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — PROFIBUS configuration can bite you.

A physically correct replacement can still leave the station offline if the PROFIBUS address, termination, wiring, or master configuration is wrong. Record the existing network settings before removing the old module.

⚠️ Trap #2 — Do not confuse the CPU/power module with an I/O module.

The 944015-01-11 is a station-level CPU and power module. It is not simply another channel module. Its failure can affect the communication and power behavior of the complete remote station.

PRO TIP: Photograph the entire station before replacement. Capture the CPU module, I/O module order, bus connection, address settings, LED states, and cabinet wiring. That five-minute exercise can eliminate hours of post-replacement troubleshooting.

⚠️ Trap #3 — Hazardous-area approval is not just a sticker on the module.

Do not treat the module’s hazardous-area suitability as permission to install it in any classified location. The equipment certification, enclosure, wiring method, associated apparatus, temperature conditions, and site classification all need to match the installation requirements.

Dynamic FAQ

What is R. STAHL 944015-01-11?

It is the 9440/15-01-11 CPU and power module used within the R. STAHL IS1/IS1+ remote I/O system. It provides station-level processing, power functions, and PROFIBUS DP communication.

Is 944015-01-11 the same part as 9440/15-01-11?

Yes, 944015-01-11 is a commonly used compact formatting of 9440/15-01-11 in industrial spare-parts listings. Always compare the complete manufacturer marking on the actual unit before ordering.

Does it support PROFIBUS DP?

Yes. Available technical information identifies PROFIBUS DP V0/V1 as the fieldbus interface and describes RS-485 connectivity through a 9-pin Sub-D interface.

How many I/O modules can it support?

The referenced technical information specifies up to 16 compatible IS1+ I/O modules, subject to the system’s power and configuration requirements.

Can I use it in any hazardous area?

No blanket assumption should be made. The referenced listing identifies Zone 2 / Division 2 applications, but the complete installation must satisfy the applicable R. STAHL certification and site requirements.

Is a New Surplus unit the same as a new factory-fresh unit?

Not necessarily. New Surplus generally means unused inventory outside the normal current-production supply chain. Before purchase, confirm packaging condition, manufacturing labels, test status, warranty terms, and whether the unit has ever been installed.

What warranty should I expect?

Warranty depends on the supplier and condition category. For a surplus replacement, request the warranty period and return conditions in writing, particularly whether the warranty covers DOA, communication failure, and installation-related compatibility issues.
