R. STAHL 9460/12-08-11 HART Analog Input Module IS1+

Description

Product Introduction

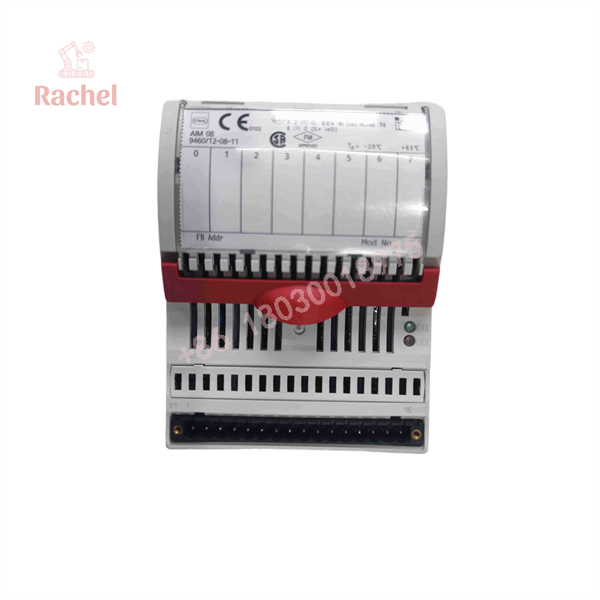

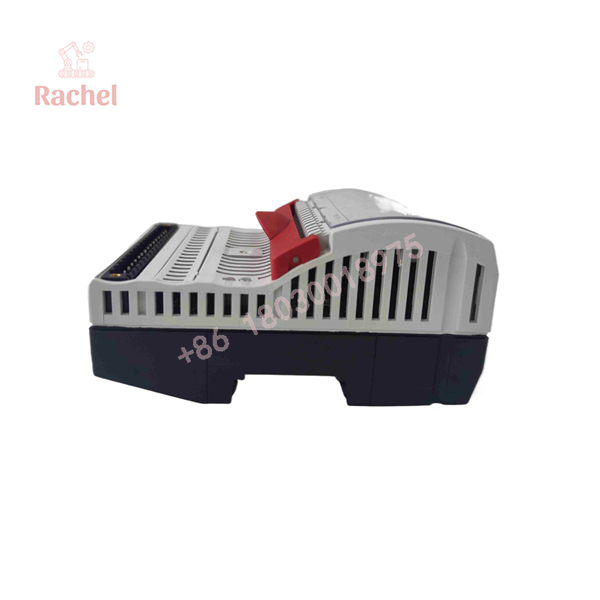

The R. STAHL 9460/12-08-11 is an 8-channel HART analog input module built for the IS1+ Remote I/O system. Engineered specifically for process automation in hazardous locations, this intrinsically safe (Ex i) card interfaces directly with 2-wire or 4-wire transmitters in Zone 1, Zone 21, Class I, Division 1, and Division 2 environments.

Unlike non-isolated I/O cards that require external safety barriers, the 9460/12-08-11 integrates intrinsic safety galvanic isolation into its low-power footprint. It continuously processes 0/4-20 mA process variables while providing bi-directional HART pass-through for instrument diagnostics, HART variable mapping, and asset management systems (AMS).

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 2 AM during a heavy downpour on an offshore production platform. A critical separator vessel’s level transmitter drops off line, locking up the safety instrumented system with a open-loop fault. Opening the Zone 1 remote terminal enclosure reveals that moisture penetration ruined the front-end A/D converter on an older input card. Production is throttled back, flaring is costing thousands per hour, and hot work permits for field testing are impossible to pull until daylight.

In our field experience, keeping a spare R. STAHL 9460/12-08-11 card on hand keeps downtime strictly temporary. Because IS1+ modules are designed for hot-swapping in Zone 1, you can pop the module off the BusRail, click the replacement into place without cutting system power or pulling a hot work permit, and watch all 8 HART loops re-establish communication in seconds.

• Offshore Oil & Gas Platforms – Process vessel pressure and level monitoring – Delivers intrinsically safe transmitter power directly in Zone 1 atmospheres.
• Chemical Processing Plants – Reactor temperature and flow transmitters – Passes full HART diagnostic data back to host Emerson AMS or Yokogawa PRM.
• LNG Import/Export Terminals – Cryogenic storage tank instrumentation – Operates reliably in extreme -40°C outdoor environments without external heating.
• Pharmaceutical Synthesis – Solvent tank farm monitoring – Provides galvanic isolation to eliminate ground loops between field instruments and DCS ground planes.

9460/12-08-11

9460/12-08-11

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual R. STAHL IS1+ racks. Here is how we verify every 9460/12-08-11 module before it leaves our facility:

1. Inbound Physical Inspection: Inspect BusRail rear contacts, side locking levers, terminal socket alignment, and verify genuine R. STAHL serial tags and ATEX/IECEx markings.
2. BusRail Backplane Handshake: Seat the module onto an active IS1+ BusRail alongside a CPM (CPM 9440/9442) to confirm automatic address assignment and LED power-up sequence.
3. Current Loop Precision Injections: Inject precise 4.00 mA, 12.00 mA, and 20.00 mA signals across all 8 channels using a calibrated process meter to verify A/D conversion accuracy.
4. HART Communication Verification: Establish a HART pass-through session on each channel to confirm primary variable (PV), secondary variable (SV), and device status polling.
5. Final Clean & ESD Packaging: Treat rear contacts with precision electronics restorer and seal the unit inside static-shielded packaging with fresh desiccant.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Hot-Swapping is Allowed, But Mind the Terminal Block! While the 9460/12-08-11 supports hot-swapping in Zone 1 under live power, never pull the blue Ex i field terminal blocks with excessive force at an angle. Doing so can shear the retaining pins on the module housing.
• ❗ Verify 2-Wire vs 4-Wire Jumpering: Make sure your field transmitter wiring matches the terminal assignment for active (4-wire) vs passive (2-wire) field devices. Connecting a powered 4-wire transmitter into a terminal configured for 2-wire loop power will blow the internal current-limiting fuse on that channel.
• ⚠️ Check HART Filter Enable Bit: If your host DCS or PLC is reading fluctuating or unstable 4-20 mA values, check if HART communication bursts are interfering with fast analog sampling. Ensure the HART filter configuration bit in the IS1+ parameter set matches your DCS scan rate.
• ❗ Keep the BusRail Clean: Dust or conductive chemical residue inside the BusRail connector slots will trigger intermittent module communication faults. Blow out the BusRail sockets with clean, dry instrument air before snapping the new card in place. Trust me.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the R. STAHL 9460/12-08-11 hot-swappable in Zone 1?

A: Yes. The IS1+ system architecture allows hot-swapping of I/O modules directly in Zone 1 or Class I, Div 1 hazardous areas without needing a hot work permit or turning off system power.

Q: Does this module supply loop power to field transmitters?

A: Yes. Each of the 8 channels contains integrated short-circuit-proof transmitter power capable of supplying > 15 V DC at 20 mA for standard 2-wire field instruments.

Q: Can I use this card with non-HART 4-20 mA devices?

A: Absolutely. Standard 0/4-20 mA analog transmitters work seamlessly. The module simply ignores the HART digital layer if no HART response is detected on the channel.

Q: What warranty comes with this module?

A: We provide a full 12-month replacement warranty from the date of invoice on all New Surplus and Refurbished R. STAHL hardware.

Q: Why buy surplus R. STAHL modules instead of ordering from factory distribution?

A: European factory lead times for explosion-proof Remote I/O components can stretch up to 12 to 18 weeks. Sourcing bench-tested surplus modules gets your hazardous area process back online immediately.
