Reliance DC3N-12D-00-010-AI FlexPak 3000 DC Drive Module

Description

Product Introduction

The Reliance Electric DC3N-12D-00-010-AI is a high-performance digital DC drive module engineered for precise variable speed control of DC motors in continuous industrial process lines. Functioning as a 2-quadrant non-regenerative speed controller, it converts single/three-phase AC line voltage into variable DC armature and field supplies, maintaining tight motor velocity regulation across fluctuating load profiles.

Designed for heavy-duty operational reliability, the drive features integrated analog I/O card expansion (noted by the “AI” suffix) to support complex external velocity feedback loops, tachometer integration, and PLC speed reference signals. Compared to older analog SCR drives, the DC3N series provides crisp digital parameter tuning, onboard fault logging, and robust overload withstand capabilities.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

An extrusion line stops abruptly mid-run because an aging DC armature controller trips on a false over-current alarm due to thermal drift in its gating circuit. The production supervisor is facing ruined polymer stock hardening in the barrel while trying to figure out why the drive won’t reset. In continuous web handling and extrusion plants, keeping legacy Reliance DC drives online is critical to preventing multi-thousand-dollar material scrap events.

• Plastic Extrusion & Injection Molding – Maintains precise screw drive torque and speed regulation across changing resin viscosities.
• Paper & Converting Web Lines – Controls unwind/wind tension rollers using precise analog speed reference signals from dancer arms.
• Wire Drawing Machinery – Drives high-torque capstans where steady acceleration ramps prevent wire breakage.
• Material Handling & Overhead Cranes – Delivers smooth speed control on long-travel hoist mechanisms.

Real-World Field Case Study

During a busy weekend run at a converting facility in Ohio, a master web tension drive faulted out with an unrecoverable power bridge error. The plant’s main line controller relied on the onboard Analog Interface (AI) option card to accept 0-10V dancer feedback for automatic trimming.

Retrofitting the drive system with a modern AC inverter and new AC vector motor would have required two days of mechanical modification, panel rewiring, and PLC program editing. The on-call engineer sourced a factory-tested surplus DC3N-12D-00-010-AI unit. In our field experience, copying over parameter pots and DIP switch positions carefully is what gets you home early. The technician swapped the module chassis, verified field excitation voltage, set the current limit pots to match the motor’s nameplate, and had the line pulling paper again in under three hours.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual DC motor load stands. Every pre-owned or new-surplus Reliance DC3N-12D-00-010-AI drive undergoes a strict multi-point verification protocol before entering our inventory:

1. Inbound Visual & Component Inspection: Check power bridge SCR modules, gate firing boards, capacitors, and terminal blocks for evidence of overheating or trace damage.
2. AC Line Insulation & Diode Bridge Test: Perform high-potential insulation resistance checks and meter test the input bridge rectifiers and SCR gates.
3. Dyno Load & Motor Operation Test: Mount the drive on a test bench connected to a DC motor load to verify smooth speed control, field current regulation, and current limit tracking from 0 to 12 Amps.
4. Analog I/O (AI) Card Verification: Inject 0-10V and 4-20mA speed reference signals into the AI card terminals to confirm linear analog-to-digital signal response.
5. Final Quality Check & Static-Shield Packaging: Clear error logs, apply protective terminal covers, seal the drive in heavy-duty ESD bags, and pack in anti-vibration foam.

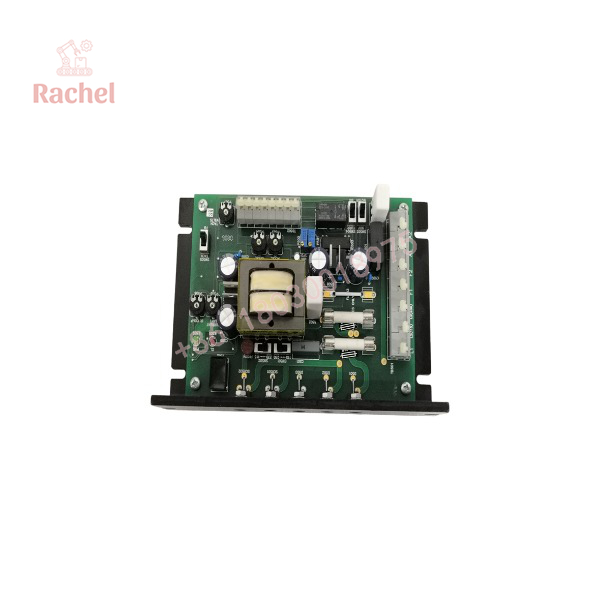

DC3N-12D-00-010-AI

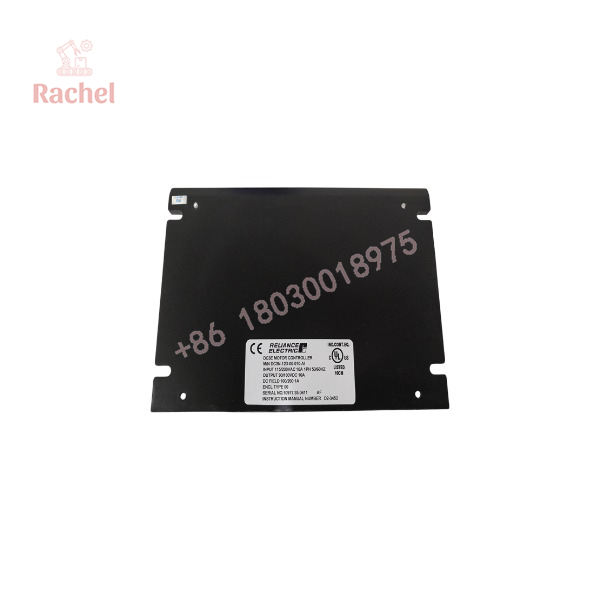

DC3N-12D-00-010-AI

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ Never Disconnect the DC Field Winding Under Power: Opening the field circuit while AC line power is applied to the drive will cause a dangerous motor runaway condition (overspeed) or generate massive inductive voltage spikes that will instantly blow the SCR power bridge in the DC3N module!

❗ Verify Motor Nameplate Current vs. Drive Rating: This unit is strictly rated for 12 Amps continuous armature current. Operating a DC motor with a full-load rating above 12A will lead to frequent thermal tripping or premature failure of the internal SCR bridge. Always verify the motor’s rated FLA before powering up.

⚠️ Check the Analog Interface (AI) Jumper Settings: The “AI” suffix indicates an onboard analog interface card. Take a photo and check all hardware jumpers (e.g., setting inputs for 0-10V vs. 4-20mA current loops) on the option board before applying power. Incorrect jumper settings will cause the drive to ignore external PLC speed commands.

❗ Inspect AC Line Fusing: Standard circuit breakers are too slow to protect sensitive SCR power modules during an armature short circuit. Always ensure the incoming AC line is protected by fast-acting semiconductor fuses (e.g., Bussmann FWP or Cooper Bussmann semiconductor series) rated specifically for drive protection.

Frequently Asked Questions (FAQ)

Q: Is the Reliance DC3N-12D-00-010-AI a regenerative drive? A: No. The DC3N-12D is a 2-quadrant, non-regenerative drive. It can drive a motor in the forward direction and control torque, but it cannot feed braking energy back into the AC power line. If rapid deceleration of high-inertia loads is required, an external dynamic braking resistor network must be used.

Q: Can I run this 230V drive on a 460V AC power supply? A: No. Connecting 460VAC directly to a 230V rated DC3N drive will instantly destroy the internal MOV surge suppressors and SCR power bridge. You must use a step-down isolation transformer to bring the supply line down to 230VAC single or three-phase.

Q: What does the “AI” suffix stand for in this part number? A: The “AI” suffix designates that the module includes the factory-installed Analog Interface expansion board. This option board allows the drive to accept auxiliary analog inputs (such as tachometer feedback, dancer position signals, or isolated 4-20mA PLC speed references).

Q: How do I adjust the maximum speed and current limit on this drive? A: Speed calibration and current limits are configured either through onboard potentiometer trim adjustments (MAX SPD, MIN SPD, CUR LMT, IR COMP) or via the digital keypad interface depending on the specific sub-board revision installed inside the chassis.

Q: What warranty is provided with surplus or refurbished units? A: All factory-sealed surplus and tested refurbished Reliance Electric DC3N-12D-00-010-AI modules come backed by our comprehensive 12-month operational replacement warranty.

Q: Why source surplus Reliance DC drives instead of upgrading to an AC motor system? A: Converting an existing machine from DC to AC requires replacing both the drive controller and the physical motor, often requiring custom mounting plates, new gearboxes, and complete cabinet rewiring. Sourcing a direct drop-in surplus DC drive restores production immediately at a fraction of the capital expense.
