3. Product Introduction & Engineering Value
Every AutoMax system needs a processor doing the actual thinking, and the 7010-series processors — including the 57C435 — were Reliance’s step up from the older 6011 processor, running 3 to 6 times faster while staying software-compatible with the same three AutoMax programming languages.
The 57C435 is a 32-bit, Motorola 68020-based processor at 25 MHz with 512K of parity RAM, 32K of EPROM handling board-level diagnostics and boot code, and 290K available for your actual application. Up to five processor modules can share a single rack, and they don’t need to be identical models — mixing processor types in one rack is supported. On-board battery backup protects program memory through power loss, which matters in a rack with only one processor since no external battery backup is required in that configuration.
4. Technical Specifications
Verified/documented parameters:
- CPU: 32-bit Motorola 68020, 25 MHz
- RAM: 512K parity
- EPROM: 32K, dedicated to board-level diagnostics and boot software
- Application memory: 290K available for user application tasks
- Programming languages: Ladder Logic, Control Block, BASIC (via ReSource AutoMax Programming Executive software, purchased separately)
- Serial ports: Two RS-232 ports — one dedicated programming port, one for auxiliary devices (e.g., printers); RS-232 signals carry 450V isolation to logic common
- Battery backup: On-board, protects memory through power loss; external backup not required for single-processor racks
- Watchdog timer: Local watchdog must be reset by the operating system within a specified interval, or the processor executes a STOP ALL and resets all I/O modules in the local rack
- Rack capacity: Up to five processor modules per rack, mixed types supported
- Status indicators: OK LED, BAT. OK LED, and two 7-segment fault code displays (1st and 2nd)
Not independently verified for the 57C435 specifically: exact ambient temperature range, power dissipation, and physical dimensions — the shared manual documents these per-variant in its technical specifications appendix, and I have confirmed figures for the 57C430A/57C431 entries in that same manual but not yet the 57C435’s own entry. If you have the nameplate or the specific appendix page for 57C435, I’ll complete these accurately.

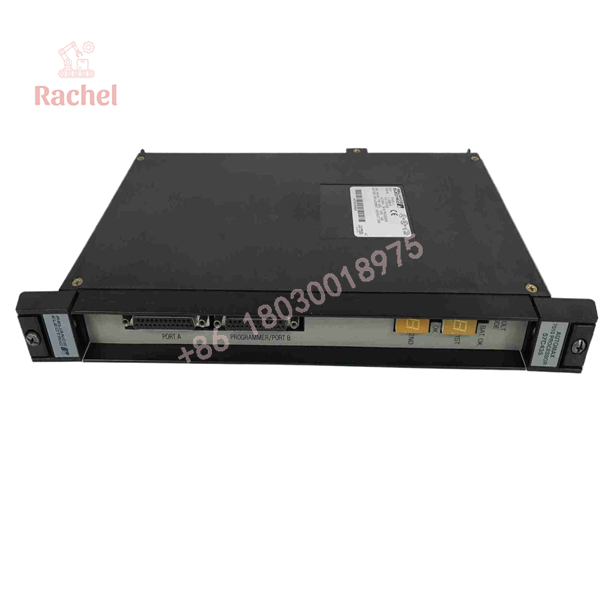

57C435

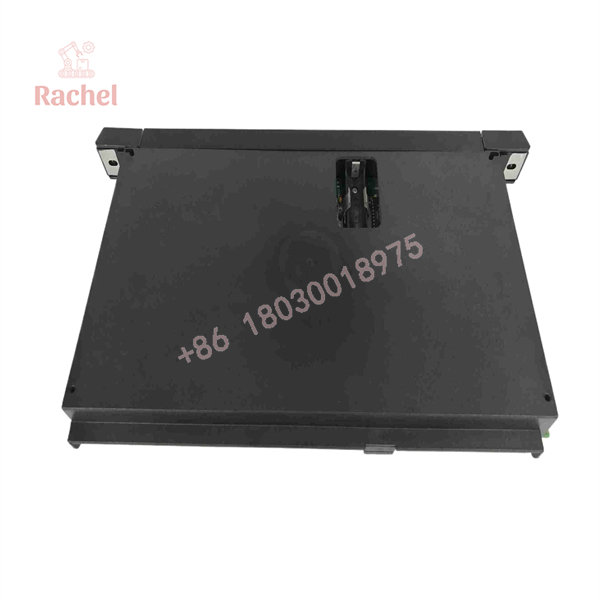

57C435
5. Field Application & The “Trench” Experience
Illustrative scenario — not a specific reported incident:
A common troubleshooting pattern with 7010 processors: the OK LED shows a “00” fault code, which per Reliance’s documentation indicates a CPU overload — not a hardware failure. The fix isn’t replacing the module; it’s redistributing application tasks to a different processor module in the same rack, or lengthening scan times to reduce the load. Techs unfamiliar with this fault code family sometimes swap the processor unnecessarily before checking what the fault code actually means.
Specific application scenarios:
- Multi-processor rack configurations, splitting application tasks across several 7010 processors sharing one Multibus rack for load distribution
- Legacy AutoMax control systems running BASIC or Control Block application logic that predates more modern platforms, where full replacement isn’t in the current budget
- Mixed-processor upgrade paths, pairing a newer/faster 7010 processor alongside older processor types in the same rack during a phased migration
6. Transparency SOP: QA & Testing
Generic verification framework for surplus/refurbished AutoMax processor modules:
- Visual and connector inspection — backplane edge connector condition, RS-232 port condition, on-board battery condition/age
- Power-up diagnostic verification — confirm the module completes its power-up diagnostics with OK LED and BAT. OK LED both illuminated correctly
- Battery backup test — verify the on-board battery holds program memory through a simulated power interruption
- RS-232 communication test — verify the programming port and auxiliary port both establish communication correctly
(General framework — substitute your actual documented QA process where it differs.)
7. The Veteran’s Tech Trap Guide
⚠️ A “00” fault code means CPU overload, not hardware failure. Per Reliance’s own documentation, the fix is redistributing application tasks or lengthening scan times — not automatically condemning the processor.
⚠️ Watchdog timeout causes a full local-rack reset, not just a processor fault. If the operating system doesn’t reset the local watchdog within its specified interval, the processor executes STOP ALL and resets every I/O module in that rack — worth understanding before you’re troubleshooting an unexplained rack-wide reset.
PRO TIP: Check battery condition proactively rather than reactively. On-board battery backup protects your application program through power loss — a dead battery discovered during an actual outage means lost program memory, not just a nuisance alarm.
⚠️ Mixing processor types in one rack is supported, but confirm compatibility notes for DCS5000 M/N 57C407 or 57C430 processors specifically — the manual documents restrictions for these particular combinations, so don’t assume unlimited mix-and-match without checking.
8. Dynamic FAQ
Q: What programming languages does this processor support?
Ladder Logic, Control Block, and BASIC, via ReSource AutoMax Programming Executive software (purchased separately).
Q: How many of these processors can share one rack?
Up to five, and they don’t need to be identical models — mixed processor types in one rack are supported, with some documented restrictions for specific combinations (e.g., with the DCS5000 57C407 or 57C430 processors).
Q: Does a single-processor rack need external battery backup?
No — the on-board battery backup is sufficient for a rack containing a single processor module.
Q: What does a “00” fault code mean?
CPU overload. Reliance’s documentation recommends moving application tasks to another processor in the rack or lengthening scan times, not replacing the module.
Q: What warranty applies to used/refurbished stock?
Varies by seller — some resellers list 1-year or 3-year warranties on repaired/tested units; confirm the specific term at time of purchase.
Q: Is this part still manufactured?
No — discontinued, with current sourcing through surplus, refurbished, and repair channels only.
