Description
Product Introduction
The Rolls-Royce Marine 5880-PC1025 is a purpose-built PCB control module designed specifically for Tenfjord hydraulic steering gear assemblies. Installed across offshore supply vessels, tugs, and commercial cargo ships, this card serves as the critical electronic link between the bridge helm unit and the steering gear’s hydraulic power pack actuation valves.
Unlike generic PLC output cards, the 5880-PC1025 integrates dedicated analog feedback channels and valve driving circuitry directly onto a single board. It processes rudder command signals from the bridge, compares them against real-time rudder feedback, and fires the hydraulic solenoid directional valves to maintain precision steering response under heavy sea loads.
Key Technical Specifications
| Parameter | Value / Technical Detail |
| Manufacturer | Rolls-Royce Marine A/S (Tenfjord) |
| Part / Article Number | 5880-PC1025 |
| Operating Input Voltage | 18 to 36 VDC |
| Primary System | Tenfjord Hydraulic Steering Gear Control |
| Hardware Revision Compatibility | Rev. B, Rev. D, and equivalent variants |
| Interface Connections | Multi-pin edge/terminal rail block connectors |
| Signal Inputs | Analog helm reference & rudder angle indicator feedback |
| Output Drivers | High-current relay / MOSFET outputs for proportional solenoid valves |
| Operating Temperature Range | -15°C to +55°C (Standard Marine Engine Room/Steering Flat Environment) |
| Enclosure Type | Open-frame printed circuit board for rack enclosure mounting |
Application Scenarios & The “Trench” Experience
Picture this: You are 100 nautical miles off the coast, and the bridge alarm screams a “Steering Gear Servo Fault.” The port rudder freezes at a 12-degree angle. You trace the signal down to the steering flat, open the control enclosure, and find the auxiliary power LED on the 5880-PC1025 card completely dead—cooked by an electrical spike from a failing solenoid coil. Tug hire and dry-dock penalties run into tens of thousands of dollars per day if the vessel gets detained at port. Having a drop-in 5880-PC1025 spare on the shelf isn’t a luxury; it’s the difference between continuing a voyage and an emergency sea-tow.
- Commercial Marine Vessels – Tenfjord Steering Systems – Direct drive controller for dual hydraulic pump steering gear plants.
- Offshore Support & OSVs – Dynamic Positioning (DP) System Integration – Translates DP thruster/rudder commands into immediate hydraulic valve shifts.
- Dredgers & Workboats – Heavy Hydraulic Steering Loops – Designed to survive continuous vibration near stern tube assemblies.

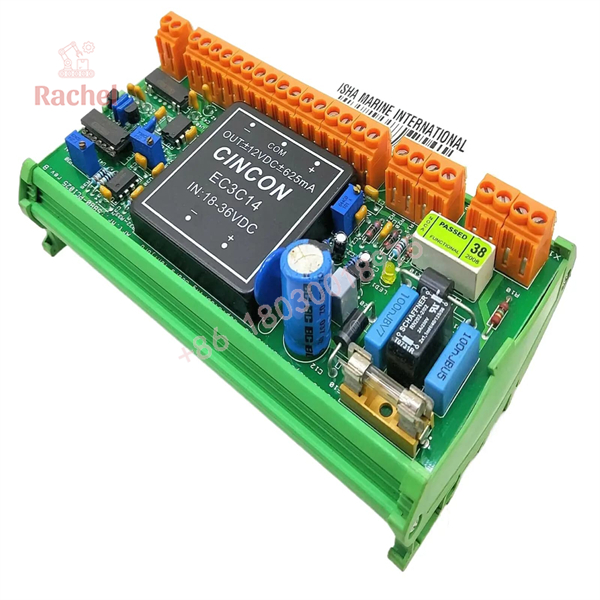

5880-PC1025

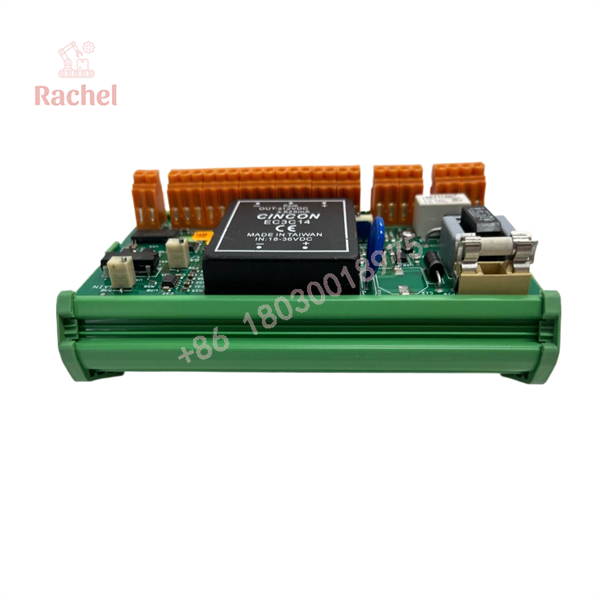

5880-PC1025
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test marine electronics under actual working loads.
- Inbound Visual Inspection: Check board trace integrity, verify terminal connectors for corrosion, and confirm OEM solder joint factory seals.
- Component Integrity & Insulation Test: Megger test high-voltage isolation pathways and verify passive components against factory component values.
- Live Bench Handshake & Load Test: Mount the card to a dedicated test rig with a 24VDC bench supply, simulating 18–36V power swings.
- Solenoid Output Verification: Cycle the driver outputs under simulated load to ensure relay contacts and MOSFET switches toggle cleanly without thermal runaway.
- Static Protection & Conformal Coating Check: Coat or verify conformal isolation against salt air exposure before sealing in anti-static ESD shielding bags.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Check the Board Revision: Rolls-Royce updated these boards across several revisions (Rev B, Rev D, etc.). While most backplanes are backward-compatible, pin assignments for aux status contacts can differ. Take a clear photo of the old card’s trace revision block and terminal block jumpers before unhooking wires.
- ❗ Inspect Solenoid Flyback Diodes First: If your old 5880-PC1025 board blew an output stage, don’t just slot the new one in. Check the flyback suppression diodes on the hydraulic directional valves down in the steering flat. A shorted solenoid coil will fry the new driver transistor instantly upon power-up.
- ⚠️ Mind the 24V Auxiliary Bus Ripple: These boards are rated 18-36VDC, but dirty DC buses with excessive AC ripple from failing battery chargers will cause false feedback trip alarms. Check your DC supply with a multimeter set to AC volts before energizing the board.
Frequently Asked Questions (FAQ for Conversion)
Q: Can I hot-swap the 5880-PC1025 card while the steering gear is powered on?
A: No. Pulling this module live can induce arc-over on the edge connectors and freeze the hydraulic solenoid state. Isolating the 24VDC control breaker prior to removing or installing the PCB is mandatory.
Q: Is the 5880-PC1025 interchangeable with the 5880-PC1026 or 5880-PC1028 cards?
A: Not directly. While they belong to the same era of Rolls-Royce Tenfjord control systems, different board numbers handle distinct feedback loops, alarm channels, or pump starter sequencing. Match the exact part number on the silk-screened label.
Q: Are these units brand-new OEM stock or pulled from decommissioned vessels?
A: We source both New Surplus (unused original spares from vessel spare-parts lockers) and fully reconditioned, bench-tested surplus units. Every card undergoes live bench testing prior to shipment to ensure zero field failures.
Q: What warranty comes with this module?
A: All 5880-PC1025 cards come with a comprehensive 12-month functional warranty. If the card fails under normal operating conditions within 365 days, we replace or repair it immediately.
