Description
Product Introduction

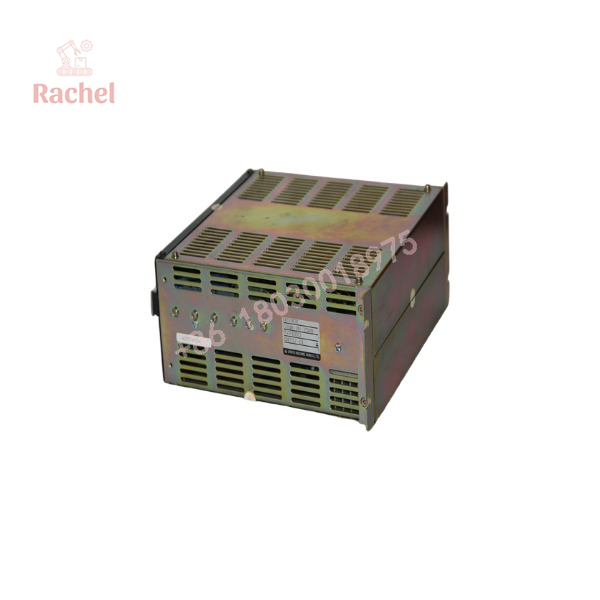

The Sanyo Denki STNM-DR-250B(U) is a compact, high-efficiency 2-phase stepping motor driver designed for high-precision motion control applications. Built primarily for small-to-mid-size automation cells, semiconductor handling, and packaging machinery, this drive module translates pulse and direction signals from high-level PLC or motion controllers into accurate bipolar current output for 2-phase stepper motors.
In low-voltage industrial motion systems, current control stability makes or breaks positioning accuracy. Cheap microstepping drives often suffer from excessive motor heating, torque drop-off at medium speeds, and mechanical resonance issues. The STNM-DR-250B(U) solves this by incorporating Sanyo Denki’s custom current-chopping topology, delivering smooth low-speed torque without burning out motor windings during continuous duty cycles.
Key Technical Specifications
| Parameter | Value |
| Model Number | STNM-DR-250B(U) / STNM-DR-250B |
| Manufacturer | Sanyo Denki |
| Motor Type | 2-Phase Stepping Motors |
| Main Input Voltage | 24 VDC (±10%) |
| Max Output Current | 2.5 A / phase |
| Control Signal Interface | Pulse & Direction / Dual Pulse (Optocoupler Isolated) |
| Current Reduction | Automatic Idle Current Reduction (Standby Mode) |
| Microstepping Resolution | Selectable DIP Switch Settings (Full / Half / Microstep) |
| Protection Features | Overcurrent, Overvoltage, Thermal Shutdown |
| Operating Temperature | 0°C to +50°C |
Application Scenarios & The “Trench” Experience
Picture this: It’s 04:00 AM on a automated PCB assembly line, and the component pick-and-place gantry halts mid-board with a Motion Axis 2 Stall error. The machine operator tries to home the axis, but the stepper motor just chatters, vibrates violently, and trips the 24V supply. The line is down, costing $5,000 an hour. Troubleshooting shows the internal MOSFET switching bank on the original Sanyo driver failed open from heat soak. Dropping in a pre-tested STNM-DR-250B(U) driver, setting the DIP switches to match the motor’s 2.5A phase rating, and cycling logic power restores full XY indexing within 20 minutes.
- Semiconductor & Wafer Handling: Powers micro-positioning leadscrews and transfer arms where low vibration is required to avoid wafer damage.
- Automated Packaging & Labeling: Controls high-speed indexing rollers feeding pressure-sensitive labels onto bottles or cartons.
- Medical Diagnostic Analyzers: Drives liquid-handling pipetting stages demanding reliable micro-step positioning without dropping steps.
- Light CNC & Engraving Equipment: Provides precise pulse tracking for desktop routing and laser marker head movement.
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual 2-phase Sanyo stepper motor test setups.
- Inbound Physical Inspection: Mechanical check of terminal blocks, DIP switches, heat-sink fins, and OEM silkscreening to catch worn out or counterfeit drives.
- DC Bus & Supply Rail Verification: Bench-powering the 24VDC logic and power stages to confirm internal regulation without overcurrent draw on startup.
- Pulse/Direction Signal Handshake Test: Injecting 5V/24V pulse trains up to 100 kHz to verify optocoupler isolation integrity and pulse decoding.
- Dynamometer / Loaded Motor Run Test: Wiring the driver to a 2-phase stepper motor under mechanical load to verify torque stability, phase balance, and automatic standby current drop.
- Final QC & Anti-Static Packaging: The unit is cleaned, enclosed in an anti-static ESD bag, and protected in thick foam packaging prior to dispatch.
STNM-DR-250B(U)
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Do NOT adjust DIP switches while 24V power is applied!
Flipping microstep or peak current selection switches while the drive is energized can corrupt the internal logic state or cause an instantaneous current spike that blows out the driver’s output stage. Always kill logic and main power first.
- ❗ Double-check the part number transposition (Zero vs. Letter “O”).
When searching or ordering, verify whether your bill of materials states
STNM-DR-250B(U)with a zero orSTNM-DR-25OBwith an “O”. Sanyo’s true OEM designation uses the numeric250Brepresenting the 2.5A rating. Ordering under a mistyped string can lead to stock delays. - ⚠️ Match motor phase current carefully.
Setting the driver’s current trim potentiometer or DIP switch above your motor’s rated phase current will cause rapid motor overheating within 15 minutes of continuous run time. Verify your stepper motor’s datasheet before enabling the drive output.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the STNM-DR-250B(U) a direct drop-in replacement for the STNM-DR-250B?
A: Yes. The (U) suffix typically denotes minor regional safety compliance certifications or updated packaging standards. Electrically and mechanically, the two units are fully interchangeable.
Q: What signal voltage does the Pulse/Direction input require?
A: The input optocouplers generally accept standard 5VDC differential/single-ended signals. If using 24VDC PLC outputs, inline current-limiting resistors (typically 1.5kΩ to 2.2kΩ) may be required depending on the specific terminal board revision.
Q: Does this drive support closed-loop encoder feedback?
A: No. The STNM-DR-250B(U) is an open-loop 2-phase stepper drive. If your system uses step-loss detection, the encoder lines feed back to your PLC/Motion Controller directly rather than through this drive unit.
Q: Is this unit new or refurbished?
A: We supply this component in New Surplus / Factory Sealed or Fully Bench-Tested Refurbished condition. Both options undergo our full testing SOP before shipment.
Q: What warranty coverage comes with this Sanyo drive?
A: Every STNM-DR-250B(U) drive includes a 12-month full replacement warranty. If the unit experiences hardware failure under standard operating conditions within one year, we will issue a replacement or full refund.
