Description
Core Product Summary
The Schenck FNT-0050 (part number F201742.01) is a dedicated system power supply module engineered for the Schenck Multicont industrial measurement and weighing system architecture. Designed for process control environments, this module supplies steady internal system power to supporting Multicont processing units, load cell signal converters, and associated control rack electronics.
This module supports dual primary input configurations for 115 V AC and 230 V AC line power with an allowable voltage variance of +10% to -20% across standard 47 Hz to 53 Hz line frequencies. Housed in a heavy-duty industrial chassis with front-panel switching controls and rear bus connection ports, the FNT-0050 delivers stable power conversion for dynamic weighing, gravimetric feeding, and continuous process automation systems.
Key Technical Specifications
| Parameter | Specification |
| Product Type | Industrial Power Supply Module |
| System Platform | Schenck Multicont Series |
| Part Number / MPN | FNT-0050 (F201742.01) |
| Nominal Input Voltage | 115 V AC / 230 V AC (Selectable/Configurable) |
| Input Voltage Tolerance | +10% / -20% |
| Line Frequency | 47 Hz to 53 Hz |
| System Compatibility | Multicont measurement and weighing racks |
| Enclosure / Form Factor | Rack-mountable plug-in module |
Detailed Product Overview
The Schenck FNT-0050 system power supply module plays an essential operational role in powering Schenck Multicont measuring, weighing, and feeding control installations. Serving as the central AC-to-DC conversion stage within the Multicont rack assembly, the unit conditions incoming AC line power to supply regulated voltages across the backplane for internal processing cards, display interfaces, and peripheral I/O channels.
In industrial process environments—such as bulk solids handling, continuous gravimetric feeding, loss-in-weight dosing, and automated belt weighing—power stability is critical for preserving signal integrity from load cells and transducers. The FNT-0050 is designed with industrial-grade filtering to mitigate line disturbances, ensuring consistent operational voltage across the connected control platform.
System integrators and maintenance teams must ensure proper primary voltage tapping (115 V AC or 230 V AC) prior to installation and commission. The physical layout incorporates front-panel control access alongside rugged multi-pin rear connectors for direct interfacing with the Multicont system backplane.
Dimensions, Mounting & Connection Notes
- Mounting Method: Slide-in rack module designed for insertion into standard Schenck Multicont system sub-racks.
- Connection Type: Integrated heavy-duty multi-pin rear edge/socket connector for backplane interfacing.
- Control Features: Front-panel power switch and operational status indicator layout.
- Approximate Module Weight: 6.0 kg (13.2 lbs).

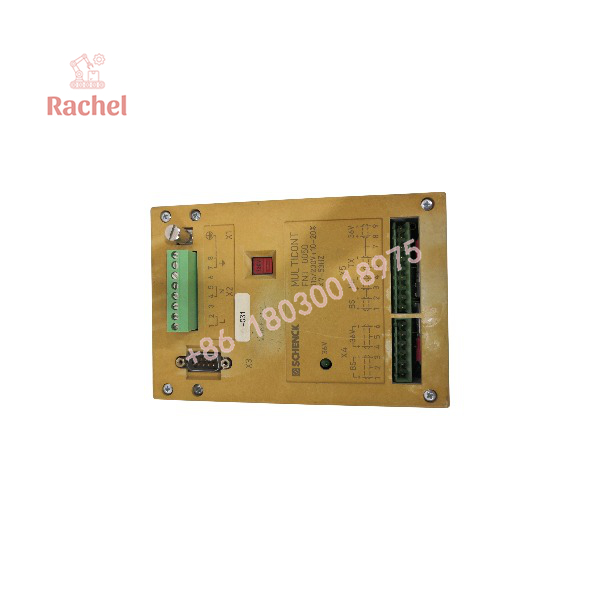

FNT-0050

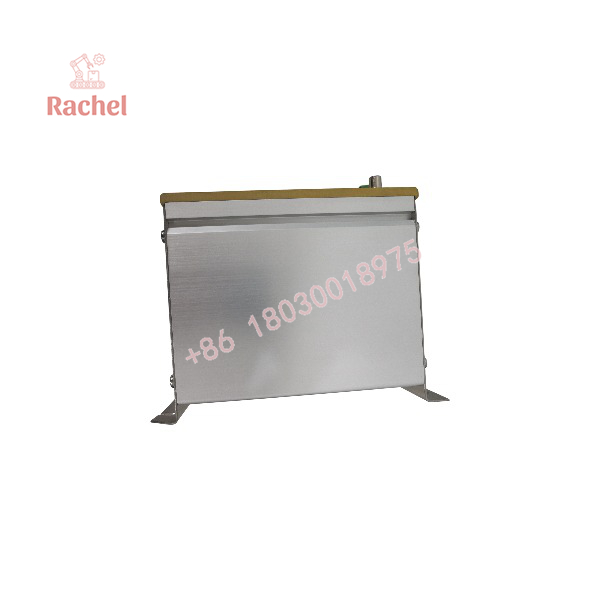

FNT-0050
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| System Controller Family | Schenck Multicont Series | Integrates directly into Multicont rack architecture. |
| Input Power Source | 115 V AC or 230 V AC (47–53 Hz) | Requires proper AC line configuration within voltage tolerance (+10%/-20%). |
| Installation Form Factor | Multicont system chassis/rack slot | Connects via dedicated rear rack connectors to the internal system backplane. |
FAQ
What is the primary function of the Schenck FNT-0050?
The Schenck FNT-0050 (F201742.01) is a system power supply module that provides regulated power to Schenck Multicont weighing and process control systems.
What input voltage options does the FNT-0050 support?
It supports nominal input line voltages of 115 V AC or 230 V AC with an operational frequency range of 47 Hz to 53 Hz.
What is the allowable input voltage tolerance for this module?
The module tolerates primary voltage fluctuations of +10% to -20% of nominal rating.
Which product platform is the FNT-0050 designed for?
It is designed specifically for integration into Schenck Multicont series control racks and enclosures.
How does the FNT-0050 connect within a control cabinet?
It mounts directly into a dedicated slot within a Multicont chassis, connecting to the internal system bus via a heavy-duty rear connector interface.
