Description
Product Introduction
The Schneider Electric Modicon 140ARI03010 is an 8-channel analog input module built specifically for temperature measurement within the Modicon Quantum PLC platform. Designed to interface directly with Resistance Temperature Detectors (RTDs), it eliminates the need for external signal transmitters by reading raw sensor resistance directly at the control cabinet.
Supporting standard Platinum (Pt) and Nickel (Ni) RTDs, the module offers high-precision 16-bit analog-to-digital conversion across 2-wire, 3-wire, or 4-wire measurement circuits. Onboard lead-resistance compensation ensures accurate temperature data even across extended field wiring runs in large industrial facilities.
Key Technical Specifications
| Parameter | Specification Details |
| Module Type | Analog Input Module (RTD Temperature / Resistance) |
| Part Number | 140ARI03010 |
| Manufacturer | Schneider Electric / Modicon |
| Platform Compatibility | Modicon Quantum Automation Series |
| Number of Inputs | 8 Individually Configurable Channels |
| Supported RTD Types | Pt100, Pt200, Pt500, Pt1000, Ni100, Ni200, Ni500, Ni1000 |
| Wiring Configurations | 2-Wire, 3-Wire, or 4-Wire RTD connections |
| A/D Resolution | 16-bit |
| Update Time | ~400 ms across all 8 channels |
| Isolation | 1780V DC channel-to-bus / 500V DC channel-to-channel |
| Bus Current Requirement | 250 mA max (from backplane) |
| Terminal Block | 140XTS00200 (40-pin) |
Application Scenarios & Field Experience
The 140ARI03010 is widely deployed in continuous process environments where high-accuracy thermal monitoring protects heavy equipment and ensures product consistency.
- Power Generation & Turbine Monitoring: Reading winding and bearing temperatures (Pt100) inside generators and feed pumps.
- Chemical & Refining Reactor Vessels: Multi-point temperature profiling across process vessels where high-precision thermal control is safety-critical.
- HVAC & Industrial Boilers: Monitoring chilled/hot water loop supply and return headers using 3-wire Pt1000 sensors.
- Pulp & Paper Processing: Tracking digester and dryer roll surface temperatures under continuous vibration and electrical noise.
Field Case Study: An automotive casting plant experienced intermittent temperature spikes and false alarm trips on an aluminum holding furnace. The issue was isolated to an aging RTD module suffering from thermal drift on its analog reference circuit. Replacing the card with a bench-tested surplus 140ARI03010 restored tight ±0.5°C tracking, avoiding a costly furnace shutdown.
Quality Assurance & Testing Procedure
Every surplus 140ARI03010 module undergoes a complete testing protocol before dispatch:
- Visual & Structural Audit: Inspection of PCB traces, backplane connector pins, housing latches, and terminal alignment.
- Backplane Handshake: Seating in a live Modicon Quantum rack running Unity Pro / EcoStruxure Control Expert to confirm bus communication and LED status health.
- Multi-Channel Calibration Check: Connecting precision decade resistance boxes across all 8 channels to verify 2-wire, 3-wire, and 4-wire measurement accuracy across Pt100 and Pt1000 resistance ranges.
- Burn-In & Isolation Verification: Continuous operational test under thermal load to detect micro-cracks or heat-induced signal drift.
- ESD-Safe Packaging: Cleaned, anti-static sealed, and custom-cradled for safe transit.

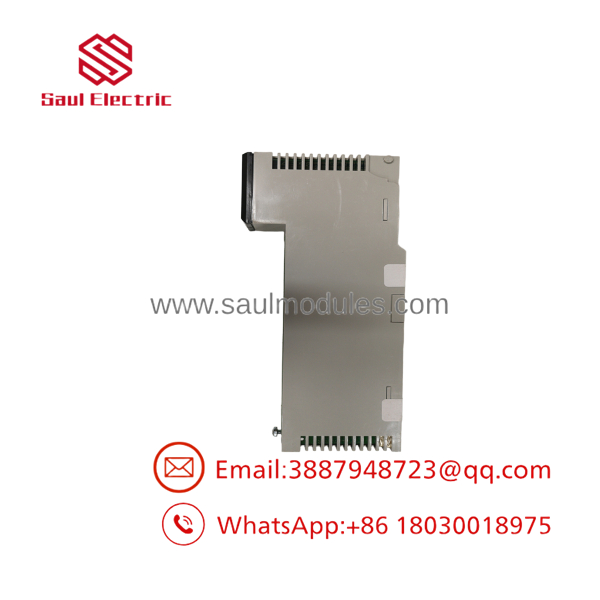

140ARI03010

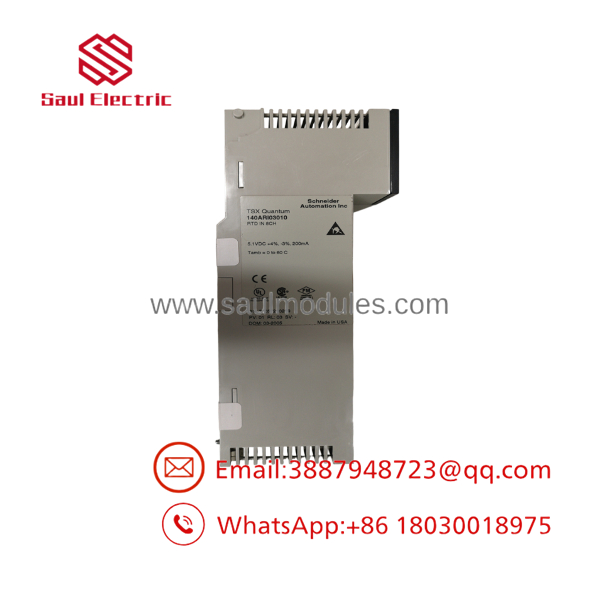

140ARI03010
Technical Field Tips & Traps
- ⚠️ Match Wire Configuration in Software: A classic mistake during field retrofits is leaving software configured for 4-wire when using 3-wire sensors. This causes permanent high-scale error codes or broken-wire diagnostic faults on the channel.
- ❗ Jumper Unused Channels: Unused channels should be disabled in configuration or shorted across terminals according to Schneider wiring guidelines to prevent floating channel noise from corrupting adjacent channels.
- ⚠️ Terminal Block Alignment: Ensure the 40-pin removable terminal block (140XTS00200) is fully seated and latched. Loose terminal block connections introduce artificial contact resistance, throwing off RTD temperature readings by several degrees.
- ❗ Mind the Ground Loop: When using non-isolated 2-wire or 3-wire RTDs, ensure cable shielding is grounded at one end only (the PLC panel side) to prevent ground loops from injecting 60Hz hum into the 16-bit A/D converter.
Frequently Asked Questions
Q: Does the 140ARI03010 require external loop power for RTD sensors?
A: No. The module supplies its own precise internal excitation current to drive the RTD sensors and measure the resulting voltage drop across the elements.
Q: Can I mix different RTD types (e.g., Pt100 and Pt1000) on the same module?
A: Yes. Each of the 8 channels can be individually configured in software (Unity Pro / EcoStruxure) for different sensor types and wiring methods.
Q: What terminal block part number is required for this module?
A: It utilizes standard Modicon Quantum 40-pin removable terminal blocks, such as the 140XTS00200.
Q: Is this module hot-swappable in a running Quantum rack?
A: Quantum hardware supports “hot swapping” (RIUP – Removal and Insertion Under Power), but care should be taken to put connected PID loops in manual mode before removing the card to prevent unintended control system responses.
