Description
Product Introduction & Engineering Value
The 140CPU31110 is a legacy Modicon Quantum CPU intended for control applications running under Schneider’s Unity programming environment. Its 66 MHz processor, 548 KB internal RAM, integrated Modbus Plus interface, and two Modbus serial ports make it particularly relevant to older process-control installations where the existing Quantum architecture is still operational.
This is now a lifecycle-critical spare rather than a current-generation controller. Schneider’s U.S. product page records the 140CPU31110 as discontinued and identifies the Modicon M580 BMEP581020 as the recommended replacement. Importantly, that replacement represents a migration path, not a simple plug-in CPU swap.
Technical Specifications
| Specification | 140CPU31110 |
|---|---|
| Product Family | Modicon Quantum |
| Processor Type | Unity standard CPU |
| Clock Frequency | 66 MHz |
| Internal RAM | 548 KB |
| Integrated Modbus Plus | 1 port |
| Integrated Modbus | 2 ports |
| Serial Interface | RS-232 / RS-485 |
| Local Rack Support | 2 local racks |
| Maximum Local Slots | 27 slots |
| Remote I/O | Up to 31 S908 remote I/O racks |
| Distributed I/O | Up to 63 distributed stations |
| Modbus Plus Networks | Up to 3 |
| Bus Current Requirement | 1.8 A |
| Backup Battery | 990XCP98000 |
| Programming Environment | Unity Pro / compatible Unity software |
| CPU Weight | Approx. 0.770 kg |
The Quantum catalog specifies 548 KB of internal RAM, 66 MHz clock speed, 1.8 A bus-current requirement, and the integrated communications interfaces. Schneider documentation also identifies 990XCP98000 as the internal RAM backup battery reference.
Communication Architecture

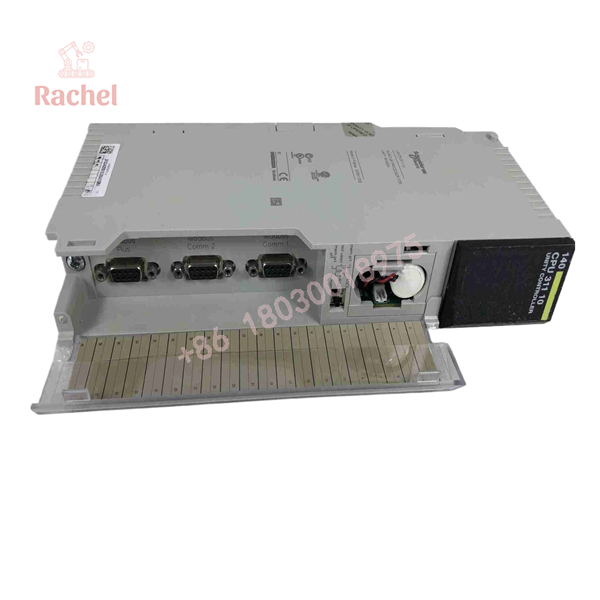

The front panel provides:
- 2 × 9-pin female SUB-D connectors for the Modbus bus
- 1 × 9-pin female SUB-D connector for Modbus Plus
- Status LEDs for READY, RUN, Modbus, Modbus Plus, memory protection, battery condition, and communication error
- Backup-battery compartment
- Memory-protection/communication configuration switches
These physical interfaces are particularly important when evaluating a used or refurbished CPU because connector condition and front-panel status indicators can reveal problems that a simple power-on test may miss.

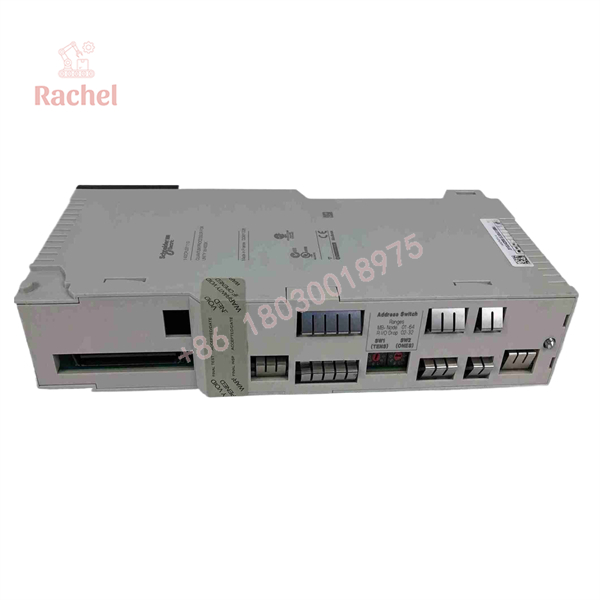

140CPU31110
140CPU31110
Field Application & “Trench” Experience
Field Scenario: Legacy Process PLC CPU Failure
A chemical-processing facility has several Quantum racks controlling distributed valves, analog process instruments, and motor permissives. The installed controller uses a 140CPU31110 with Modbus Plus communication to the plant’s existing remote I/O architecture.
When the CPU fails, replacing it with a modern controller immediately is not necessarily the fastest way to restore production. The existing application program, rack configuration, communication topology, field wiring, and legacy I/O all need to be considered.
For a critical spare, the practical recovery sequence is:
- Confirm the failed CPU rather than assuming a rack-power problem.
- Check READY, RUN, BAT LOW, and ERROR A indicators.
- Verify the backup battery condition.
- Confirm Modbus and Modbus Plus communications.
- Install a known-good 140CPU31110.
- Restore the validated application and configuration.
- Verify I/O scanning and process interlocks.
- Perform a controlled restart and production validation.
Niche Applications
- Legacy Modbus Plus process-control systems where replacing the entire PLC architecture would require significant engineering downtime.
- S908 remote-I/O installations supporting large geographically distributed control panels.
- Water and wastewater control systems with long-lived Quantum PLC infrastructure.
- Continuous-process plants where a tested CPU spare can substantially reduce mean time to repair.
QA & Testing SOP
For a New Surplus or Refurbished 140CPU31110, a meaningful acceptance test should go beyond checking whether the LEDs illuminate.
Recommended inspection sequence
1. Part-number verification
Confirm:
140CPU31110- Manufacturer identification
- Hardware revision
- Serial/traceability information
Do not confuse the standard CPU with 140CPU31110C, the conformal-coated version.
2. Physical inspection
Check:
- SUB-D connectors
- Front-panel switches
- Battery compartment
- PCB condition
- Connector pins
- Housing and mounting hardware
- Evidence of corrosion or heat damage
3. Power-up diagnostics
A compatible Quantum rack should be used where possible. Verify that the CPU progresses through its startup diagnostics and reaches the expected READY/RUN condition.
4. Communication test
Test both:
- Modbus serial communication
- Modbus Plus communication
5. Application test
Where the customer’s application is available, load a controlled test project and verify processor execution, I/O scanning, communications, and fault handling.
Procurement recommendation: For a critical spare, request actual-unit photographs and a test report. A seller stating “tested” without identifying what was tested provides limited assurance.
⚠️ Veteran’s Tech Trap Guide
⚠️ Trap #1 — Confusing 140CPU31110 with 140CPU31110C
The C suffix is significant. Schneider documentation identifies conformal-coated versions separately. A standard CPU should not automatically be treated as equivalent to the coated variant for harsh-environment applications.
⚠️ Trap #2 — Assuming any Quantum CPU can replace it
Quantum CPUs have substantially different memory, processing, communication, and architecture characteristics. The 140CPU31110 has 548 KB RAM and 66 MHz processing, while higher Quantum CPUs such as the 140CPU43412U have different capabilities.
⚠️ Trap #3 — Treating M580 migration as a CPU swap
Schneider recommends BMEP581020 as the replacement for 140CPU31110. That does not make it a mechanical or software drop-in replacement. A migration requires evaluation of the application program, I/O architecture, communications, rack hardware, and field interfaces.
PRO TIP — Check the battery before putting a spare into service
The CPU uses a backup battery for internal RAM retention. Schneider identifies 990XCP98000 as the battery reference. A CPU that has been sitting in warehouse inventory for years should therefore receive battery verification before being placed into a critical rack.
Lifecycle & Spare-Inventory Strategy
The lifecycle situation deserves special attention.
Schneider’s U.S. page lists the 140CPU31110 as discontinued on December 31, 2018 and gives an end-of-service date of May 7, 2026. Other Schneider regional sites show different lifecycle dates, including December 31, 2026, so the applicable regional service status should be verified for the plant location.
As of September 2026, this means plants still dependent on this processor should treat it as a legacy-stock management issue.
Recommended inventory actions:
- Maintain tested CPUs for every high-criticality Quantum installation.
- Separate 140CPU31110 and 140CPU31110C inventory.
- Record CPU hardware revision and firmware information.
- Keep compatible backup batteries available.
- Preserve validated application backups.
- Maintain at least one known-good CPU for critical production lines.
- Identify Modbus Plus and S908 dependencies before planning migration.
- Establish a migration budget toward M580 rather than waiting for the final CPU failure.
Schneider currently identifies Modicon M580 BMEP581020 as the recommended replacement.
Dynamic FAQ
What is the Schneider 140CPU31110?
It is a Unity processor for the Modicon Quantum automation platform, with a 66 MHz processor, 548 KB internal RAM, integrated Modbus Plus, and two Modbus serial interfaces.
What programming software is associated with the 140CPU31110?
The processor belongs to Schneider’s Unity Pro generation of Quantum processors. Existing projects should be checked for their Unity software version and CPU firmware compatibility before attempting restoration.
What replaces the 140CPU31110?
Schneider currently identifies BMEP581020, a Modicon M580 processor, as the recommended replacement. The migration should be engineered as a control-system migration rather than treated as a direct CPU substitution.
Does 140CPU31110 have Modbus Plus?
Yes. The CPU has one integrated Modbus Plus connection and two Modbus serial ports.
Is 140CPU31110 still a good spare to buy?
For a plant that still operates compatible Quantum equipment, yes, a tested spare can have significant maintenance value. However, it should be purchased as legacy inventory with clear condition, test status, part-number verification, and warranty terms.
Is New Surplus 140CPU31110 authentic?
New Surplus should mean an unused original Schneider/Modicon unit, not simply a refurbished CPU described as “new.” Verify the actual nameplate, part number, hardware information, packaging, and traceability. For a critical application, request functional test evidence.
What warranty should apply to a refurbished unit?
There is no universal refurbished warranty attached to the 140CPU31110 itself. Warranty duration and coverage depend on the supplier. For critical spare inventory, obtain the warranty terms in writing before purchase.
