Schneider 140CRA93200 Remote I/O Adapter Quantum

Description

Product Introduction & Engineering Value

The 140CRA93200 belongs to the older Quantum remote I/O architecture, where reliable communication between a central processor and remote I/O drops was handled through the S908 network. This makes the module particularly important in long-running Quantum installations that have not yet migrated their remote I/O infrastructure to Ethernet.

For replacement work, the first check should be architectural. Do not substitute a 140CRA21110 simply because both modules are described as remote I/O adapters. The 140CRA21110 belongs to the Ethernet remote I/O family, while the 140CRA93200 is associated with the S908 architecture. The network hardware and controller configuration are fundamentally different.

Technical Specifications

Schneider Electric identifies the 140CRA93200 as a remote I/O adapter for Modicon Quantum with two interfaces. The product belongs to the legacy Quantum remote I/O architecture rather than the Ethernet RIO family.

Field Application & the “Trench” Experience

A production plant has several remote Quantum I/O drops spread across the facility. The central controller is healthy, but one remote rack stops updating. The field instruments are still powered. The I/O modules themselves look normal.

The maintenance technician checks the network first.

That is the right place to start with a 140CRA93200. A failure can originate in the adapter, the cabling, network termination, the remote rack, or the controller-side remote I/O configuration. Replacing the adapter without checking the communication path can lead to unnecessary hardware changes.

A practical troubleshooting sequence is to document the active/standby status, inspect the connections, check diagnostic indicators, verify the remote rack power supply, and then substitute a known-good adapter if the network evidence points toward the module.

Specific applications include:

• Legacy water-treatment remote I/O stations distributed across pumping and filtration areas.
• Power-generation auxiliary systems using Quantum remote I/O drops.
• Large process plants where field I/O remains distributed over an established network.
• Legacy machine-control cells where migration to Ethernet has not yet been completed.

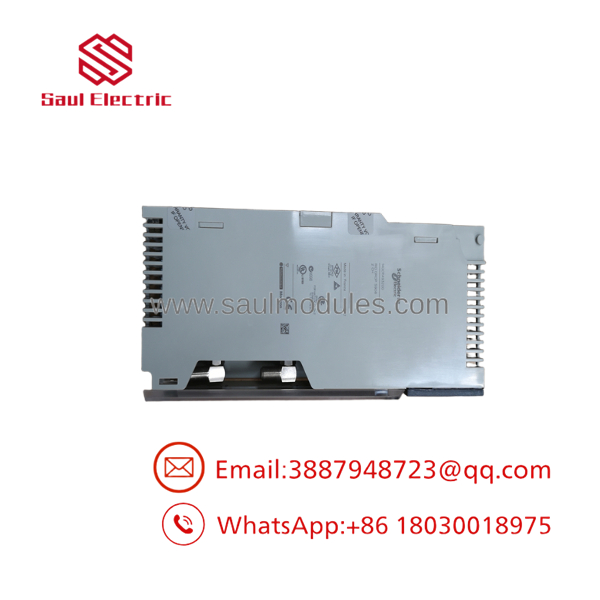

140CRA93200

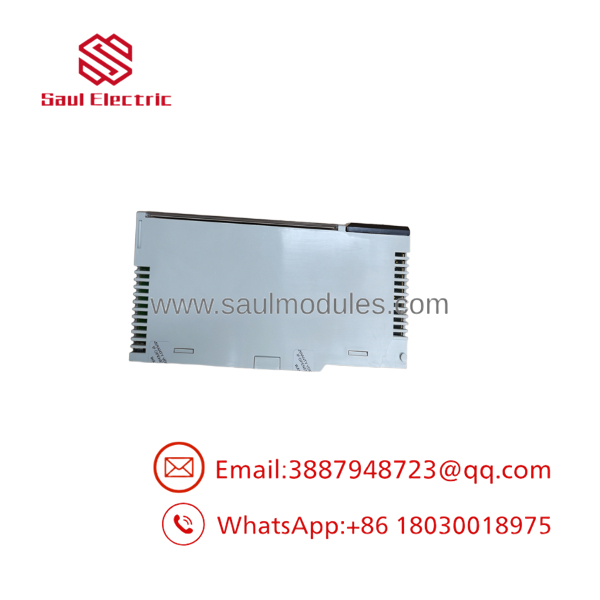

140CRA93200

Transparency SOP: QA & Testing

For New Surplus or refurbished 140CRA93200 stock, the QA process should focus heavily on the communication interface.

Inspection checklist:

• Verify the exact 140CRA93200 catalog number.
• Inspect the module housing and Quantum backplane connector.
• Check both network interfaces for physical damage.
• Inspect terminal/cable interfaces and locking hardware.
• Power the module in a compatible Quantum test rack.
• Verify startup diagnostics and module status indicators.
• Connect the adapter to a suitable test network where available.
• Confirm remote I/O communication with a compatible Quantum controller.
• Verify the expected behavior of both interfaces in the applicable architecture.
• Record the final test condition and stock classification.

A visual inspection alone is not enough. The communication interfaces are the core function of this module.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Don’t confuse with Ethernet RIO.

This is the biggest purchasing mistake. The 140CRA93200 is an remote I/O adapter, while the 140CRA21110 is an Ethernet remote I/O adapter. The two should not be treated as interchangeable based on their general product descriptions. (se.com)

⚠️ Trap #2 — Check the network cabling before condemning the adapter.

An communication failure can originate outside the CRA module. Inspect the network cable, connectors, termination, remote rack power, and controller-side equipment before replacing a known-good adapter.

PRO TIP: Photograph the existing connections before removal. On legacy installations, cable identification is often less reliable than the technician’s assumption.

⚠️ Trap #3 — Hot Standby changes the troubleshooting sequence.

If the Quantum system uses controller redundancy, determine whether the remote I/O fault is actually isolated to one communication path or whether it affects the redundant architecture. Do not force a controller switchover merely to test a suspect CRA module on a live process.

⚠️ Trap #4 — Don’t assume an Ethernet migration is a simple module swap.

If the plant is planning to replace with Ethernet RIO, that is an architecture change. It can affect controller hardware, remote adapters, network infrastructure, configuration, and commissioning procedures.

Dynamic FAQ

Q: What is the Schneider 140CRA93200?
A: It is a Modicon Quantum remote I/O adapter designed for the remote I/O architecture. Schneider identifies it as a two–port module.

Q: Is the 140CRA93200 an Ethernet remote I/O adapter?
A: No. It is associated with the remote I/O network. Ethernet remote I/O uses different Quantum hardware, such as the 140CRA21110.

Q: Can I replace a 140CRA93200 with a 140CRA21110?
A: Not as a simple one-for-one replacement. They belong to different remote I/O architectures. Moving from to Ethernet requires an engineering review of the controller, remote adapters, network, and application configuration.

Q: What should I check when a 140CRA93200 remote rack goes offline?
A: Check the module diagnostics, remote rack power, both communication paths, cabling and termination, controller-side remote I/O configuration, and the status of any redundant architecture before replacing hardware.

Q: How should New Surplus 140CRA93200 inventory be verified?
A: Confirm the exact catalog number from the physical label, inspect the interfaces and backplane connector, and ask for evidence of functional testing on a compatible Quantum/ setup. Also obtain a written statement of the stock condition and warranty.

Q: Why is an exact spare valuable for a 140CRA93200?
A: Because it allows maintenance teams to restore an existing -based Quantum architecture without immediately introducing an Ethernet migration project during a production-critical failure. For long-lived control systems, that can significantly reduce the scope of an emergency repair.
