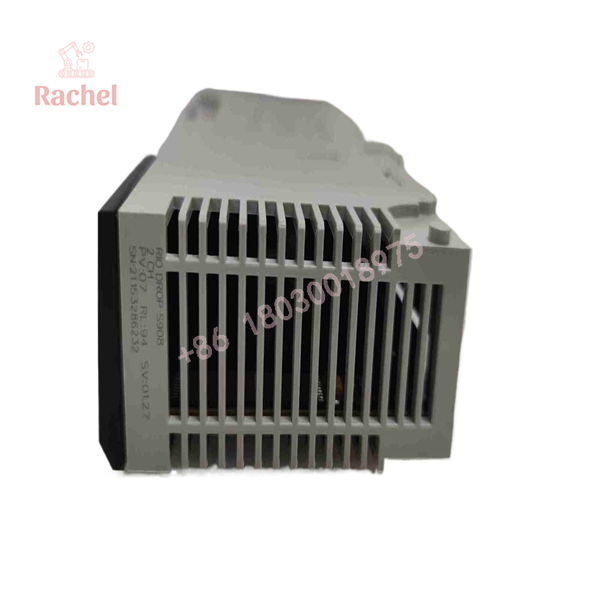

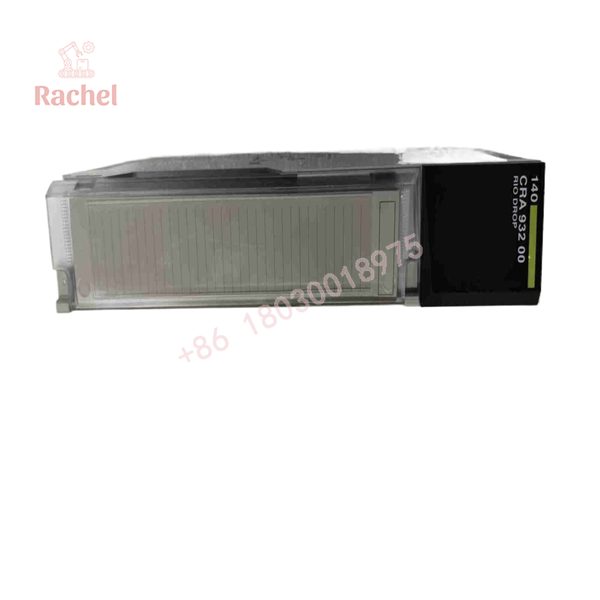

Schneider 140CRA93200 Quantum S908 RIO Drop Adapter

Description

Product Introduction & Engineering Value

The 140CRA93200 sits at the remote end of a legacy Quantum S908 Remote I/O architecture. Its job is not ordinary discrete or analog I/O processing; it provides the communication interface between the Quantum remote rack and the RIO network, making it a critical component in older distributed-control installations.

The two-channel configuration is particularly important in systems designed around redundant RIO cabling. When this adapter fails, the symptoms can appear as widespread I/O communication problems rather than a simple module fault, so accurate identification of the adapter and the associated cable topology matters during troubleshooting.



Technical Specifications

Specification	140CRA93200
Product Family	Modicon Quantum
Module Type	RIO drop adapter
RIO Channels	2
Cable	75 Ω coaxial
Transmission Rate	1.544 Mbps
Dynamic Range	35 dB
Coaxial Isolation	500 VDC, center conductor to ground
Maximum I/O Expansion Modules	27
Bus Current Requirement	750 mA
Power Dissipation	3.8 W
Operating Temperature	0 to 60°C
Storage Temperature	−40 to 85°C
Relative Humidity	Up to 95%, non-condensing
Module Format	Standard Quantum
Connection	2 female connectors with redundant cable

These values come from Schneider’s Quantum documentation and product data.

Network Architecture

The 140CRA93200 is the remote/drop-side counterpart to the Quantum RIO head-end architecture. Schneider’s catalog distinguishes the 140CRA93200 from the 140CRP93200, with the former installed at the remote drop and the latter serving as the local/head-end RIO module. Both support two communication channels and require 750 mA of bus current.

This distinction is important when ordering a replacement. 140CRA93200 and 140CRP93200 are not interchangeable simply because both have two RIO channels.



Field Application & “Trench” Experience

Field Scenario: Intermittent Remote I/O Loss

A plant has several Quantum remote racks distributed around a process unit. The control room begins receiving intermittent communication faults from one remote rack.

The first mistake would be to start replacing the rack’s analog and discrete I/O modules.

A better sequence is:

1. Confirm that the remote rack itself remains powered.
2. Check the 140CRA93200 status and startup diagnostics.
3. Inspect both RIO coaxial connections.
4. Check cable shielding, connectors, and termination.
5. Compare the affected channel against the redundant channel.
6. Inspect the remote rack configuration for the expected number of I/O modules.
7. Substitute a known-good 140CRA93200 if cable and power checks pass.
8. Verify stable RIO communications before returning the rack to normal service.

Schneider’s published specifications include startup diagnostics covering power-up/runtime operation, RAM address/data checks, and executive checksum verification.

Niche Applications

• Distributed process-control I/O racks using legacy Quantum S908 networking.
• Water and wastewater remote control panels where Quantum racks remain installed at geographically separated equipment.
• Power-generation auxiliary systems using redundant coaxial RIO networks.
• Brownfield process plants where replacing the entire Quantum/S908 infrastructure is not yet economically justified.

QA & Testing SOP

For a New Surplus or Refurbished 140CRA93200, the most useful test is a controlled Quantum RIO communication test.

Recommended inspection

① Identity

Verify the physical label:

• 140CRA93200
• Schneider Electric / Modicon branding
• Hardware/revision information
• Serial or traceability information

② Mechanical inspection

Inspect:

• RIO connectors
• Backplane connector
• Front-panel indicators
• Housing
• Mounting clips
• Evidence of corrosion or heat damage

③ Electrical inspection

Confirm that the module powers correctly from the Quantum rack and that current consumption is consistent with the expected 750 mA bus requirement.

④ Communication test

The preferred acceptance test is operation in a known-good Quantum rack with an S908 RIO network.

Verify:

• RIO channel communication
• Remote I/O recognition
• No recurring communication faults
• Correct I/O image transfer
• Stable operation under continuous cycling

⑤ Redundancy test

Where the installed architecture uses redundant RIO cabling, test both communication paths independently before accepting the replacement.

Procurement note: A seller’s statement that a module is “tested” is not enough for a high-criticality spare. Ask what rack, communication network, and load conditions were actually used during testing.



⚠️ Veteran’s Tech Trap Guide

⚠️ Trap #1 — Ordering the head-end module instead

The 140CRA93200 is the remote/drop adapter. The 140CRP93200 is the local/head-end RIO module. They occupy different positions in the architecture. Schneider’s catalog explicitly separates these two module types.

⚠️ Trap #2 — Assuming any Quantum network adapter will work

The 140CRA93200 is designed around the legacy S908 RIO architecture and 75 Ω coaxial cable. An Ethernet-based Quantum communication module is not a functional substitute merely because it also provides remote I/O communication.

⚠️ Trap #3 — Ignoring the redundant-cable configuration

The part description specifically identifies two connectors with redundant cable. If the plant’s architecture uses dual RIO channels, replacing it with a single-channel device changes the network topology and redundancy characteristics.

PRO TIP — Check the coaxial infrastructure before condemning the adapter

A failed 140CRA93200 and a degraded S908 cable can produce similar symptoms. Before replacing the module, inspect connectors, cable condition, shielding, termination, and the opposite end of the RIO segment.



Lifecycle & Replacement Strategy

The 140CRA93200 is firmly in legacy inventory territory.

Schneider’s U.S. product page identifies BMECRA31210, the Modicon X80 EIO drop adapter with Ethernet backplane, as the recommended replacement.

Lifecycle dates vary by Schneider market. Schneider’s current regional pages show the product as discontinued in several markets while maintaining an end-of-service date of December 31, 2030 in those listings. For example, Schneider Canada records discontinuation on August 8, 2025, while its UK page currently lists December 31, 2030 for discontinuation/end of standard service.

Spare-parts recommendation

For plants still operating S908 Quantum remote I/O:

• Keep at least one tested 140CRA93200 for every critical RIO architecture.
• Maintain separate inventory for 140CRA93100 single-channel and 140CRA93200 dual-channel adapters.
• Record whether each unit is New Surplus, Refurbished, or Used.
• Keep compatible S908 coaxial connectors and cabling available.
• Document every remote rack’s channel configuration.
• Preserve the Quantum application and RIO configuration backups.
• Begin evaluating an S908-to-Ethernet/X80 migration for long-life assets.

This is especially important because the recommended replacement changes the underlying communication architecture from legacy Quantum RIO to an Ethernet-based X80 EIO approach.



Dynamic FAQ

What is the Schneider 140CRA93200?

It is a Modicon Quantum RIO drop adapter used to connect a remote Quantum I/O rack to the S908 Remote I/O network. It provides two RIO communication channels for redundant-cable architectures.

What cable does the 140CRA93200 use?

The documented network interface uses 75 Ω coaxial cable. The specified transmission rate is approximately 1.544 Mbps.

How much bus current does it require?

The Quantum catalog specifies 750 mA for the two-channel 140CRA93200.

What replaces the 140CRA93200?

Schneider recommends the Modicon X80 BMECRA31210 EIO drop adapter with Ethernet backplane. This should be treated as an architectural migration rather than a simple plug-in replacement for an S908 RIO adapter.

Is New Surplus 140CRA93200 still worth buying?

Yes, if the plant still depends on Quantum S908 RIO. A tested original module can be valuable as a maintenance spare because migration to an Ethernet-based architecture requires engineering work. The key is to verify the actual part number, condition, authenticity, and functional test results.

What warranty should I expect?

Warranty coverage is supplier-specific for surplus and refurbished units. Do not assume Schneider’s original factory warranty applies to a secondary-market unit. Obtain the seller’s written warranty and test terms before purchase.



Bottom Line

Schneider Electric 140CRA93200 is a dual-channel Modicon Quantum S908 RIO drop adapter designed for redundant remote-I/O communication over 75 Ω coaxial cable. It supports up to 27 Quantum I/O expansion modules, operates at approximately 1.544 Mbps, and requires 750 mA of Quantum bus current.

For an operating Quantum/S908 plant, the 140CRA93200 remains a valuable legacy critical spare. For new system design, Schneider’s recommended path is the BMECRA31210 X80 Ethernet EIO drop adapter, so inventory planning should be combined with a controlled migration strategy.
